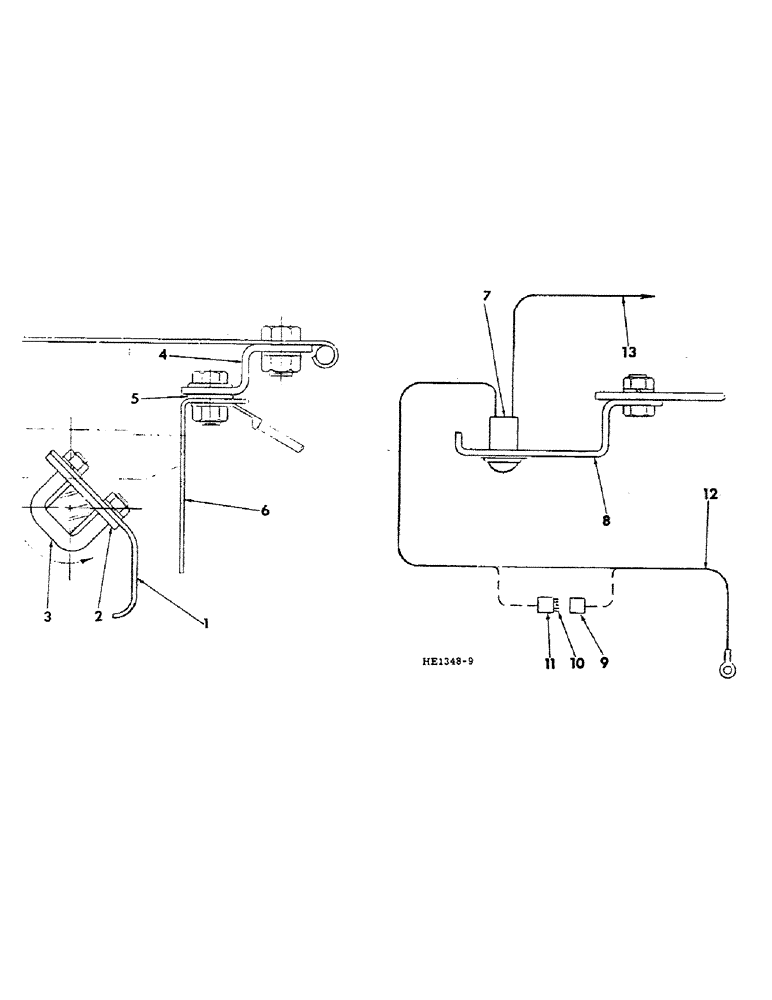

Запчасти Case IH 620 (A-56) - FEEDSHAFT ROTATION INDICATOR

1

816791C1

CLIP

indicator

1шт.

2

816792C1

STRAP

BAR, indicator u-bolt clamping

1шт.

3

11261R

U-BOLT

indicator clip on feedshaft

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

816789C1

BRACKET

indicator contact

1шт.

5

117960

GROMMET,5/16" ID x .719" x .188"

no. 4 rubber

2шт.

6

816790C1

ANGLE

indicator contact

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

7

676922R91

LAMP

LIGHT ASSY, indicator

1шт.

8

816788C1

PANEL

indicator light

1шт.

816848C1

PLUG

panel filler

5шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

9

405002C1

MULTIPOLE CONNECTOR,Male, 7 Pin

CONNECTOR, wire, for quick-disconnect

1шт.

10

892136C1

ELEC CONNECTOR,Female

CONNECTOR, wire, for quick-disconnect

1шт.

11

188395R1

WIRE CONNECTOR,Male

CONNECTOR, wire, for quick-disconnect

1шт.

12

WIRE, 18 ga drill contact (not serviced separately) for service order 1, 676922R91, lamp

1шт.

13

WIRE, 18 ga drill contact (not serviced separately) for service order 1, 676922R91, lamp

1шт.
