Запчасти Case IH 620 (A-52) - DOUBLE DISK FURROW OPENER, SEALED BALL BEARING STEEL BOOT TYPE, MACHINES 1975 SEASON AND SINCE

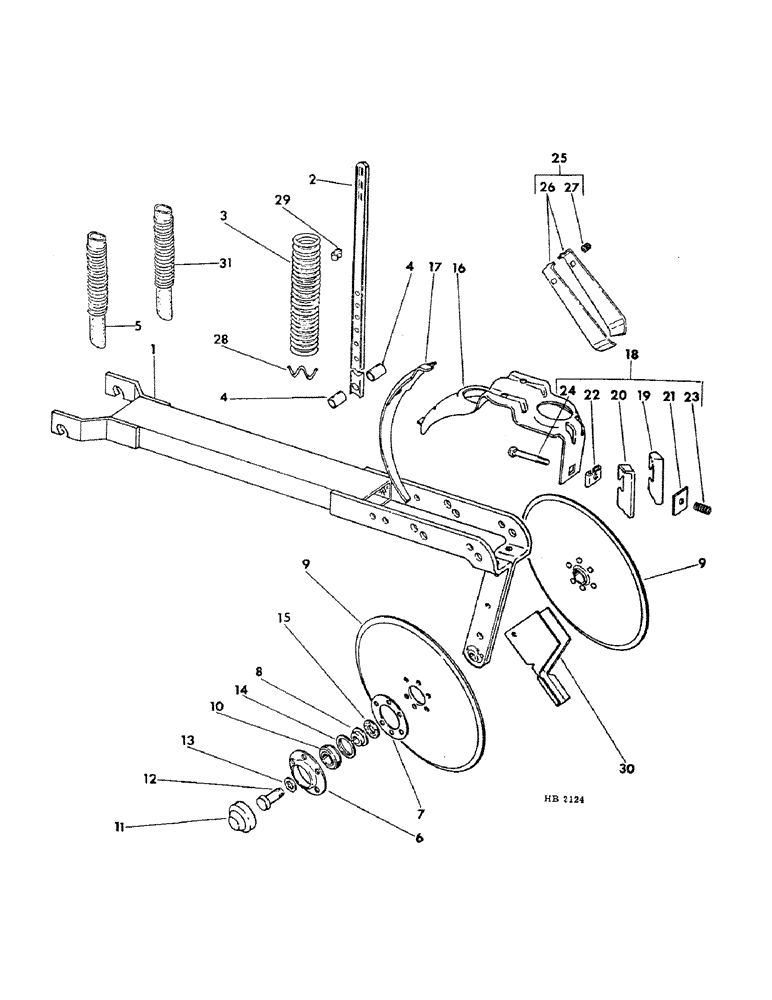

Схема запчастей Case IH 620 - (A-52) - DOUBLE DISK FURROW OPENER, SEALED BALL BEARING STEEL BOOT TYPE, MACHINES 1975 SEASON AND SINCE
11
18
13
5
15
29
9
30
31
9
20
12
4
17
10
3
1
26
8
4
2
14
6
24
7
21
23
16
22
25
28
27
19

Артикул

Название

Примечание

Количество

1

DRAWBAR ASSY, front rank, for service, order 1, 819820C1, drawbar assy, 1, 819280C2, boot and 1, 819281C2, guard

1шт.

1

819820C1

BAR

DRAWBAR ASSY, front furrow opener machines built 1977 & since

1шт.

1

DRAWBAR ASSY, rear rank, for service, order 1, 819821C1, drawbar assy, 1, 819280C2, boot and 1, 819281C2, guard

1шт.

1

819821C1

BAR

DRAWBAR ASSY, rear furrow opener machines built 1977 & since

1шт.

2

819352C1

BAR

pressure spring front

1шт.

2

819348C1

BAR

pressure spring rear

1шт.

J623

HEADED PIN,9.53mm OD x 88.9mm L

PIN, 3/8 x 3-1/2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

N42899

SPRING

pressure

1шт.

4

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

pressure bar

2шт.

5

819354C1

TUBE

grain

1шт.

6

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small b-hd

12шт.

7

602992R1

GASKET

paper

2шт.

8

602994R1

FLANGE

seal

2шт.

9

603013R2

PLOW DISC

BLADE, disk

2шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

disk

2шт.

11

603012R1

DUST CAP

CAP, dirt

2шт.

12

603010R1

BOLT (SPREADER)

BOLT, disk LH

1шт.

12

603011R1

BOLT (SPREADER)

BOLT, disk RH

1шт.

13

141707

WASHER,Int Tooth, 11/16"

11/16 internal-t-lk

2шт.

14

602988R1

SPACER

seal retainer

2шт.

15

464628R1

SEAL

dirt, replaces 602993R1

2шт.

16

819280C2

BOOT

double disk

1шт.

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 type D hex washer head tapping

2шт.

17

819281C2

GUARD ASSY.

GUARD, boot

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

819374C91

SCRAPER

ASSY, double disk inside, for service order 1, 819818R91, scraper assy, consists of (1) scraper 605974R1, (1) scraper 605975R1, (1) spreader N62538, (1) hinge N62537, (1) spring N62536, (1) bolt 18677R1, (1) nut 274881, (1) washer 134238R1

1шт.

18

819818C91

BLADE

SCRAPER ASSY, double disk inside machines built 1977 & since, consists of (1) scraper 816666C1, (1) scraper 816665C1, (1) spreader 816668C1, (1) hinge 819808C1, (1) spring N62536, (1) bolt 27445R1, (1) nut 274881

1шт.

19

605974R1

BLADE

SCRAPER, inside RH, machines, Serial Range: prior-1977

1шт.

19

816666C1

BLADE

SCRAPER, inside RH, machines built 1977 & since

1шт.

20

605975R1

BLADE

SCRAPER, inside LH, machines, Serial Range: prior-1977

1шт.

20

816665C1

BLADE

SCRAPER, inside LH, machines built 1977 & since

1шт.

21

N62538

KNIFE ASSY

SPREADER, inside scraper, machines, Serial Range: prior-1977

1шт.

21

816668C1

LEDGER PLATE

SPREADER, inside scraper, machines built 1977 & since

1шт.

22

N62537

HINGE

inside scraper, machines, Serial Range: prior-1977

1шт.

22

819808C1

HINGE

inside scraper, machines built 1977 & since

1шт.

23

N62536

VALVE SPRING

SPRING, inside scraper

1шт.

24

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16-18 x 2-1/2 type 1 crg, machines prior to 1977

1шт.

24

27445R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT, 5/16-18 x 2-3/4 carriage machines built 1977 & since

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 hex lock

1шт.

25

819373C1

PACKAGE

double disk outside scraper

1шт.

26

SCRAPER, double disk outside (not serviced separately) for service order 1, 819373C1, package

1шт.

27

SPRING, double disk outside scraper (not serviced separately) for service order 1, 819373C1, package

1шт.

28

F6366

LOCK

pressure spring

1шт.

29

605964R1

CLIP

special flat cotter

1шт.

30

819208C1

DEFLECTOR

fertilizer, special, for use when machine equipped w/separate delivery fertilizer tube, 819353C2

1шт.

Q3512

HEADED PIN,1/4" x .859"

PIN, 1/4 x 1 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

31

819353C2

TUBE

separate delivery

1шт.

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL, w/hub and bearing, consists of (1) retainer 602989R1, (1) gasket 602992R1, (1) flange 602994R1, (1) blade 603013R2, (6) rivet 104081, (1) bearing 465004R91

2шт.

819993C91

PACKAGE

1шт.

PACKAGE, double disk furrow opener frt, consists of (1) drawbar 819820C1, (1) bar 819352C1, (1) pin J623, (1) pin 103384, (2) spacer 364811R1, (1) boot 819280C2, (2) screw 27568R1, (1) guard 819281C2, (1) scraper 816665C1, (1) scraper 816666C1, (1) spreader 816668C1, (1) hinge 819808C1, (1) spring N62536, (1) bolt 27445R1, (1) nut 274881, (1) tube 819354C1

1шт.

819994C91

PACKAGE

1шт.

PACKAGE, double disk furrow opener, rear, consists of (1) drawbar 819821C1, (1) bar 819348C1, (1) pin J623, (1) pin 103384, (2) spacer 364811R1, (1) boot 819280C2, (2) screw 27569R1, (1) guard 819281C2, (1) scraper 816665C1, (1) scraper 816666C1, (1) spreader 816668C1, (1) hinge 819808C1, (1) spring N62536, (1) bolt 27445R1, (1) nut 274881, (1) tube 819354C1

1шт.

Выбрано товаров: 57
