Запчасти Case IH 620 (A-49) - DEPTH BAND

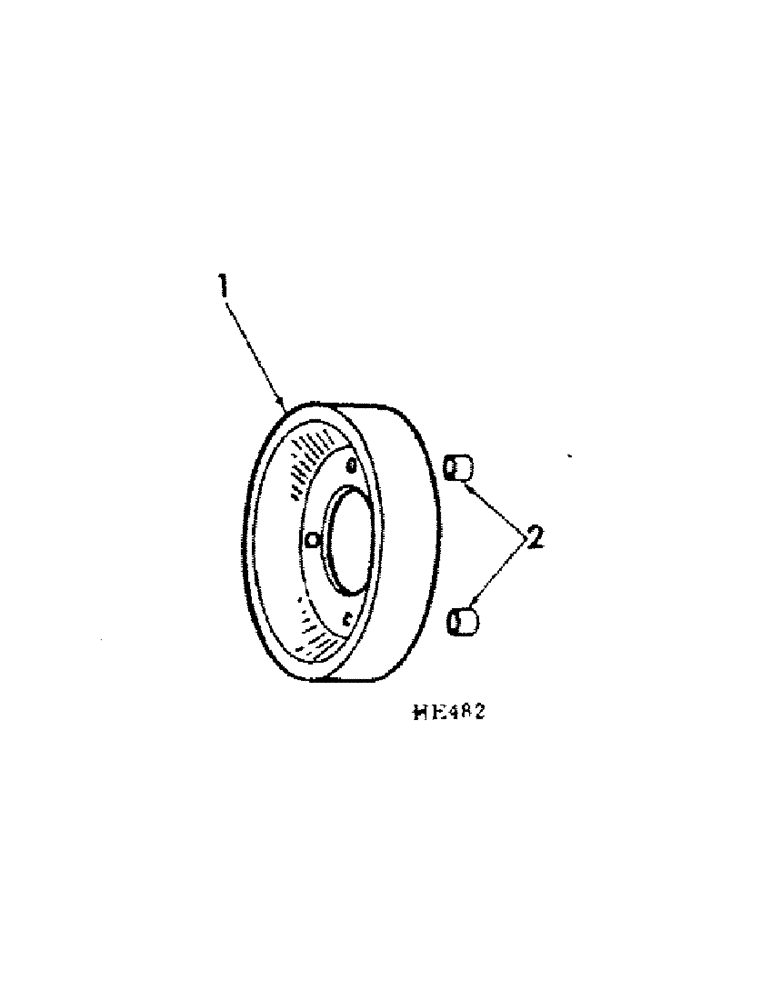

Схема запчастей Case IH 620 - (A-49) - DEPTH BAND
1
2

Артикул

Название

Примечание

Количество

1

461915R1

DRUM

BAND, 11-3/8 inch depth band, for 1-1/4 inch penetration

1шт.

1

524670R1

DRUM

BAND, 9-7/8 inch depth band, for 2 inch penetration

1шт.

1

524671R1

DRUM

BAND, 8-3/8 inch depth band, for 2-3/4 inch penetration

1шт.

1

493540R2

DRUM

BAND, 10-1/2 inch dia depth, for 1-3/4 inch penetration

1шт.

1

542555R2

DRUM

BAND, 11 inch dia depth, for 1-1/2 inch penetration

1шт.

2

525820R1

SPACER,3/8" Pipe x .469"

depth band

2шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

.344 x .750 x .054

2шт.

Выбрано товаров: 10
