Запчасти Case IH 620 (A-46) - SINGLE DISK FURROW OPENERS, SEALED BALL BEARING CAST BOOT TYPE, FOR USE ON 16 X 8 SIZE DRILL ONLY

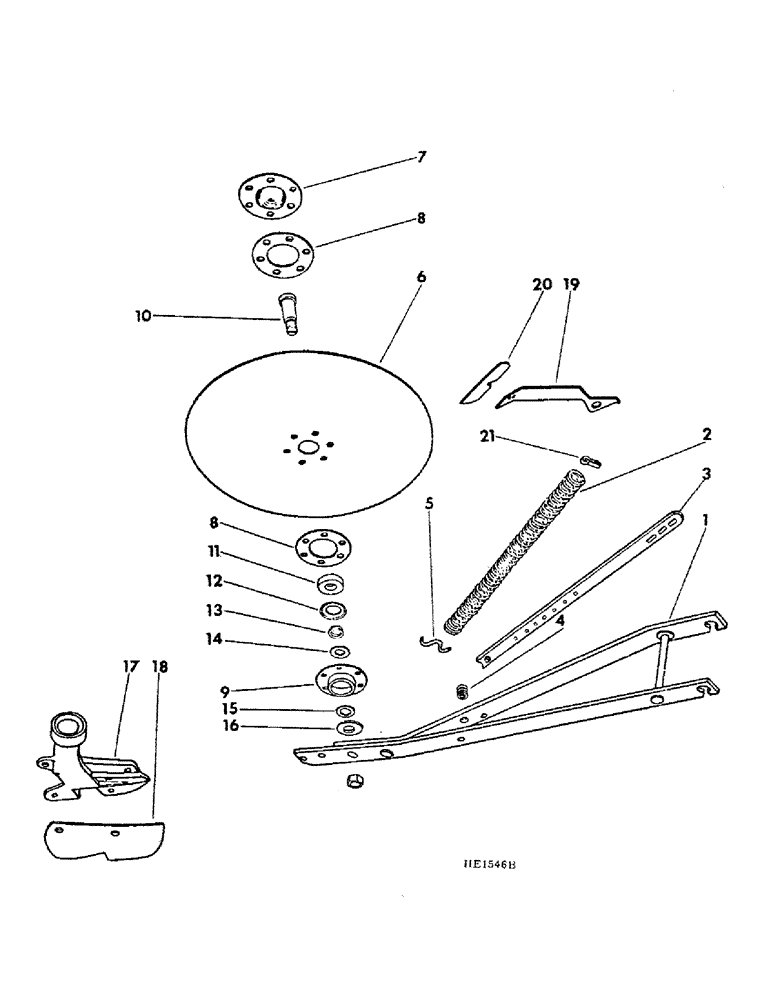

Схема запчастей Case IH 620 - (A-46) - SINGLE DISK FURROW OPENERS, SEALED BALL BEARING CAST BOOT TYPE, FOR USE ON 16 X 8 SIZE DRILL ONLY
16
13
21
17
11
2
8
14
3
18
15
8
5
20
12
7
9
10
19
1
6

Артикул

Название

Примечание

Количество

1

819114C91

BAR

DRAWBAR ASSY, front furrow opener

1шт.

1

819115C91

BAR

DRAWBAR ASSY, front RH furrow opener

1шт.

1

819112C91

BAR

DRAWBAR ASSY, rear LH furrow opener

1шт.

1

819113C91

BAR

DRAWBAR ASSY, rear RH furrow opener, drawbars include 1, 106930, rivet

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd

1шт.

2

6638

SPRING

pressure

1шт.

3

819091C1

BAR

pressure spring front

1шт.

3

819092C1

BAR

pressure spring rear

1шт.

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

PIN, 3/8 x 3 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

N32176

SPRING

pressure bar location

1шт.

5

F6366

LOCK

pressure spring

1шт.

6

603004R2

PLOW DISC

DISK, furrow opener single

1шт.

7

602990R1

CAP

disk

1шт.

8

602992R1

GASKET

bearing retainer

2шт.

9

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small solid

6шт.

10

602987R1

BOLT

BOLT, disk

1шт.

121358

YOKE

5/8-18 hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

12

602994R1

FLANGE

seal

1шт.

13

464628R1

SEAL

dirt, replaces 602993R1

1шт.

14

602988R1

SPACER

seal retainer

1шт.

15

591714R1

WASHER

.718 x 1.250 x .054 flat

1шт.

16

21712R1

WASHER

.718 x 1.500 x .105 flat

1шт.

17

606156R93

BOOT

ASSY, deep seeding landside LH, includes 1, 606154R1, landside and 2, 106913, rivet

1шт.

17

606157R93

BOOT

ASSY, deep seeding landside RH, includes 1, 606155R1, landside and 2, 106913, rivet

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

606154R1

LANDSIDE

deep seeding notched LH

1шт.

18

6006155R1

LANDSIDE, deep seeding notched RH, for use with cast boot only

1шт.

106913

RIVET,Truss Hd, 5/16" x 5/8"

5/16 x 5/8 truss-hd

4шт.

19

603620R11

BLADE

SCRAPER ASSY, single disk LH

1шт.

19

603621R11

PACKAGE

SCRAPER ASSY, single disk RH, includes 1, W7008, blade and 2, 106883, rivet

1шт.

20

W7008

BLADE

disk scraper

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

21

605964R1

CLIP

special flat cotter, 1 used per pressure spring bar

1шт.

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL, single, consists of (1) disk 603004R1, (1) cap 602990R1, (2) gasket 602992R1, (1) retainer 602989R1, (6) rivet 104081, (1) bolt 602987R1, (1) nut 121358, (1) washer 121574, (1) bearing 465004R91, (1) flange 602994R1

1шт.

Выбрано товаров: 40
