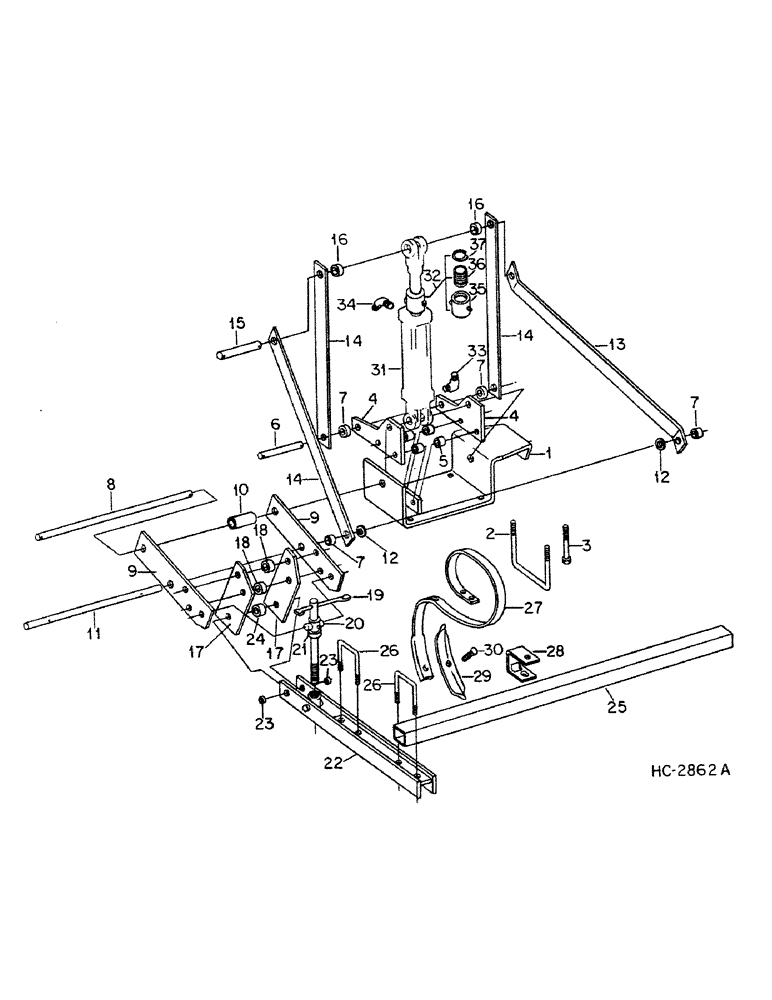

Запчасти Case IH 620 (A-44) - TRACK ERASER, USE WITH HEAVY DUTY MULTIPLE DRILL HITCH, LEFT SIDE SHOWN, RIGHT SIDE OPPOSITE

1

817723C1

SUPPORT

ASSY, cylinder anchor

2шт.

2

817740C1

U-BOLT

support, for use w/two & three drill hitch

4шт.

3

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4.50 hex-hd C-Z PLTD, for use w/four drill hitch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

817726C1

SUPPORT

cylinder

4шт.

5

817749C1

SPACER

cylinder support

8шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

817753C1

PIN

cylinder support lower

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

7

817734C1

SPACER

8шт.

8

817736C1

ROD

cylinder anchor

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

614451R1

WASHER

1.031 x 1.750 x .105

4шт.

9

817737C1

BAR

levelling adjustment

8шт.

10

817755C1

SPACER

bar

4шт.

11

817725C1

ROD

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

12

614451R1

WASHER

1.031 x 1.750 x .105

4шт.

13

817751C1

SUPPORT

cylinder mast

2шт.

14

817745C1

BAR

cylinder mast

6шт.

15

817735C1

PIN

cylinder support upper

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

16

817752C1

SPACER

4шт.

17

817722C1

BAR

tine pivot bolt

8шт.

18

817749C1

SPACER

tine pivot bolt bar

8шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

591620R11

SCREW

ASSY, tine levelling

4шт.

20

SA1658

ADJUSTMENT SCREW

TRUNNION, levelling screw

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

21

590303R1

COLLAR CLAMP

COLLAR, levelling screw

4шт.

1380S

PIN

5/16 x 1-3/4 std-hd-dld

4шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

4шт.

22

817721C1

SUPPORT

ASSY, tine tube

4шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

4шт.

23

817747C1

SPACER

tine support pivot

8шт.

24

817749C1

SPACER

tine pivot bolt bar

4шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

.656 x 1.500 x .105

8шт.

25

817746C1

TUBE

tine support

4шт.

26

817754C1

BOLT,U, 1/2" - 13 x 90 mm

U-BOLT, tine support tube

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

27

734553R2

TINE

SHANK, tine, use 12 for 9 in spacing & 16 for 6 in spacing

1шт.

28

100275C1

CLAMP

shank, 1 per shank

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd, 1 per clamp

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

29

811191C1

POINT

1-3/8 in reversible chisel, 1 per shank

1шт.

30

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

BOLT ASSY, tool mounting, 1 per shank

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

21403R1

WASHER

.406 x 1.000 x .120, 1 per bolt

1шт.

31

844025C92

CYLINDER

ASSY, hydraulic, for components refer to CYL-1 parts catalog

2шт.

31

844042C91

PACKAGE

KIT, o-ring and seal service

1шт.

32

844098C91

COLLAR

ASSY, stroke control, consists of ref. nos. 35, 36 and 37

2шт.

33

817762C1

ELBOW

ASSY, flow restrictor

2шт.

34

310254C1

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

37 deg flared tube 45 deg red

2шт.

35

844034C1

NO LONGER SERVICED

COLLAR

1шт.

36

844037C1

SLEEVE

1шт.

37

844041C1

RETAINER

1шт.
