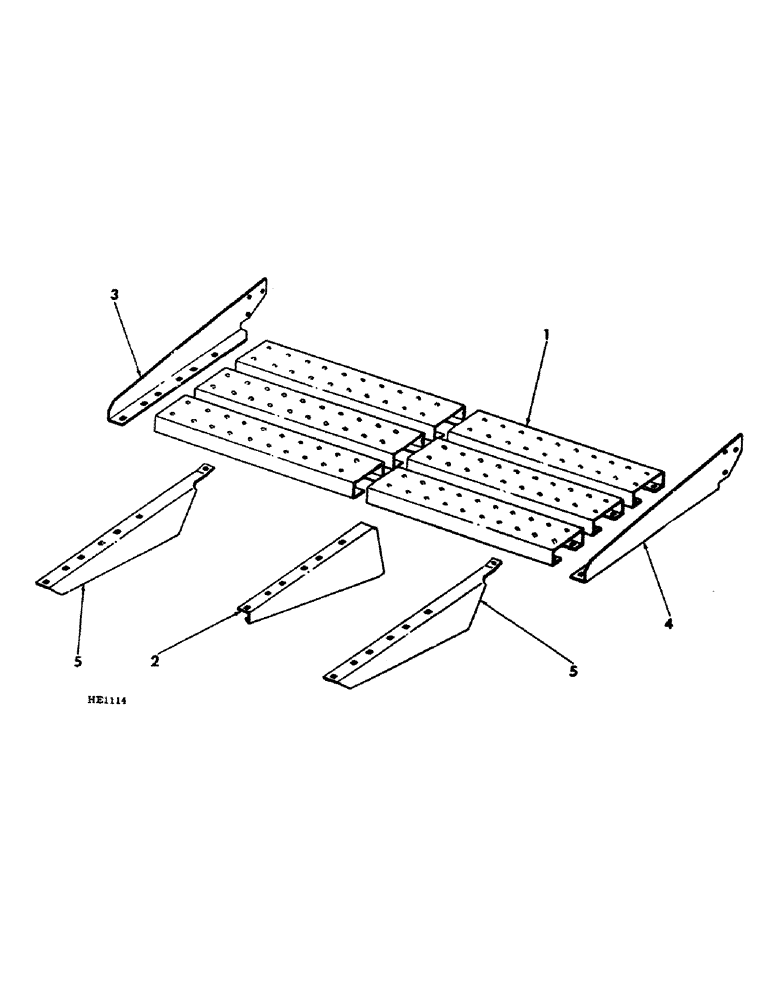

Запчасти Case IH 620 (A-04) - FOOTBOARD AND SUPPORTS

1

815972C1

ASSEMBLY

SECTION, footboard, 14 x 6

3шт.

1

815973C2

ASSEMBLY

SECTION, footboard, 16 x 6 and 14 x 7

3шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 carr.

18шт.

120376

NUT,5/16"-18, G5

18шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

1

815106C1

SUPPORT

SECTION, footboard, 20 x 6 and 16 x 8

3шт.

1

815107C1

SUPPORT

SECTION, footboard, 24 x 6 and 20 x 7

3шт.

1

815975C1

ASSEMBLY

SECTION, footboard, 28 x 6 and 24 x 7

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 carr.

24шт.

120376

NUT,5/16"-18, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

2

815976C1

SUPPORT

footboard centre, 14 x 6, 16 x 6 and 14 x 7

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

815978C1

SUPPORT

footboard outer LH

1шт.

4

815979C1

SUPPORT

footboard outer RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

1200382

WASHER, 3/8 lock

6шт.

5

815977C1

SUPPORT

footboard intermediate, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
