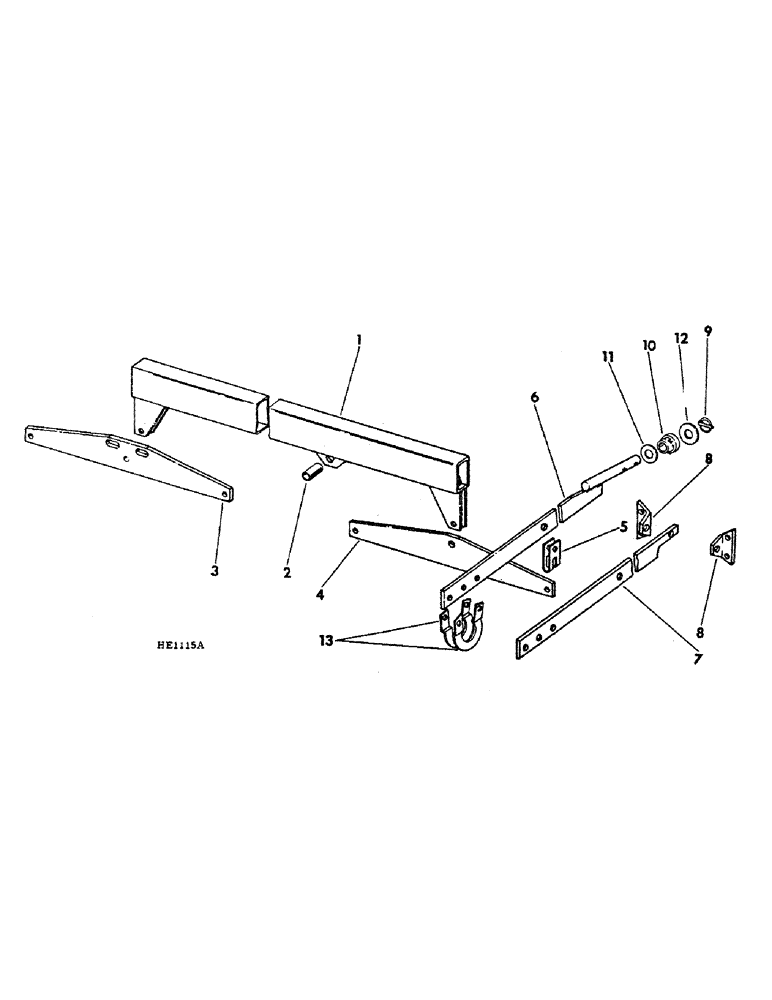

Запчасти Case IH 620 (A-42) - PRESS WHEEL GANG REAR SUSPENSION, 20 X 6, 24 X 6, 20 X 7, 24 X 7 AND 16 X 8

1

816163C1

TUBE

ASSY, equalizer, 20 x 6 & 16 x 8

2шт.

1

816164C1

TUBE

ASSY, equalizer, 24 x 6

2шт.

1

816165C1

TUBE

ASSY, equalizer, 20 x 7

1шт.

1

816166C1

TUBE

ASSY, equalizer, 28 x 6 & 24 x &

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 x 4 hex-hd , Corse threads

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

111892H

SPACER,3/4" Pipe x 2 1/8"

equalizer tube pivot

2шт.

3

816177C1

BAR

centre evener, 20 x 6

1шт.

3

816178C1

BAR

centre evener, 24 x 6

1шт.

3

816179C1

BAR

centre evener, 20 x 7

1шт.

3

816180C1

BAR

centre evener, 24 x 7

1шт.

3

816898C1

BAR

centre evener, 28 x 6

1шт.

3

819088C1

BAR

centre evener, 16 x 8

1шт.

4

816181C1

BAR

outer evener, 20 x 6

2шт.

4

816182C1

BAR

outer evener, 24 x 6

2шт.

4

816183C1

BAR

outer evener, 20 x 7

2шт.

4

816184C1

BAR

outer evener, 24 x 7

2шт.

4

816899C1

BAR

outer evener, 28 x 6

1шт.

4

819116C1

BAR

outer evener, 16 x 8

2шт.

23237R1

HEADED PIN,3/4" x 1 3/4"

PIN, 3/4 x 1-3/4 std-hd-dld

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

178375R1

WASHER

.781 x 1.250 x .056

4шт.

5

816185C1

CLEVIS

drawbar, machines built prior to April 1975

6шт.

21573R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 std-hd-dld

6шт.

178374R1

WASHER

.531 x 1.250 x .054

12шт.

540719R1

PIN

5/8 x 1-3/8 std-hd-dld

6шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

12шт.

5

819143C1

CLEVIS

drawbar, machines built April 1975 & since

6шт.

21899R1

HEADED PIN

PIN, 1/2 x 2-1/2 std-hd-dld C-Z

6шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

6шт.

178374R1

WASHER

.531 x 1.250 x .054

12шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN, 5/8 x 1-39/64 clevis

6шт.

464623R1

WASHER

.656 x 1.500 x .105

6шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

6шт.

6

816677C1

DRAWBAR, press wheel, machines built prior to April 1975

6шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

6шт.

7

819142C1

BAR

DRAWBAR, press wheel, machines built April 1975 & since

6шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd-dld, 6, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7, 4, 16 x 8

6шт.

3102

HEADED PIN,5/8" x 3 1/2"

PIN, 5/8 x 3-1/2 std-hd-dld 2, 16 x 8

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1 per pin 3/16" x 1 1/2"

1шт.

464623R1

WASHER

.656 x 1.500 x .105, 1 per pin

1шт.

8

819141C1

ANGLE

gang drawbar support, machines built April 1975 & since

12шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

9

385159R91

PIN

drawbar klik, machines built prior to April 1975

6шт.

10

816187C1

BUSHING

drawbar, machines built prior to April 1975

6шт.

11

20802R1

WASHER

inside rubber bushing, machines built prior to April 1975

6шт.

12

617511R1

SPRING WASHER

outside rubber bushing, machines built prior to April 1975

6шт.

13

603961R1

HANGER

gang drawbar, machines built prior to April 1975

12шт.

180146

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

7/16-14 x 1-1/2 hex-hd

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex.

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.
