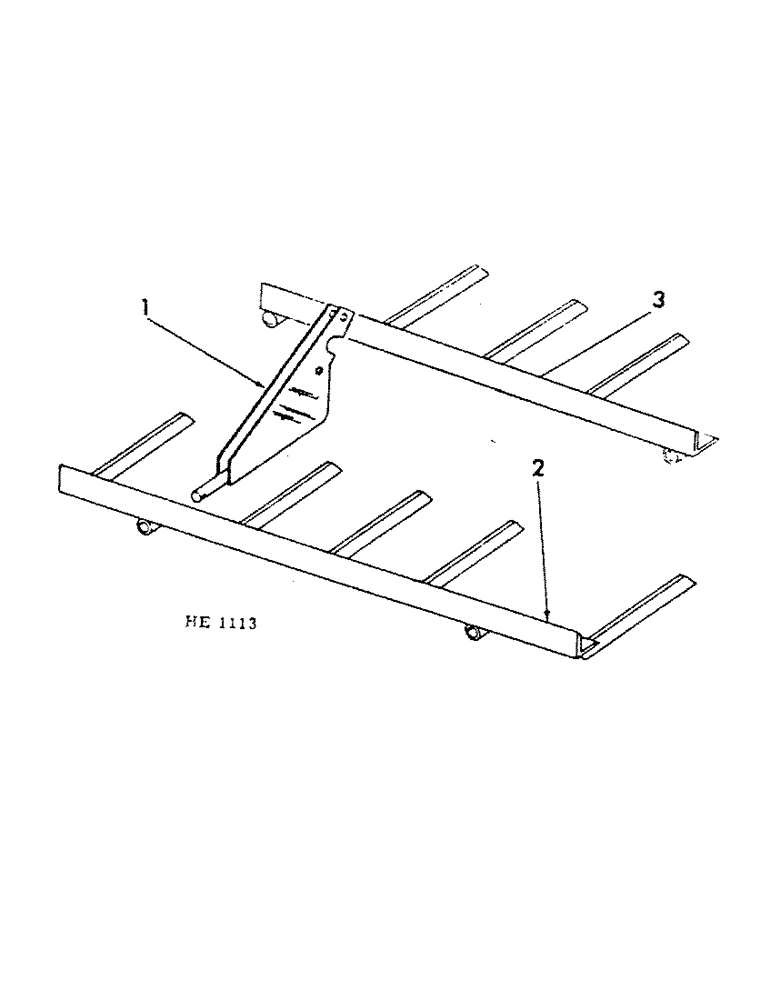

Запчасти Case IH 620 (A-41) - PRESS WHEEL STONE KICKER

1

816620C1

SUPPORT

ASSY, stone kicker frame, 4 used 14 x 6, 16 x 6 and 14 x 7, 6 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd, 2 bolts used per support

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 hex flg lock, 1 per bolt

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga, 1 used per support

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , Self-opening, 1 used per support 1/4" x 1 1/4"

1шт.

2

816624C1

FRAME

ASSY, kicker, 14 x 6

2шт.

2

816625C1

FRAME

ASSY, kicker, 16 x 6, 3, 24 x 6

2шт.

2

816626C1

FRAME

ASSY, kicker, 20 x 6

2шт.

2

816631C1

FRAME

ASSY, kicker, 24 x 7

3шт.

2

816628C1

FRAME

ASSY, kicker, 14 x 7

2шт.

2

816629C1

FRAME

ASSY, outer kicker, 20 x 7

2шт.

2

816915C1

FRAME

ASSY, outer kicker, 28 x 6

2шт.

2

819130C1

FRAME

ASSY, outer kicker, 16 x 8

2шт.

3

816627C1

FRAME

ASSY, kicker centre, 20 x 6

1шт.

3

816630C1

FRAME

ASSY, kicker centre, 20 x 7

1шт.

3

816914C1

FRAME

ASSY, centre kicker, 28 x 6

1шт.

3

819138C1

FRAME

ASSY, centre kicker, 16 x 8

1шт.
