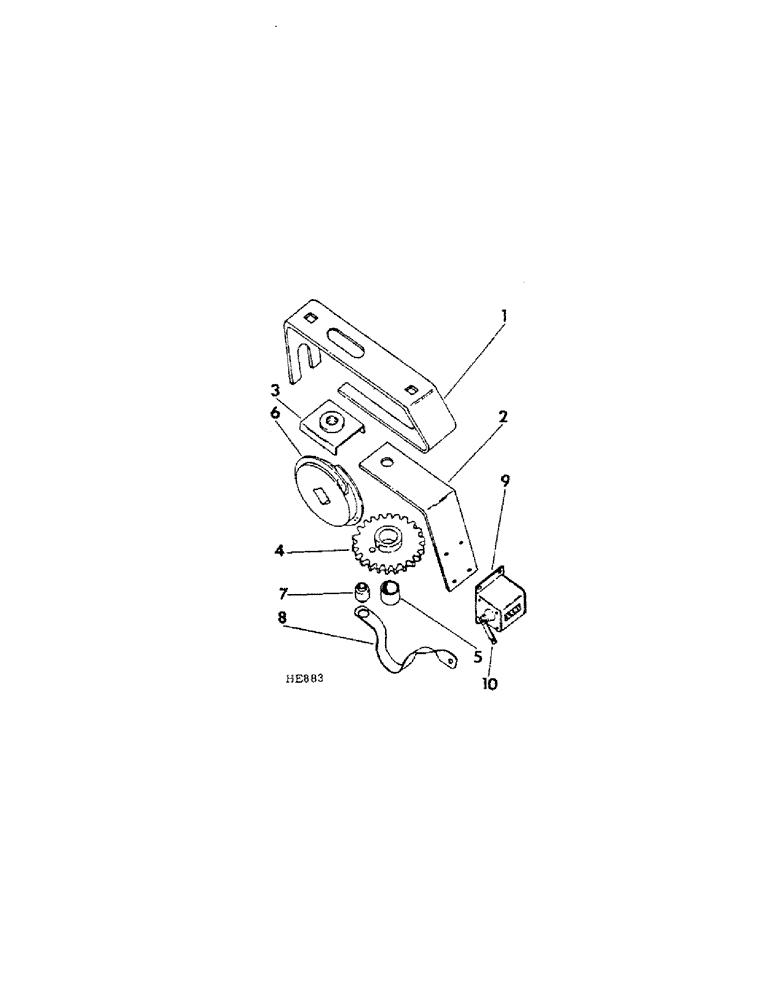

Запчасти Case IH 620 (A-39) - ACREAGE COUNTER, MACHINES BUILT PRIOR TO 1973 SEASON

1

596933R1

BRACKET

counter gear worm

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

599560R1

BRACKET

SUPPORT, counter

1шт.

3

596936R1

SUPPORT

ASSY, counter gear

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

611346R1

WASHER

.406 x .875 x .054

1шт.

4

815185C1

GEAR

34T counter, 24 x 7

1шт.

4

816097C1

GEAR, 33T counter, 14 x 6

1шт.

4

816098C1

GEAR

29T counter, 16 x 6 and 14 x 7

1шт.

4

816099C1

GEAR

22T counter, 20 x 6

1шт.

4

816100C1

GEAR

39T counter, 24 x 6 and 20 x 7

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

611346R1

WASHER

.406 x .875 x .054

1шт.

5

599705R1

SPACER

gear

1шт.

6

604420R1

GEAR

acreage counter worm

1шт.

7

609534R2

SPACER

counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

10-24 x 1-1/4 sltd-rd-hd-mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

607893R1

WASHER

.203 x .500 x .054

1шт.

8

598970R1

SPRING

counter

1шт.

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

1шт.

9

609535R91

COUNTER

acreage, includes 1, 816878C1, arm assy

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

1/8 x 7/16 sm-b-hd brass

4шт.

10

816878C1

ARM

ASSY, counter w/screw

1шт.
