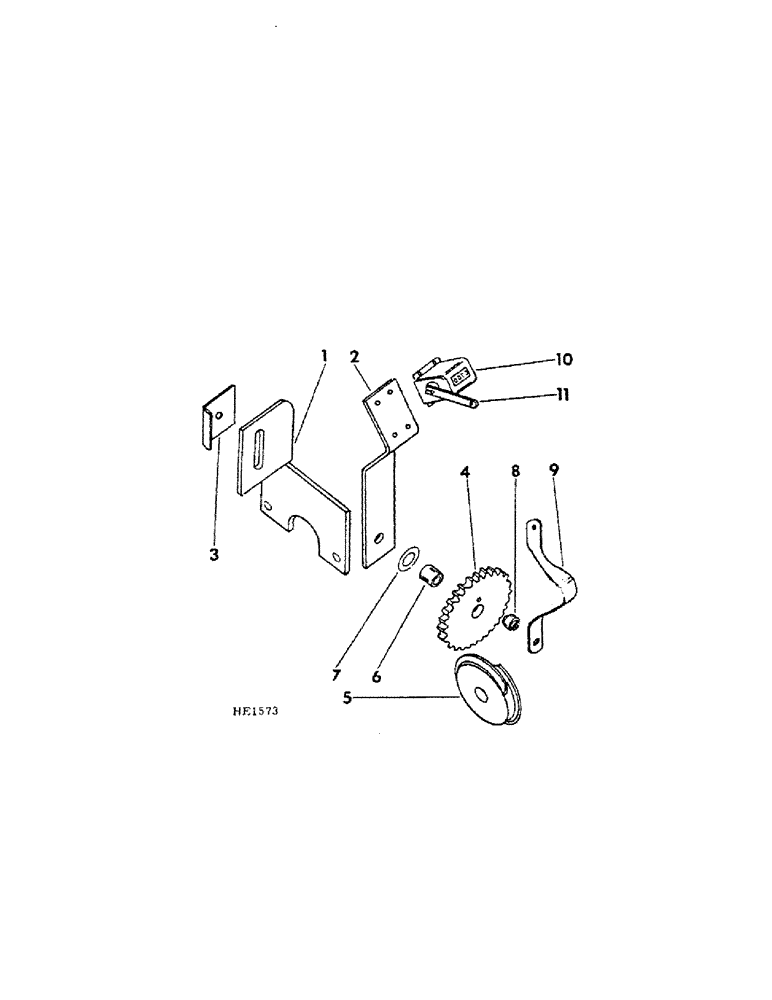

Запчасти Case IH 620 (A-39[1]) - DIGITAL LAND MEASURE, MACHINES BUILT 1973 SEASON AND SINCE

1

818048C1

SUPPORT

acreage counter gear

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

818047C1

SUPPORT

counter

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

611346R1

WASHER

.406 x .875 x .054

1шт.

3

818045C1

SUPPORT

ASSY, counter gear

1шт.

4

815182C1

GEAR

24T counter, 28 x 6 and 24 x 7

1шт.

4

818049C1

GEAR

46T counter, 14 x 6

1шт.

4

815186C1

GEAR

41T counter, 16 x 6 and 14 x 7

1шт.

4

815184C1

GEAR

30T counter, 20 x 6 and 16 x 8

1шт.

4

596941R1

GEAR

28T counter, 24 x 6 and 20 x 7

1шт.

5

818050C1

GEAR

acreage counter worm

1шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

209381H1

SPACER

gear

1шт.

7

178375R1

WASHER

.781 x 1.250 x .056

1шт.

8

609534R2

SPACER

counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

10-24 x 1-1/4 sltd-rd-hd-mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

607893R1

WASHER

.2-3 x .500 x .054

1шт.

9

598970R1

SPRING

counter

1шт.

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

1шт.

10

609535R91

COUNTER

acreage, includes 1, 816878C1, arm assy

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

1/8 x 7/16 sm-b-hd brass

4шт.

11

816878C1

ARM

ASSY, counter w/screw

1шт.
