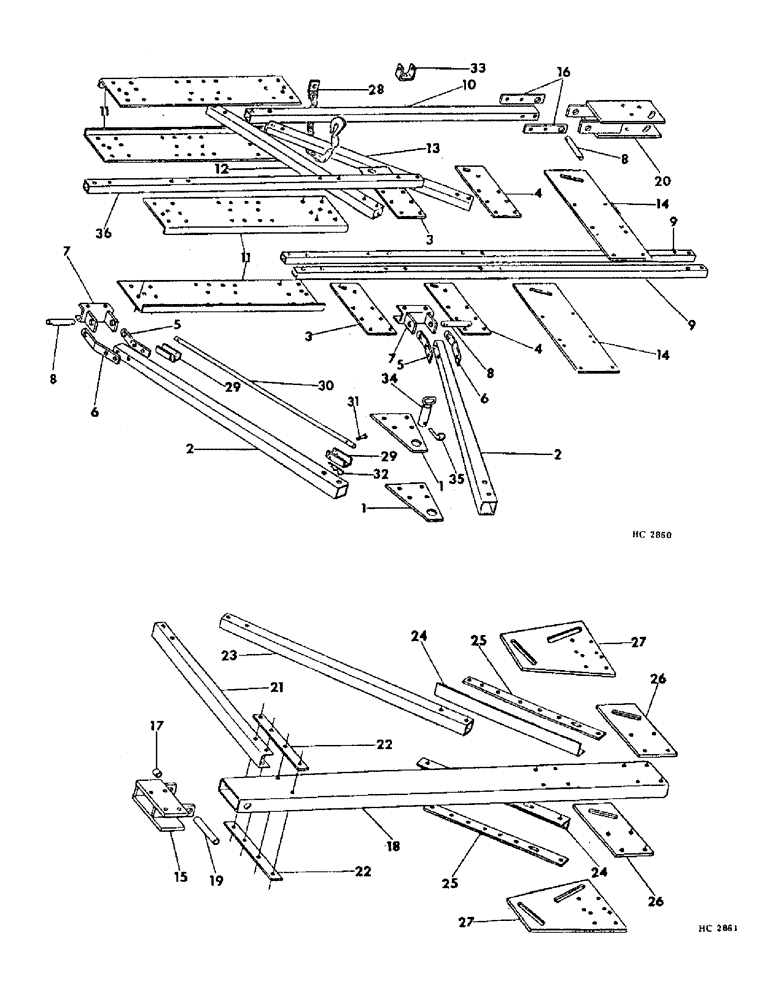

Запчасти Case IH 620 (A-36) - FOUR DRILL HEAVY DUTY HITCH

1

819892C1

PLATE

hitch

2шт.

2

819684C1

TUBE,2245 mm Length

hitch

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4-1/2 hex hd

7шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

3

819876C2

BAR

hitch tube & brace

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

4

819876C2

BAR

hitch tube & brace, used on 24 x 7 & 28 x 6

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

5

819894C1

SUPPORT

hitch tube inner

2шт.

6

819895C1

SUPPORT

hitch tube outer

2шт.

7

819770C1

PIVOT

ASSY, hitch tube

2шт.

8

819724C1

PIN

wing rear pivot

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

8шт.

21226R1

WASHER

1.281 x 2.000 x .105

6шт.

9

819874C2

TUBE

hitch main frame front, 4 used on 24 x 6, 20 x 7, 28 x 6, & 24 x 7

1шт.

9

819683C1

TUBE,2245 mm Length

hitch main frame front, 4 used on 20 x 6, 16 x 8 & 16 x 6

4шт.

10

819884C1

TUBE

hitch main frame rear, 2 used on 24 x 6, 20 x 7, 28 x 6 & 24 x 7

1шт.

10

819684C1

TUBE,2245 mm Length

hitch main frame rear, 2 used on 20 x 6, 16 x 8 & 16 x 6

1шт.

11

819879C2

SUPPORT

extension

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

12шт.

12

819883C1

TUBE,101.5" Length

cross brace

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

13

819882C2

TUBE,2171.7 mm Length

cross brace, 28 x 6 & 24 x 7

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 he-xhd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

14

819878C2

BAR

basic hitch tie centre drills

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.

15

819889C1

PIVOT

ASSY, outer drill frame

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.

16

819891C1

BAR

frame connecting

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

17

819782C1

SPACER

pivot

2шт.

18

819660C2

TUBE

wing front, 24 x 6, 28 x 6, 20 x 7 and 24 x 7, for service replacement, order tube assy, 1279424C1 and spacer, 129421C1

2шт.

18

819800C3

TUBE

wing front, 20 x 6, 16 x 8, and 16 x 6, for service replacement, order tube assy, 1279423C1 and spacer, 1279421C1

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4-10 x 7-1/2 hex-hd

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

.781 x 1.750 x .105

4шт.

280954

NUT,3/4"-10, G5

2шт.

19

819781C1

SPACER

pivot

2шт.

20

819656C2

SUPPORT

ASSY, wing rear

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21

819662C1

CHANNEL

wing side

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

22

819664C1

BAR

side channel connecting

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

23

819661C2

TUBE,101.5" Length

wing diagonal, 24 x 6, 28 x 6, 20 x 7 and 24 x 7

2шт.

23

819798C3

TUBE

wing diagonal, 20 x 6, 16 x 8, and 16 x 6

2шт.

24

819663C1

ANGLE

diagonal tube tie, 24 x 6, 28 x 6, 20 x 7 and 24 x 7, for service replacement of angle, 819663C1, order two angles, 1279410C1

4шт.

25

819799C3

BAR

diagonal tube tie, 20 x 6, 16 x 8 and 16 x 6, for service replacement of bar, 819799C3, order tow bars, 1279411C1

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

26

819019C1

BAR

basic hitch tie, wing front used on left, shown

2шт.

27

819772C2

PLATE

basic hitch tie, wing rear drill used on right

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

8шт.

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

7/8-9 x 4-3/4 hex-hd-dld

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 hex sltd

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

495-11094

WASHER,7/8", SAE

.938 x 1.750 x .108

12шт.

28

819901C2

CHAIN (AG)

CHAIN ASSY, frame support

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

29

819018C2

CHANNEL

transport tube support

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

819022C1

TUBE

hitch transport support

1шт.

31

Q595

PIN,3/8" x 3 1/4"

3/8 x 3-1/4 std-hd-dld

3шт.

32

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, qa cotter

3шт.

33

819010C1

YOKE

tube support

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

34

817771C1

PIN

ASSY, hitch

1шт.

35

810030C1

PIN

lock

1шт.

36

818118C2

TUBE,2021 mm Length

centre reinforcing

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.
