Запчасти Case IH 620 (A-34) - THREE DRILL HEAVY DUTY TRACTOR HITCH

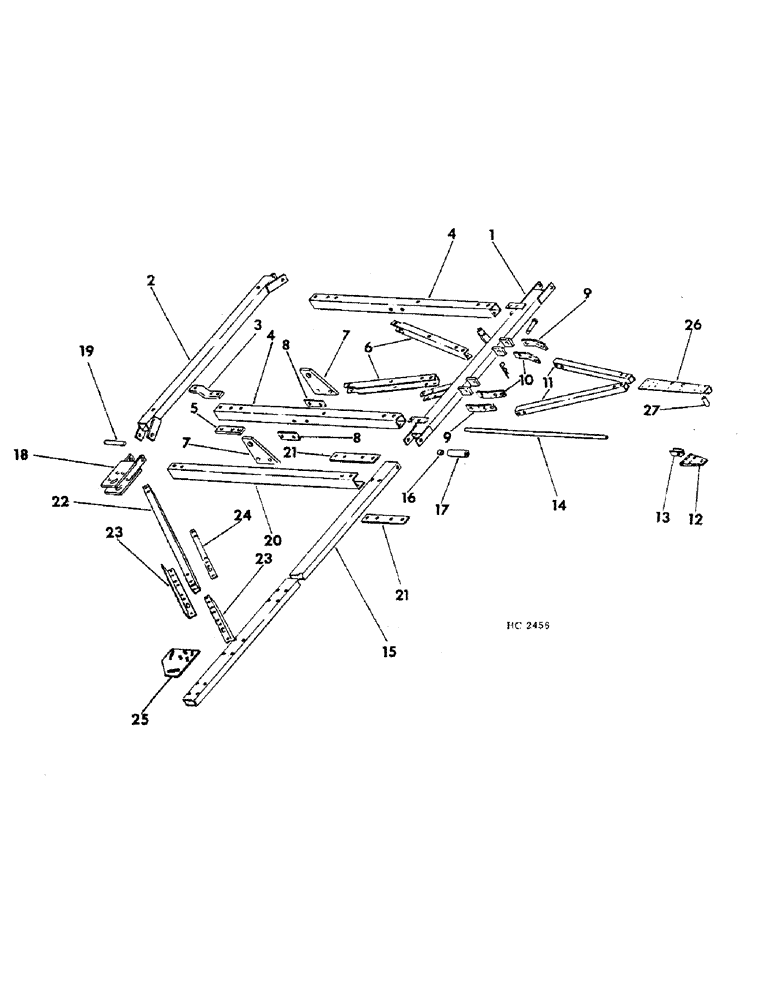

Схема запчастей Case IH 620 - (A-34) - THREE DRILL HEAVY DUTY TRACTOR HITCH
7
24
10
19
9
4
22
3
23
7
12
26
23
9
27
25
16
8
18
21
11
8
13
14
15
2
6
4
17
1
5
20
21

Артикул

Название

Примечание

Количество

1

819636C1

BEAM

ASSY, centre front

1шт.

2

819783C1

BEAM

ASSY, centre rear

1шт.

3

819792C1

SUPPORT

side tube

2шт.

4

819637C4

TUBE,1872, 31.75 mm Length

centre side

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

8шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8-11 x 6-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

2шт.

5

819793C1

BAR

centre side tube reinforcing

2шт.

6

819640C3

CHANNEL

front corner

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

7

819641C1

BAR

hitch support anchor

4шт.

8

819778C1

BAR

anchor bar spacer

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

9

819644C1

SUPPORT

front hitch tube outer

2шт.

10

819643C1

SUPPORT

front hitch tube inner

2шт.

636167R1

HEADED PIN,1" x 5 5/8"

PIN, 1 x 5-5/8 std-hd-dld type 5

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

21885R1

WASHER

1.031 x 2.000 x .054

2шт.

11

819013C2

TUBE,56.55" Length

hitch front

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

12

819001C1

PLATE

hitch front

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

13

819018C2

CHANNEL

transport support front

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

14

819668C1

TUBE

hitch transport

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 std-hd-dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick-attachable cotter

2шт.

15

819660C2

TUBE

wing front, 24 x 6, 28 x 6, 20 x 7 and 24 x 7, for service replacement, order tube assy, 1279424C1 and spacer, 1279421C1

2шт.

15

819800C3

TUBE

wing front, 20 x 6, 16 x 8, and 16 x 6, for service replacement, order tube assy, 1279423C1 and spacer, 1279421C1

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4-10 x 7-1/2 hex-hd

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

.781 x 1.750 x .105

4шт.

280954

NUT,3/4"-10, G5

2шт.

16

819782C1

SPACER

pivot

2шт.

17

819781C1

SPACER

pivot

2шт.

18

819656C2

SUPPORT

ASSY, wing rear

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

19

819724C1

PIN

wing rear pivot

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

20

819662C1

CHANNEL

wing side

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

21

819664C1

BAR

side channel connecting

4шт.

22

819661C2

TUBE,101.5" Length

wing diagonal, 24 x 6, 28 x 6, 20 x 7 and 24 x 7

2шт.

22

819798C3

TUBE

wing diagonal, 20 x 6, 16 x 8, and 16 x 6

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

23

819663C1

ANGLE

diagonal tube tie, 24 x 6, 28 x 6, 20 x 7 and 24 x 7, for service replacement of angle, 819633C1, order two angles, 1279410C1

4шт.

24

819799C3

BAR

diagonal tube tie, 20 x 6, 16 x 8, and 16 x 6, for service replacement of bar, 819799C3, order two bars, 1279411C1

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

25

819665C2

BAR

basic hitch tie

4шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

8шт.

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

7/8-9 x 5 hex-hd-dld

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 hex-sltd

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

131018

WASHER

.938 x 1.750 x .108

6шт.

26

817757C1

EXTENSION

hitch for use w/track eraser attach

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8-11 x 1-1/2 hex-hd

4шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

6шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 hex-hd

3шт.

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

5/8-11 x 6-1/2 hex-hd spcl

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per bolt 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

8шт.

21793R1

WASHER

.656 x 1.250 x .164

4шт.

27

817758C1

SPACER

extension

2шт.

Выбрано товаров: 80
