Запчасти Case IH 620 (A-02) - FRAME, ROCKSHAFT AND DRAWBAR MOUNTING

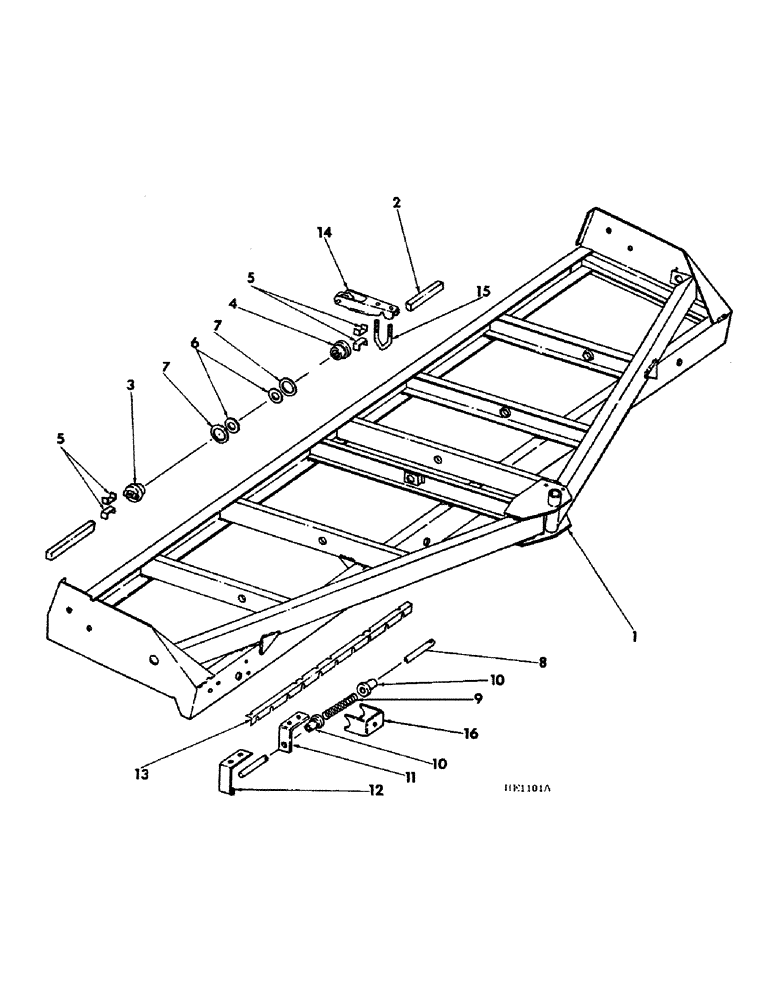

Схема запчастей Case IH 620 - (A-02) - FRAME, ROCKSHAFT AND DRAWBAR MOUNTING
5
1
8
11
10
10
7
6
9
5
16
2
4
14
3
7
15
13
12

Артикул

Название

Примечание

Количество

1

FRAME ASSY, main, on machines built prior to 1972 season order 1, 816866C1, frame and 1, 816786C1, bracket

1шт.

1

FRAME ASSY, main, 16 x 6 and 14 x 7, on machines built prior to 1972 season order 1, 816867C1, frame and 1, 816786C1, bracket

1шт.

1

FRAME ASSY, main, 20 x 6 and 16 x 8, on machines built prior to 1972 season order 1, 816868C2, frame and 1, 816786C1, bracket

1шт.

1

FRAME ASSY, main, 24 x 6 and 20 x 7, on machines built prior to 1972 season order 1, 816869C1, frame and 1, 816786C1, bracket

1шт.

1

FRAME ASSY, main, 24 x 7, on machines built prior to 1972 season order 1, 816870C2, frame and 1,816786C1, bracket

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

1

816866C1

FRAME ASSY, main, 14 x 6

1шт.

1

816867C1

FRAME ASSY, main, 16 x 6 and 14 x 7

1шт.

1

816868C2

FRAME ASSY, main, 20 x 6 and 16 x 8

1шт.

1

816869C1

FRAME ASSY, main, 24 x 6 and 20 x 7

1шт.

1

816870C2

FRAME ASSY, main, 28 x 6 and 24 x 7, machines built 1972 to April 1975

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

1

819083C92

FRAME

ASSY, main, 14 x 6

1шт.

1

819084C93

FRAME

ASSY, main, 16 x 6 and 14 x 7

1шт.

1

819085C93

FRAME

ASSY, main, 20 x 6 and 16 x 8

1шт.

1

819086C93

FRAME

ASSY, main, 24 x 6 and 20 x 7

1шт.

1

819087C93

FRAME

ASSY, main, 28 x 6 and 24 x 7, machines built April 1975 & since, includes 1, 61907C1, prod graphic

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, caution, general warn

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

2

BAR, rockshaft, for service order 1, 603164R1, bar of 94.31 inch in length and cut to 87.31 inch

1шт.

2

603164R1

ROCKSHAFT

BAR, rockshaft 94.31 inch in length

1шт.

2

815971C1

BAR

rockshaft, 16 x 6 and 14 x 7

1шт.

2

BAR, rockshaft, 20 x 6 and 16 x 8, for service order 1, 603919R1, bar of 71.5 inch in length and cut to 64.38 inch

2шт.

2

603919R1

BAR

rockshaft 71.50 inch in length

1шт.

2

BAR, rockshaft, 24 x 6 and 20 x 7, for service order 1, 603164R1, bar of 94.31 inch in length and cut to 73.88 inch

2шт.

2

BAR, rockshaft, 28 x 6 and 24 x 7, for service order 1, 603164R1, bar of 94.31 inch in length and cut to 85.38 inch

2шт.

3

603114R1

TRUNNION

rockshaft end

2шт.

19579R1

SET SCREW

SCREW, 7/16-14 x 7/8 sq-hd CP set, 1 used per trunnion

1шт.

4

815086C1

TRUNNION

rockshaft intermediate, 4 used 14 x 6, 16 x 6 and 14 x 7, 6 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

5

603196R1

CHANNEL

trunnion retaining, 8 used 14 x 6, 16 x 6, and 14 x 7, 12 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7, and 16 x 8

1шт.

6

23696R1

WASHER

1.844 x 2.750 x .054 pln, 4 used 14 x 6, 16 x 6, and 14 x 7, 6 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

7

22766R1

WASHER

1.406 x 2.250 x .036

1шт.

8

ROD, drawbar pivot, 14 x 6, for service order 1, 816850C1, rod and 2, 816775C1, angles, machines, Serial Range: prior-1972

1шт.

8

816850C1

ROD

drawbar pivot, 14 x 6, machines 1972 & since

1шт.

8

ROD, drawbar pivot, 16 x 6, 14 x 7, for service order 1, 816851C1, rod and 2, 816775C1, angles

1шт.

8

816851C1

ROD

drawbar pivot, 16 x 6 and 14 x 7, machines 1972 & since

1шт.

8

ROD, drawbar pivot, 20 x 6, for service order 1, 816852C1, rod and 2, 816775C1, angles

1шт.

8

816852C1

ROD

drawbar pivot, 20 x 6 and 16 x 8, machines 1972 & since

1шт.

8

ROD, drawbar pivot, 24 x 6, 20 x 7, for service order 1, 816849C1, rod and 2, 816775C1, angles

1шт.

8

816849C1

ROD

drawbar pivot, 24 x 6 and 20 x 7, machines 1972 & since

1шт.

8

ROD, drawbar pivot, 24 x 7, for service order 1, 816853C1, rod and 2, 816775C1, angles

1шт.

8

816853C1

ROD

drawbar pivot, 28 x 6 and 24 x 7, machines 1972 & since

1шт.

9

16046D

SPRING

drawbar lock pivot rod, 1 per furrow opener

1шт.

10

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

drawbar lock pivot rod, 2 per spring

1шт.

11

815262C1

ANGLE

pivot rod support, 6 used 14 x 6, 16 x 6 and 14 x 7, 7 used 16 x 8, 9 used 20 x 6, 24 x 6, 20 x 7 and 24 x 7, 11 used 28 x 6

1шт.

180168

SCREW,Hex, 1/2" - 13 x 5/8", Gr 5

BOLT, 1/2-13 x 5/8 hex-hd 8, 14 x 6, 16 x 6, 10, 16 x 8, 14, 20 x 6, 24 x 6, 20 x 7, 24 x 7, 18, 28 x 6

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

12

816775C1

ANGLE

pivot rod end cover, machines 1972 & since

2шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

13

816111C1

ANGLE

F/O spacing LH, 14 x 6

1шт.

13

816112C1

ANGLE

F/O spacing RH, 14 x 6

1шт.

13

816113C1

ANGLE

F/O spacing LH, 16 x 6

1шт.

13

816114C1

ANGLE

F/O spacing RH, 16 x 6

1шт.

13

816115C1

ANGLE

F/O spacing LH, 20 x 6

1шт.

13

816116C1

ANGLE

F/O spacing RH, 20 x 6

1шт.

13

816117C1

ANGLE

F/O spacing LH, 24 x 6

1шт.

13

816118C1

ANGLE

F/O spacing RH, 24 x 6

1шт.

13

816119C1

ANGLE

F/O spacing LH, 20 x 7

1шт.

13

816120C1

ANGLE

F/O spacing RH, 20 x 7

1шт.

13

816121C1

ANGLE

F/O spacing LH, 24 x 7

1шт.

13

816902C1

ANGLE

F/O spacing LH, 28 x 6

1шт.

13

816903C1

ANGLE

F/O spacing RH, 28 x 6

1шт.

13

816122C1

ANGLE

F/O spacing RH, 24 x 7

1шт.

13

816596C1

ANGLE, F/O spacing LH, 14 x 7

1шт.

13

816597C1

ANGLE, F/O spacing RH, 14 x 7

1шт.

13

819117C1

ANGLE

F/O spacing LH, 16 x 8

1шт.

13

819118C1

ANGLE

F/O spacing RH, 16 x 8

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd, 1 used on all sizes except 2, 14 x 6 & 16 x 6

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

178373R1

WASHER

.531 x 1.000 x .054, 1 per bolt

1шт.

14

815281C2

ARM

ASSY, rockshaft lift, 1 per furrow opener

1шт.

15

815284C1

BOLT,3/8" - 16 x 2 1/2"

U-BOLT, lift arm, 1 per arm assy

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flange lock, 2 per bolt

1шт.

16

815753C1

CHANNEL

drawbar release

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

1шт.
