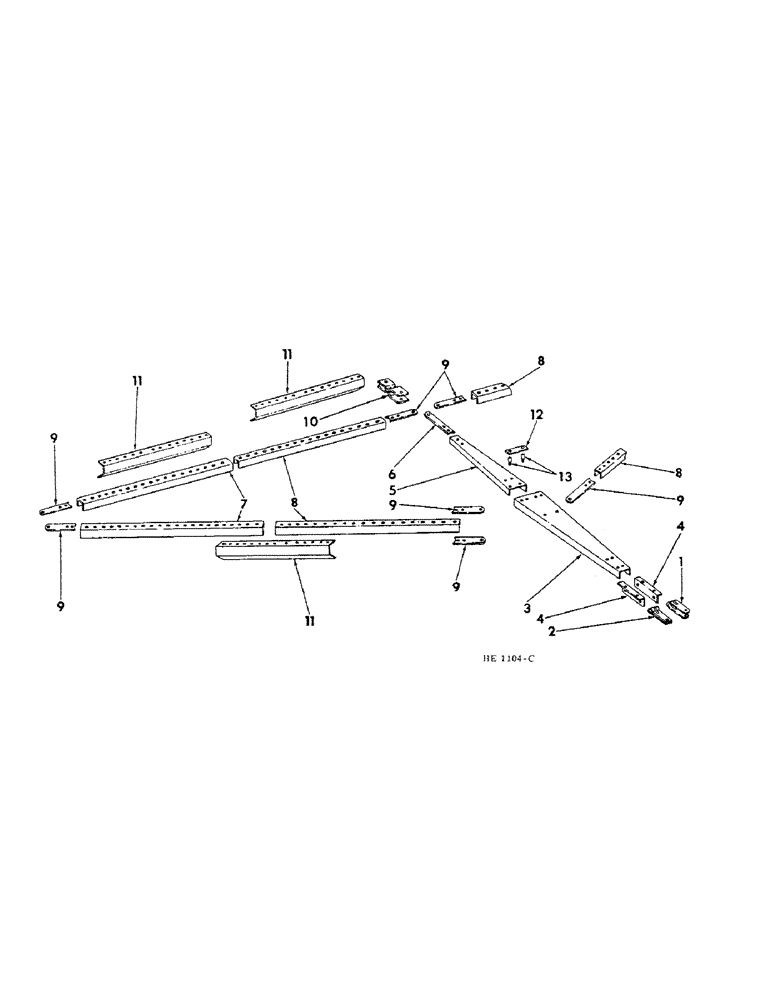

Запчасти Case IH 620 (A-33) - THREE DRILL HITCH

1

601910R3

CLEVIS

hitch, regular

1шт.

2

601909R1

CLEVIS

hitch, special

1шт.

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

1-8 x 4-1/2 hex-hd-dld

1шт.

9849633

NUT,1"-8, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

23049R1

WASHER

1.031 x 2.500 x .105

2шт.

3

816336C2

CHANNEL

hitch front

1шт.

4

816354C1

ANGLE

hitch clevis

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

816355C1

CHANNEL, hitch rear

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

816358C1

BAR

hitch

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

816361C1

CHANNEL

hitch

4шт.

8

816362C1

CHANNEL

hitch

4шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

9

816358C1

BAR

hitch channel tie

10шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

12шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

4шт.

280954

NUT,3/4"-10, G5

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

10

816368C91

BRACKET

ASSY, hitch coupling, includes 2, 104131, rivet

3шт.

932388R1

PIN,1" x 3 1/2"

1 x 3-1/2 std-hd-dld

3шт.

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4 std-hd-dld

3шт.

471194R1

AXLE PIN

PIN, quick-attachable cotter

6шт.

104131

RIVET, 1/2 x 1-1/2 large b-hd

6шт.

11

816799C1

CHANNEL, hitch bumper, machines built 1972, Feb 1977

6шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

12шт.

280954

NUT,3/4"-10, G5

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

12

816367C1

BAR

hitch support

1шт.

13

816365C1

STUD

hitch

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

471194R1

AXLE PIN

PIN, quick-attachable cotter

2шт.
