Запчасти Case IH 620 (A-31) - HITCH BUMPER PLATE AND STABILIZER FOR DRILLS WITH MULTIPLE HITCHES

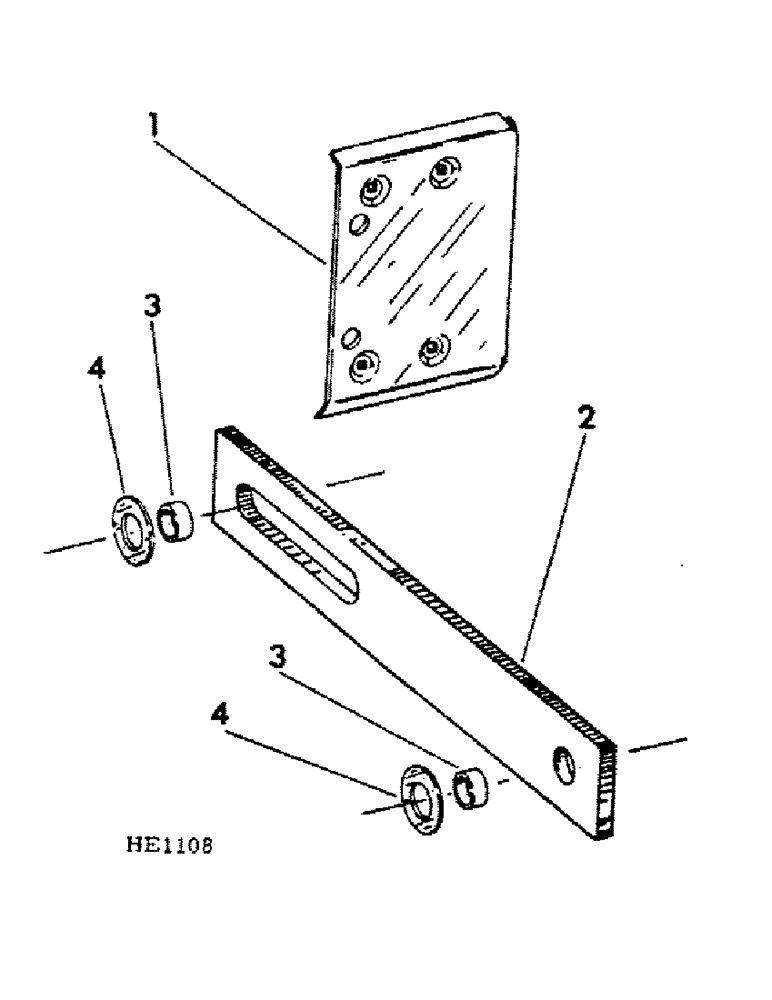

Схема запчастей Case IH 620 - (A-31) - HITCH BUMPER PLATE AND STABILIZER FOR DRILLS WITH MULTIPLE HITCHES
1
3
4
3
2
4

Артикул

Название

Примечание

Количество

1

816373C1

PLATE

bumper, two drill 4, three drill, 6, four drill, for service replacement of plate, 816373C1, order LH bumper plate, 1268392C1 and RH bumper plate, 1268393C1

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg, 2 per plate

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 type 5 crg, 2 per plate

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

816374C1

BAR

stabilizer 1, two drill, 2 , three drill, 3, 4 drill

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, 2 per bar

1шт.

280954

NUT,3/4"-10, G5

1 per bolt 3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per bolt

1шт.

3

816375C1

SPACER

stabilizer bar 1 per plate

1шт.

4

597176R1

WASHER

stabilizer bar, 1 per spacer

1шт.

Выбрано товаров: 11
