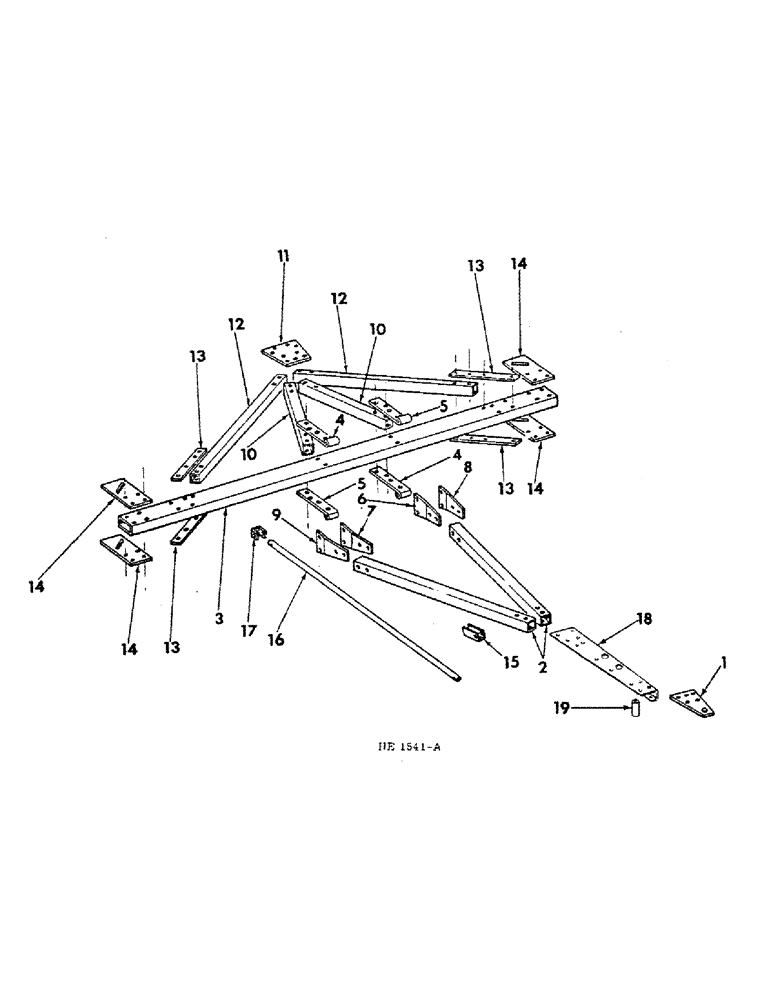

Запчасти Case IH 620 (A-30) - TWO DRILL HITCH

1

819001C1

PLATE

hitch front

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

2

819013C2

TUBE,56.55" Length

hitch front

2шт.

3

819006C3

TUBE,138.4" Length

hitch cross, 16 x 6, 20 x 6, 14 x 7 and 16 x 8

1шт.

3

819007C2

TUBE,180.4" Length

hitch cross, 24 x 6, 28 x 6, 20 x 7 and 24 x 7

1шт.

4

819011C1

SUPPORT

hitch hinge LH

2шт.

5

819012C1

SUPPORT

hitch hinge RH

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

6

819002C1

PLATE

hitch hinge LH inner

1шт.

7

819003C1

PLATE

hitch hinge RH inner

1шт.

8

819004C1

PLATE

hitch hinge LH outer

1шт.

9

819005C1

PLATE

hitch hinge RH outer

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

Q3795

HEADED PIN,3/4" x 4"

PIN, 3/4 x 4 std-hd-dld

4шт.

471194R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

10

819016C1

TUBE,30.46" Length

hitch stabilizer centre, 24 x 6, 28 x 6, 20 x 7 and 24 x 7

2шт.

10

819014C1

TUBE,25.17" Length

hitch stabilizer centre, 20 x 6 and 16 x 8

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

11

819009C1

PLATE

hitch stabilizer rear, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 he-xhd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.

464623R1

WASHER

.656 x 1.500 x .105

8шт.

12

819015C2

TUBE,47.3" Length

hitch stabilizer outer, 20 x 6 and 16 x 8

2шт.

12

819017C1

TUBE,60.2" Length

hitch stabilizer outer, 24 x 6, 28 x 6, 20 x 7 and 24 x 7

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

13

819021C2

BAR

outer tube support, 20 x 6 and 16 x 8

4шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.

13

819008C1

ANGLE

outer tube support, 24 x 6, 28 x 6, 20 x 7 and 24 x7

4шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

14

819019C1

BAR

drill hitch

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

7/8-9 x 5 hex-hd dld

2шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 hex sltd

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

131018

WASHER

.938 x 1.750 x .108

4шт.

15

819018C2

CHANNEL

transport tube support

1шт.

16

819022C1

TUBE

hitch transport support

1шт.

Q595

PIN,3/8" x 3 1/4"

3/8 x 3-1/4 std-hd-dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick-attachable cotter

1шт.

17

819010C1

YOKE

tube support

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

18

817757C1

EXTENSION

hitch, for use w/track eraser attach

2шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

4шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

6шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 hex-hd

3шт.

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

5/8-11 x 6-1/2 hex-hd spcl

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per bolt 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

8шт.

21793R1

WASHER

.656 x 1.250 x .164

4шт.

19

817758C1

SPACER

extension

2шт.
