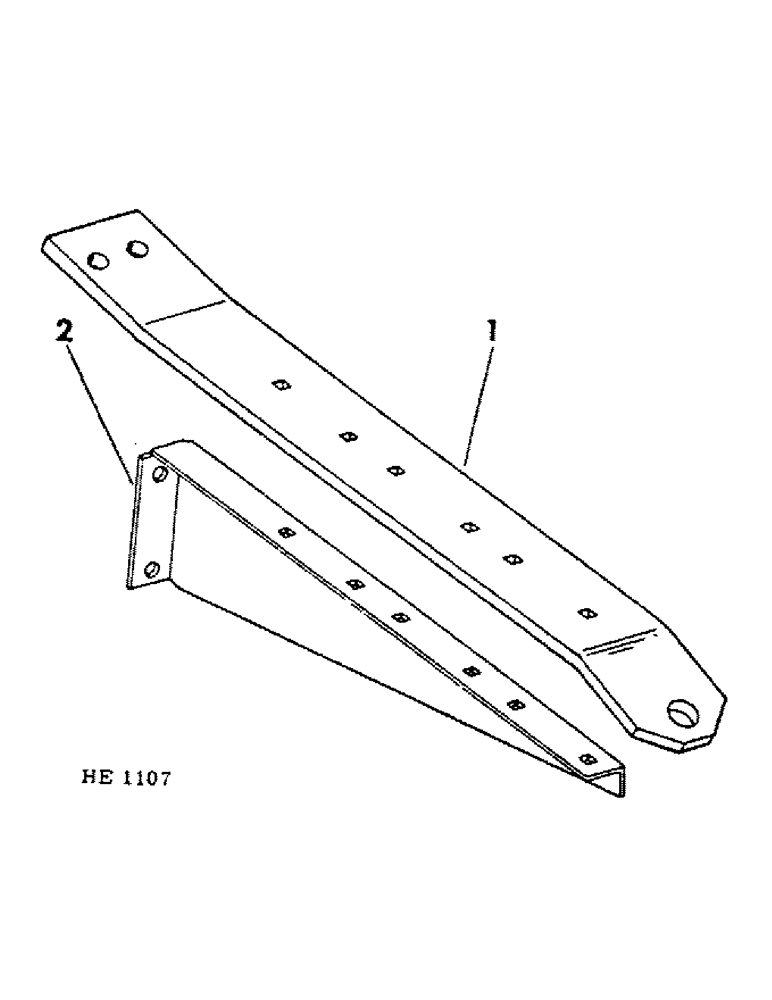

Запчасти Case IH 620 (A-29) - REAR TRAILING HITCH

1

816520C1

BAR

trailing hitch draw

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hexhd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

816521C1

SUPPORT

footboard & hitch drawbar

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 type 5 crg

6шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120376

NUT,5/16"-18, G5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
