Заказать запчасти

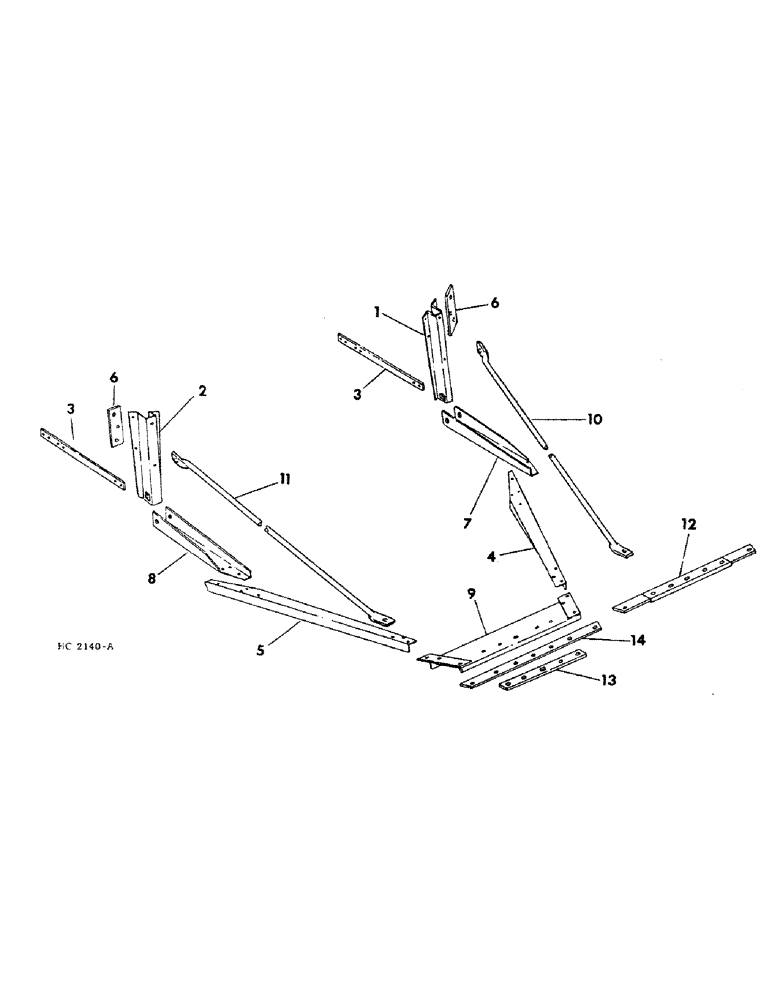

Запчасти Case IH 620 (A-27) - BASIC TRACTOR HITCH, ALL SIZE DRILLS, FOR MULTIPLE HOOK-UP
№
Артикул
Название
Примечание
Количество
1
815980C2
SUPPORT
ASSY, hitch LH, 14 x 6, 16 x 6 and 14 x 7
1шт.
1
815982C2
SUPPORT
ASSY, hitch LH, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8
1шт.
2
815981C2
SUPPORT
ASSY, hitch RH, 14 x 6, 16 x 6 and 14 x 7
1шт.
2
815983C2
SUPPORT
ASSY, hitch RH, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
14 x 6, 16 x 6, 14 x 7, 12 , 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7, 16 x 8 Hex, 1/2"-13 x 1", G5, Full Thd
8шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 hex flange lock 1, per bolt
1шт.
3
815989C1
BAR
support brace, 14 x 6
2шт.
3
815990C1
BAR
support brace, 16 x 6 & 14 x 7
2шт.
3
815991C1
BAR
support brace, 24 x 6, 28 x 6, 20 x 7 and 24 x 7
2шт.
3
816456C1
BAR
support brace, 20 x 6 & 16 x 8
2шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2-13 x 1-1/2 hex-hd
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
20601R1
WASHER
.531 x 1.250 x .105
4шт.
4
815996C2
ANGLE
hitch LH
1шт.
5
815997C2
ANGLE
hitch RH
1шт.
6
819681C1
BAR
hitch support upper reinforce, 4 per machine
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex-hd, 3 per bar
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 hex flange lock, 3 per bar
1шт.
7
816561C2
CHANNEL
hitch rear LH
1шт.
8
816562C2
CHANNEL
hitch rear RH
1шт.
NLS
NO LONGER SERVICED
5/8-11 x 1-1/4 hex-hd
8шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8-11 hex flanged lock
8шт.
642292R1
HEADED PIN,7/8" x 4"
PIN, 7/8 x 4 std-hd-dld
2шт.
520175R1
CLIP
PIN, quick-attachable cotter
2шт.
9
815999C2
SUPPORT
hitch cross, 16 x 6, 20 x 6, 24 x 6, 28 x 6, 14 x 7, 20 x 7, 24 x 7 and 16 x 8
1шт.
9
819035C2
SUPPORT
ASSY, hitch cross, 14 x 6
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex-hd
2шт.
NLS
NO LONGER SERVICED
5/8-11 x 1-1/2 hex-hd
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8-11 hex flanged lock
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
10
816371C3
BRACE
hitch LH, 45-1/2 in., order two braces, 1279789C1
1шт.
10
1279789C1
BRACE
hitch LH and RH, 47 in.
2шт.
11
816372C3
BRACE
hitch RH, 45-1/2 in., order two braces, 1279789C1
1шт.
271546
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5
5/8-11 x 1-1/4 hex-hd, 1 per brace
1шт.
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
5/8-11 x 1-1/2 hex-hd, 1 per brace
1шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8-11 hex flanged lock, 1 per bolt
1шт.
12
BAR, hitch cross reinforcing, for service prior to March 1971, order 1, 816726C1 & 1, 816727C1
1шт.
13
816726C1
BAR
hitch support reinforcing, 1 per machine
1шт.
14
816727C1
BAR
hitch support reinforcing, 1 per machine
1шт.
466971R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
BOLT, 1/2-13 x 2 crg, 16 x 6, 14 x 7
6шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2-13 x 2 hex-hd, 16 x 6, 14 x 7, 8, 14 x 6
6шт.
465567R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
BOLT, 1/2-13 x 1-1/2 crg
4шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2-13 x 1-1/2 hex-hd
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 per bolt 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, , 1 per bolt 1/2"
1шт.
Выбрано товаров: 47
