Запчасти Case IH 620 (A-26) - SINGLE DRILL HITCH, ALL SIZE DRILLS

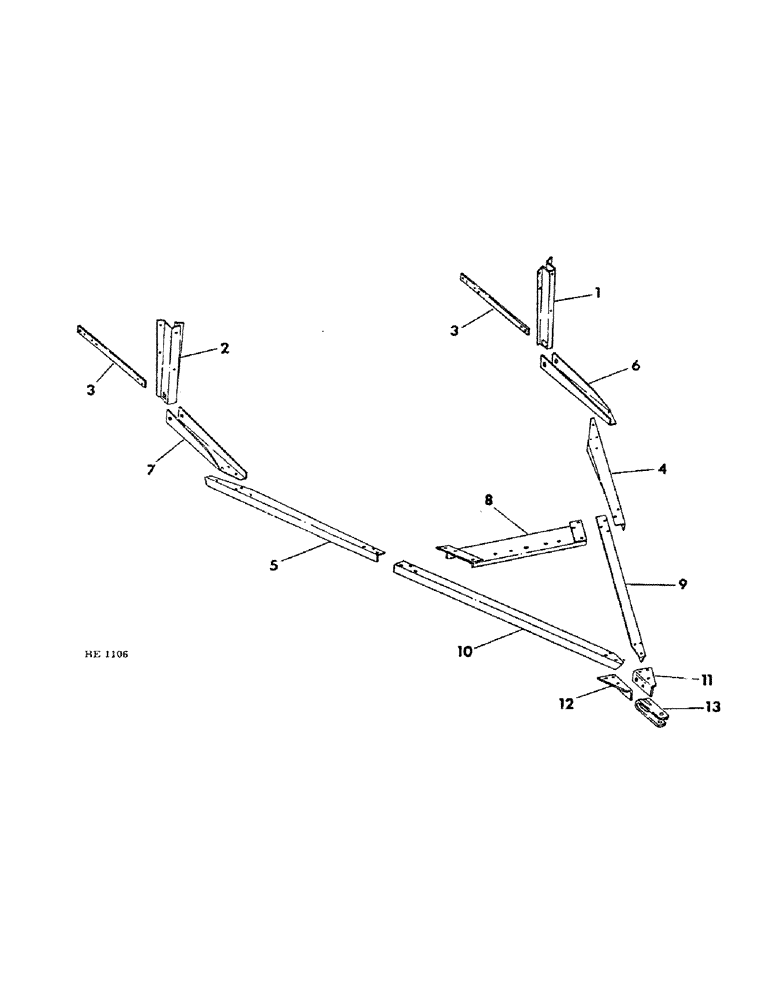

Схема запчастей Case IH 620 - (A-26) - SINGLE DRILL HITCH, ALL SIZE DRILLS
1
8
3
2
3
5
7
13
4
10
9
6
12
11

Артикул

Название

Примечание

Количество

1

815980C2

SUPPORT

ASSY, hitch LH, 14 x 6, 16 x 6 and 14 x 7

1шт.

1

815982C2

SUPPORT

ASSY, hitch LH, 20 x 6, 24 x 6 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

2

815981C2

SUPPORT

ASSY, hitch RH, 14 x 6, 16 x 6 and 14 x 7

1шт.

2

815983C2

SUPPORT

ASSY, hitch RH, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

14 x 6, 16 x 6, 14 x 7, 12, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7, 16 x 8 Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 hex flange lock 1, per bolt

1шт.

3

815989C1

BAR

support brace, 14 x 6

2шт.

3

815990C1

BAR

support brace, 16 x 6 & 14 x 7

2шт.

3

815991C1

BAR

support brace, 24 x 6, 28 x 6, 20 x 7 and 24 x 7

2шт.

3

816456C1

BAR

support brace, 20 x 6 & 16 x 8

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

4

815996C2

ANGLE

hitch LH

1шт.

5

815997C2

ANGLE

hitch RH

1шт.

6

816561C2

CHANNEL

hitch rear LH

1шт.

7

816562C2

CHANNEL

hitch rear RH

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 x 1-1/4 hex-hd

8шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 hex flanged lock

8шт.

642292R1

HEADED PIN,7/8" x 4"

PIN, 7/8 x 4 std-hd-dld

2шт.

520175R1

CLIP

PIN, quick-attachable cotter

2шт.

8

815999C2

SUPPORT

hitch cross, 16 x 6, 20 x 6, 24 x 6, 28 x 6, 14 x 7, 20 x 7, 24 x 7 and 16 x 8

1шт.

8

819035C2

SUPPORT

ASSY, hitch cross, 14 x 6

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8-11 x 1-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 hex flanged lock

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

816352C2

ANGLE

hitch front LH

1шт.

10

816353C2

ANGLE

hitch front RH

1шт.

11

816563C1

ANGLE

hitch clevis LH

1шт.

12

816564R1

ANGLE, hitch clevis RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

7шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

13

601910R3

CLEVIS

hitch

1шт.

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

1-8 x 4-1/2 hex-hd-dld

1шт.

9849633

NUT,1"-8, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

23049R1

WASHER

1.031 x 2.500 x .105

2шт.

Выбрано товаров: 41
