Запчасти Case IH 620 (A-24) - GRASS SEED FEED MECHANISM

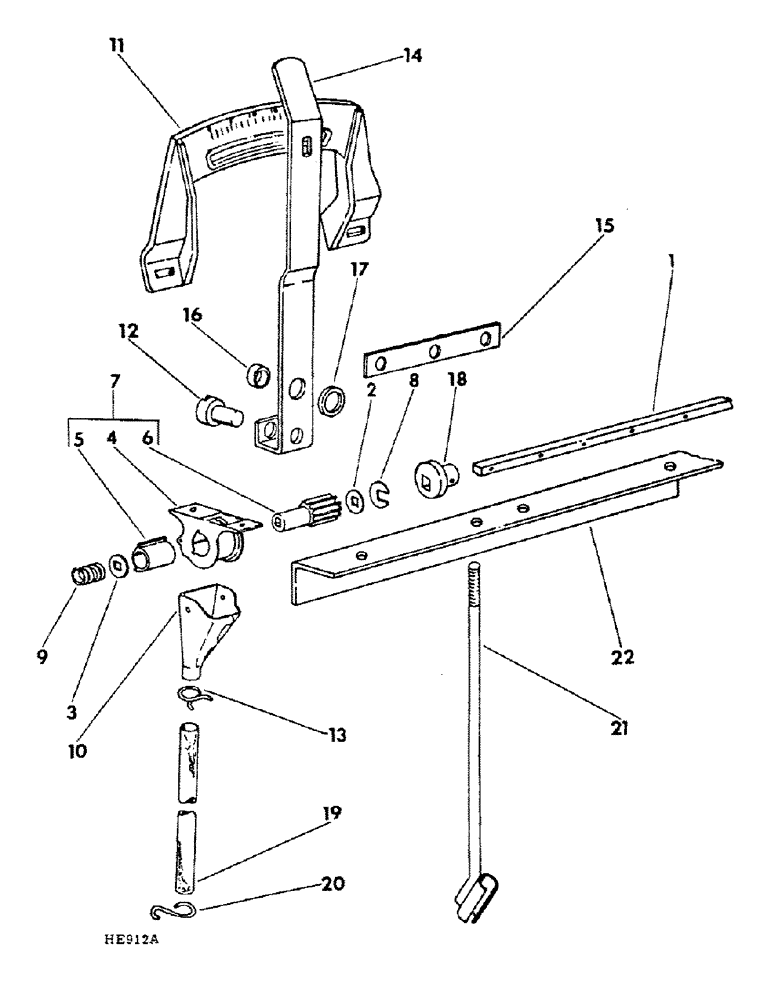

Схема запчастей Case IH 620 - (A-24) - GRASS SEED FEED MECHANISM
20
7
8
17
12
10
18
11
1
19
3
5
9
6
21
13
14
15
4
16
22
2

Артикул

Название

Примечание

Количество

1

816333C1

BAR

feed shaft, 14 x 6

1шт.

1

816332C1

BAR

feed shaft, 16 x 6

1шт.

1

815622C1

DRIVE SHAFT

BAR, feed shaft, 20 x 6

2шт.

1

815623C1

DRIVE SHAFT

BAR, feed shaft, 24 x 6

2шт.

1

816920C1

BAR

feed shaft, 28 x 6

2шт.

1

816609C1

BAR, feed shaft, 14 x 7

1шт.

1

816334C1

BAR

feed shaft, 20 x 7

2шт.

1

816335C2

BAR

feed shaft, 24 x 7

2шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), , 2 per grass feed 1/8" x 1/2"

1шт.

2

23051R1

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

.344 sq hole x .750 x .016

1шт.

3

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

.344 sq hole x .750 x .054, 1 per grass feed

1шт.

4

615750R92

SUPPORT ASSY.

CUP ASSY, feed, 1 per grass feed

1шт.

5

600923R2

BLOCK

THIMBLE, feed cup cut off, 1 used per feed cup assy

1шт.

6

601463R1

FINGER ASSY.

ROLL, feed, 1 used per feed cup assy

1шт.

7

600924R92

CUP ASSY.

CUP ASSY, grass seed, includes 1, 600923R2, thimble, 1, 601463R1, roll and 1, 615750R92, cup assy, 1 per grass feed

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd, 2 used per feed cup

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per screw 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per screw 1/4"

1шт.

8

N32109

WASHER

11/32 sltd-hole x 7/8 x 26 ga

1шт.

9

N32176

SPRING

feed roll, 1 used per feed cup assy

1шт.

10

603817R1

TUBE

TOP, grass seed tube, 1 used per feed cup assy

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , 1 used per tube top 1/8" x 1 3/4"

1шт.

11

815627C1

INDICATOR

grass box feed, 1 per grass drive

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 bolts used per indicator

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

12

815630C1

PIN,25.4mm OD x 42.16mm L

feed shifter, 1 per lever

1шт.

13

603699R2

CLAMP

seed tube top, 1 used per feed cup assy

1шт.

14

815628C1

LEVER

shifter, 1 per indicator

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 1 bolt used per lever

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 type 5 crg, 1 bolt used per lever

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

7500032

BUSHING

NUT, 5/16-18 wing, 1 used per bolt

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga, 1 per bolt

1шт.

15

815629C1

BAR

reinforcing, 1 per indicator

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 used per reinforcing bar

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

16

2551F

WASHER

lever pivot, 1 per indicator

1шт.

17

151401C1

BELLEVILLE WASHER

WASHER, bellville, 1 used per shifter lever, machines built 1971 & since

1шт.

18

819227C1

SLEEVE

BUSHING, feed shifter, 1 per lever

1шт.

104056

RIVET

1/8 x 7/8 rd-hd, 1 used per bushing

1шт.

19

TUBE, seed, 1 used per feed cup assy, cut to desired length for broadcast seeding from bulk roll 997790C1, replaces 609398R2

1шт.

19

997790R1

HOSE

TUBE, bulk stock seed

1шт.

20

603882R1

HOOK

seed tube lower, 1 used per feed cup assy

1шт.

21

605088R11

HOLDER

ASSY, band seed tube, 1 used per feed cup assy

1шт.

120377

NUT,3/8" - 16, Gr 5

2 used per holder 3/8"-16, G5

1шт.

22

816466C1

ANGLE, tube holder support, 14 x 6, machines, Serial Range: prior-1978

2шт.

22

816467C1

ANGLE

tube holder support, 16 x 6 and 14 x 7

2шт.

22

816468C1

ANGLE

tube holder support, 20 x 6

2шт.

22

816469C1

ANGLE

tube holder support, 24 x 6 and 20 x 7

2шт.

22

816470C2

ANGLE

tube holder support, 28 x 6 and 24 x 7

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd, 4 used 14 x 6, 16 x 6 and 14 x 7, 6 used 20 x 6, 24 x 6, 28 x 6, 20 x 6, 24 x 7

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

477589R1

WASHER

.406 x 1.500 x .105, 1 used per bolt

1шт.

Выбрано товаров: 58
