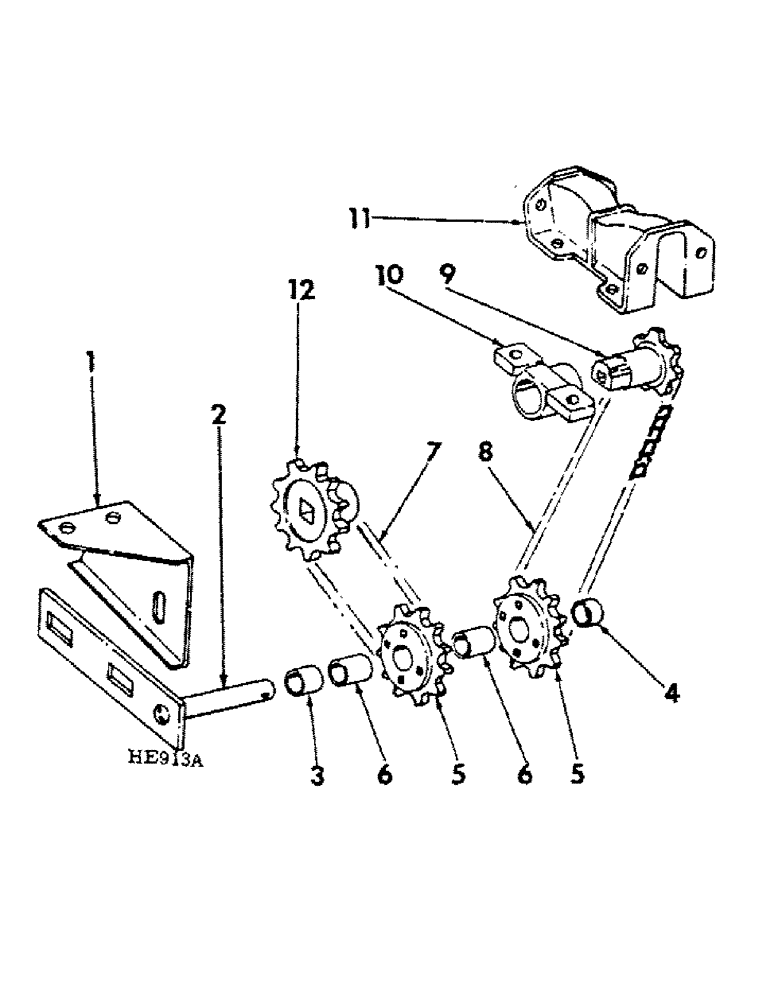

Запчасти Case IH 620 (A-23) - GRASS SEED DRIVE

1

815638C1

BRACKET

SUPPORT, chain tightener bracket, 1 per grass sprocket

1шт.

2

816340C2

BRACKET

ASSY, drive chain tightener, 1 per grass sprocket

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg, 1 per bracket

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage, 1 per bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105, 1 per bolt

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 per bolt 1/8" x 1"

1шт.

3

PO15237

SPACER

tightener sprocket inner, 1 per bracket

1шт.

4

590750R1

SPACER

tightener sprocket outer, 1 per bracket

1шт.

5

SPROCKET ASSY, chain tight 10T, cast order 1, 819949C1, sprocket & 1, 816340C2, bracket

1шт.

5

819949C1

DRIVE SPROCKET

SPROCKET, chain tightener 10T, sintered metal, 2 per drive

1шт.

598800R1

BOLT,Short NK, 1/4"-20 x 2", G5

1/4-20 x 2 crg, 1 per sprocket, sprockets together

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

6

298025R1

BUSHING,15.93mm ID x 19.13mm OD x 19.05mm L

tightener sprocket, 1 per grass sprocket, for service w/grey iron chain tightener sprocket

1шт.

7

CHAIN, grass seed drive, 1 per grass sprocket, for service order 1, CS25, 10 foot roll of no. 25 steel chain and reduce to 26 links

1шт.

8

CHAIN, grass seed driven, 1 per grass sprocket, for service order 1, CS25, 10 foot roll of no. 25 steel chain and reduce to 45 links

1шт.

9

NA1475

DRIVE SPROCKET

SPROCKET, grass feed driven 7T, 1 used 14 x 6, 16 x 6 adn 14 x 7, 2 used 20 x 6, 24 x 6, 28 x 6, 20 x 7 and 24 x 7

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), , 1 used per sprocket 3/16" x 3/4"

1шт.

10

816533C1

BRACKET

BEARING, sprocket, 1 per grass sprocket

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd, 2 used per bearing

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

11

816532C1

GUARD

drive chain, 1 per grass sprocket

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 4 bolts used per guard

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

12

815324C1

DRIVE SPROCKET

SPROCKET, grass seed drive 10T, see grain feed shaft

1шт.

815803C1

CLIP

sprocket retaining, 2 per sprocket

1шт.
