Запчасти Case IH 620 (A-21) - GRASS SEED HOPPER UNIT

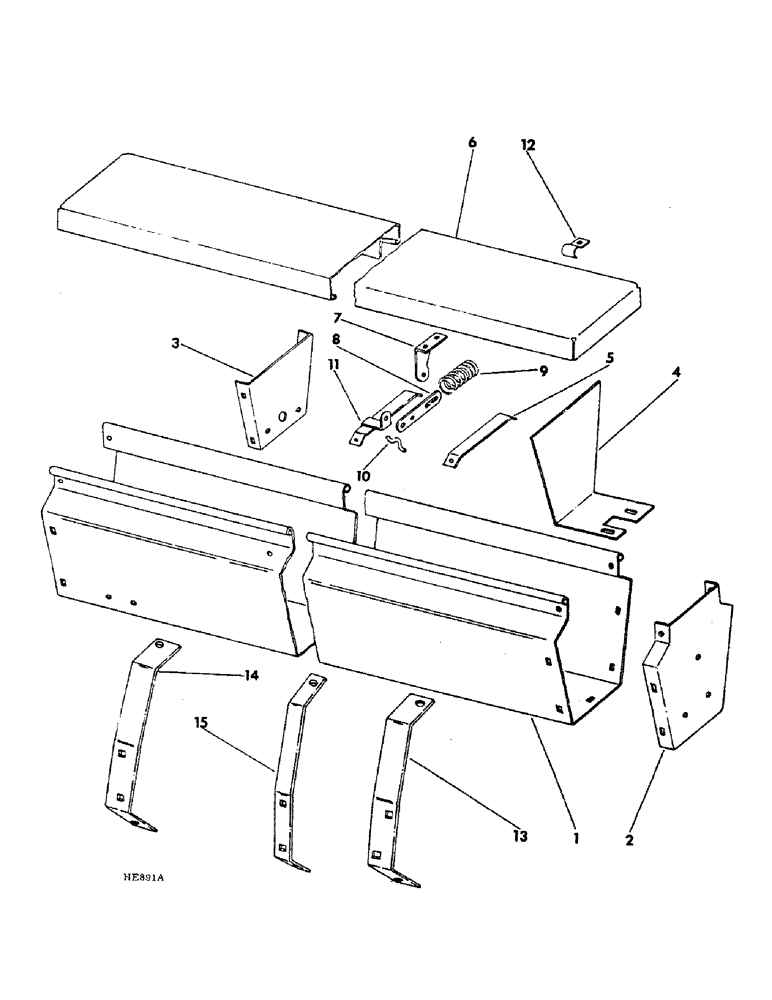

Схема запчастей Case IH 620 - (A-21) - GRASS SEED HOPPER UNIT
10
14
6
2
4
7
3
9
11
15
5
12
13
8
1

Артикул

Название

Примечание

Количество

1

816319C1

HOPPER, grass seed, 14 x 6, machines, Serial Range: prior-1972

1шт.

1

816854C2

HOPPER

grass seed, 14 x 6, machines built 1972 & since

1шт.

1

816320C1

HOPPER, grass seed, 16 x 6, machines, Serial Range: prior-1972

1шт.

1

816855C2

HOPPER

grass seed, 16 x 6, machines built 1972 & since

1шт.

1

351160A1

HOPPER

BOX ASSY GRASS SEED 20 X 6 HFM

1шт.

1

816780C2

HOPPER

grass seed, 20 x 6, machines built 1972 & since

1шт.

1

351157A1

HOPPER

BOX ASSY GRASS SEED 24 X 7 LRM

1шт.

1

819781C2

HOPPER, grass seed, 24 x 6, machines built 1972 & since

1шт.

1

816913C2

HOPPER

grass seed, 28 x 6

1шт.

1

816608C1

HOPPER, grass seed, 14 x 7, machines, Serial Range: prior-1972

1шт.

1

816856C2

HOPPER, grass seed, 14 x 7, machines built 1972 & since

1шт.

1

816321C1

HOPPER, grass seed, 20 x 7, machines, Serial Range: prior-1972

1шт.

1

816857C2

HOPPER

grass seed, 20 x 7, machines built 1972 & since

1шт.

1

816322C1

HOPPER, grass seed, 24 x 7, machines, Serial Range: prior-1972

1шт.

1

816858C2

HOPPER

grass seed, 24 x 7, machines built 1972 & since

1шт.

2

819060C2

PANEL, SIDE

END, hopper

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 pan-hd-sltd

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 type 5 crg

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

3

815597C1

PLATE

BAFFLE, hopper, 2 used 14 x 6, 16 x 6, 20 x 6, 24 x 6, 14 x 7 and 20 x 7, 4 used 28 x 6 and 24 x 7

2шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 type 5 crg, 2 bolts used per baffle

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg, 2 bolts used per baffle

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

4

815598C1

BAFFLE

grass seed, 4 used 14 x 6, 16 x 6 and 14 x 7, 5 used 20 x 6, 7 used 24 x 6, 28 x 6, 20 x 7, and 24 x 7

1шт.

5

815599C1

BRACKET

BRACE, hopper, 2 used 14 x 6, 16 x 6 and 14 x 7, 4 used 20 x 6, 24 x 6, 20 x 7 and 24 x 7

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd, 1 used per brace

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 1 used per brace

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

6

816323C1

COVER ASSY, hopper, 14 x 6, machines, Serial Range: prior-1972

1шт.

6

816859C1

COVER

ASSY, hopper, 14 x 6, machines built 1972 & since

1шт.

6

816324C1

COVER ASSY, hopper, 16 x 6 and 14 x 7, machines, Serial Range: prior-1972

1шт.

6

816860C1

COVER

ASSY, hopper, 16 x 6 and 14 x 7, machines built 1972 & since

1шт.

6

815602C1

COVER

ASSY, hopper, 20 x 6, machines, Serial Range: prior-1972

1шт.

6

816788C1

PANEL

COVER ASSY, hopper, 20 x 6, machines built 1972 & since

1шт.

6

815603C1

COVER

ASSY, hopper, 24 x 6 and 20 x 7, machines, Serial Range: prior-1972

1шт.

6

816779C1

COVER

ASSY, hopper, 24 x 6 and 20 x 7, machines built 1972 & since

1шт.

6

816861C1

COVER

ASSY, hopper, 28 x 6

1шт.

6

816325C1

COVER ASSY, hopper, 24 x 7, machines, Serial Range: prior-1972

1шт.

6

816861C1

COVER

ASSY, hopper, 24 x 7, machines built 1972 & since

1шт.

7

815615C1

SUPPORT

BRACKET, cover spring

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 pan-hd-sltd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

N32052

BAR

cover spring plunger

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x .042

1шт.

9

6628

SPRING

plunger

1шт.

10

N32114

LINCH PIN

LOCK, spring

1шт.

11

815616C1

BRACKET

ASSY, cover

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x .042

1шт.

12

815618C1

CLAMP

cover hinge, 5 used 14 x 6, 16 x 6 and 14 x 7, 7 used 20 x 6, 24 x 6, 28 x 6, 20 x 7 and 24 x 7

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

816337C2

BRACE

hopper support LH

1шт.

14

816338C2

BRACE

hopper support RH

1шт.

15

816339C1

BRACE

hopper support intermediate, 2 used 14 x 6, 16 x 6, 20 x 6, 24 x 6, 14 x 7 and 20 x 7, 4 used 24 x 7 and 28 x 6

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 bolt used per brace, except 6 used 24 x 7, 28 x 6

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2, 24 x 7, 28 x 6 Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

Выбрано товаров: 74
