Запчасти Case IH 620 (A-19) - SLOW MOVING VEHICLE EMBLEM

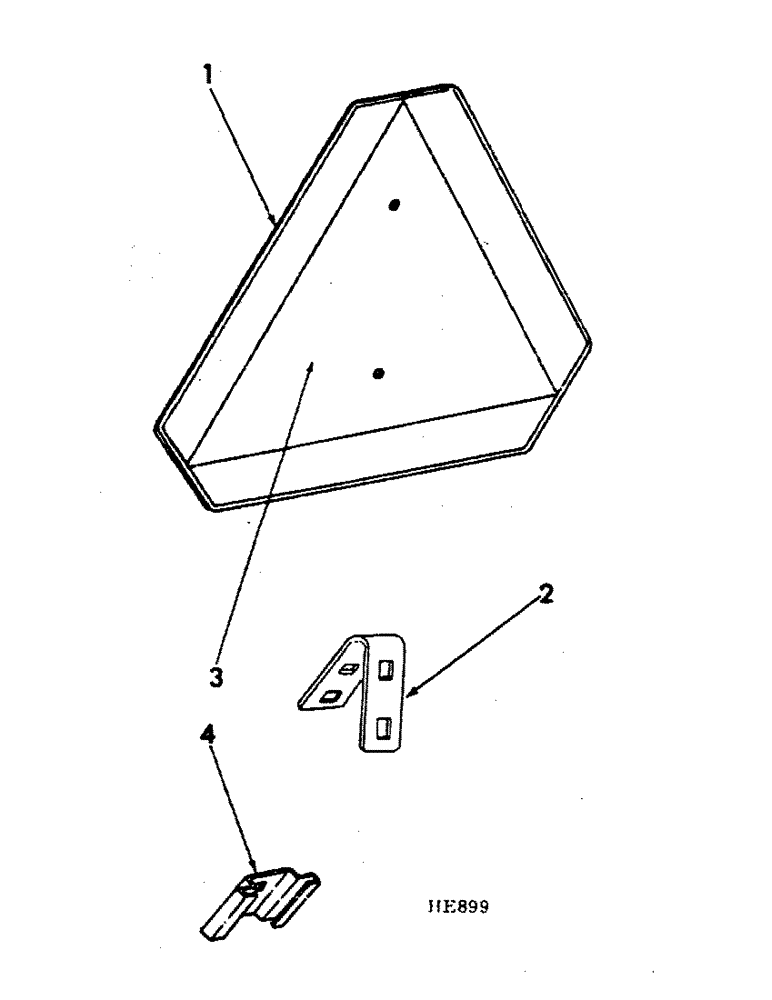

Схема запчастей Case IH 620 - (A-19) - SLOW MOVING VEHICLE EMBLEM
3
1
2
4

Артикул

Название

Примечание

Количество

1

407220R1

PRODUCT GRAPHIC

PACKAGE, S.M.V. emblem, steel, includes 1, 3989761R, bracket, replaces 407208R1

1шт.

2

819998C1

SUPPORT

SMV emblem

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE, S.M.V. emblem film kit

1шт.

4

398976R1

BRACKET

S.M.V. mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 10
