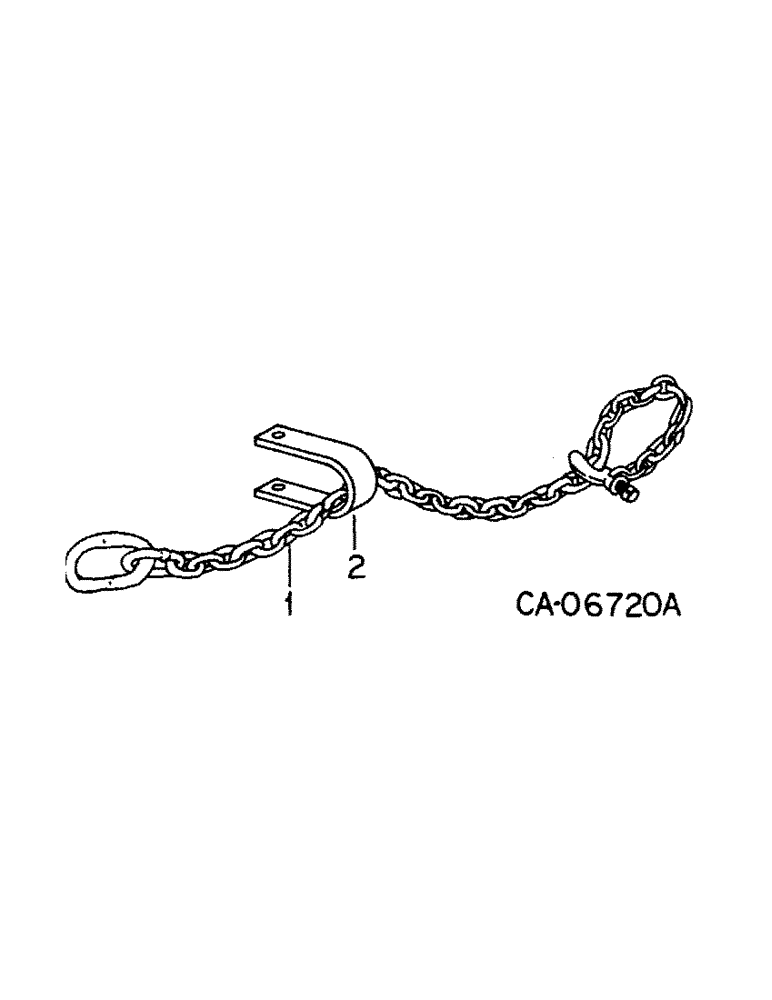

Запчасти Case IH 620 (A-17B) - SAFETY CHAIN

1

148558C1

CLEVIS

safety chain, replaces S9173A

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex lock

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 hex lock

1шт.

26512R1

WASHER

.781 x 2.000 x .164

1шт.

1

61913C92

PACKAGE

chain hardware, consists of ref. no. 1 and attaching hardware

1шт.

2

100682C2

CHAIN (AG)

CHAIN ASSY, 10,500 pound safety

1шт.
