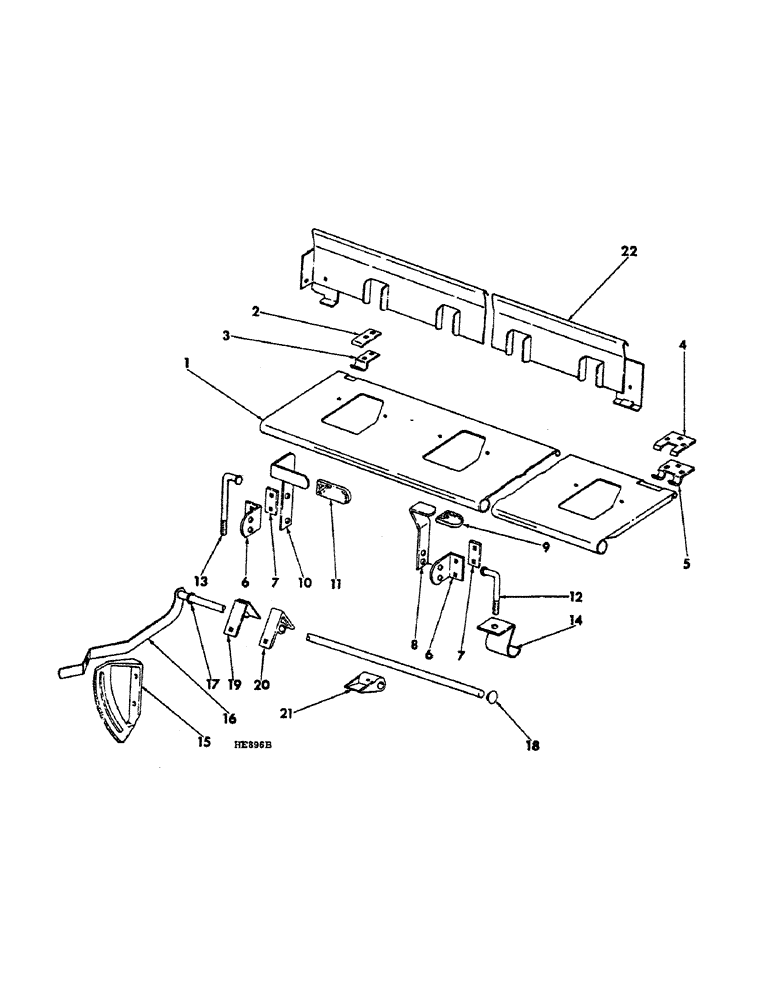

Запчасти Case IH 620 (A-14) - FERTILIZER DROP BOTTOM

1

816213C1

BOTTOM

ASSY, fertilizer drop, 14 x 6

1шт.

1

816214C1

BOTTOM

ASSY, fertilizer drop, 16 x 6

1шт.

1

815348C1

PLOW BOTTOM

BOTTOM ASSY, fertilizer drop LH, 20 x 6

1шт.

1

815349C1

PLOW BOTTOM

BOTTOM ASSY, fertilizer drop RH, 20 x 6

1шт.

1

815352C1

BOTTOM

ASSY, fertilizer drop LH, 24 x 6

1шт.

1

815353C1

BOTTOM

ASSY, fertilizer drop RH, 24 x 6

1шт.

1

816215C1

BOTTOM

ASSY, fertilizer drop LH, 20 x 7

1шт.

1

816216C1

BOTTOM

ASSY, fertilizer drop RH, 20 x 7

1шт.

1

815356C2

BOTTOM

ASSY, fertilizer drop LH, 16 x 8

1шт.

1

815357C2

BOTTOM

ASSY, fertilizer drop RH, 16 x 8

1шт.

1

816217C1

BOTTOM

ASSY, fertilizer drop LH, 24 x 7

1шт.

1

816218C1

BOTTOM

ASSY, fertilizer drop RH, 24 x 7

1шт.

1

816909C1

BOTTOM

ASSY, fertilizer drop LH, 28 x 6

1шт.

1

816910C1

BOTTOM

ASSY, fertilizer drop RH, 28 x 6

1шт.

1

816603C1

BOTTOM ASSY, fertilizer drop, 14 x 7

1шт.

2

604403R1

CLAMP

STOP, drop bottom hinge intermediate, 3 used 14 x 6, 4 used 20 x 6 & 16 x 8, 5 used 16 x 6 and 14 x 7, 6 used 24 x 6 and 20 x 7, 8 used 24 x 7 and 28 x 6

1шт.

3

604404R1

CLAMP

HINGE, drop bottom intermediate, 1 per stop

1шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT, 1/4-20 x 1 type 5 crg, 2 used per intermediate stop

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

4

815373C1

STOP

drop bottom hinge outer

2шт.

5

815374C1

HINGE

drop bottom outer

2шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT, 1/4-20 x 1 type 5 crg

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

6

603498R1

ANGLE

drop bottom lever, 5 used 14 x 6, 16 x 6 and 14 x 7, 6 used 20 x 6 and 16 x 8, 8 used 24 x 6 and 20 x 7, 10 used 24 x 7 and 28 x 6

1шт.

7

603587R1

BAR

lever angle reinforcing, 1 per angle

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg, 2 used for bar & angle

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

8

815377C1

LEVER

drop bottom short, 4 used 14 x 6, 16 x 6, 20 x 6, 14 x 7 and 16 x 8, 6 used 24 x 6 and 20 x 7, 8 used 28 x 6 and 24 x 7

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 x 9/16 flat-hd small, 1 rivet used per lever

1шт.

9

815378C1

GRIP

bottom short lever, 1 grip per short lever

1шт.

10

603501R1

LEVER

drop bottom long, 1 used 14 x 6, 16 x 6 and 14 x 7, 2 used 20 x 6, 24 x 6, 20 x 7, 24 x 7, 28 x 6 and 16 x 8

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 x 9/16 flat-hd small, 1 rivet used per lever

1шт.

11

815379C1

GRIP

bottom long lever, 1 grip per long lever

1шт.

12

603469R1

BOLT,3/8" - 16 x 3.3", Steel

drop bottom short, 1 per short lever

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

13

603470R1

BOLT,3/8" - 16 x 5.1", Steel

drop bottom long, 1 per long lever

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

14

603497R1

CATCH

drop bottom, 1 per lever

1шт.

15

816230C1

INDICATOR

fertilizer LH, 14 x 6, 16 x 6, 20 x 6, 24 x 6, 28 x 6, 14 x 7, 20 x 7, 24 x 7 and 16 x 8

1шт.

15

816231C1

INDICATOR

fertilizer RH, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 2 bolt used per indicator

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

16

ROD ASSY, gate, 14 x 6, for service order 1, 816233C1, 99.62 inch rod and, Serial Range: cut-87.62

1шт.

16

816233C1

ROD

ASSY, gate, 16 x 6 and 14 x 7

1шт.

16

ROD ASSY, gate LH, 20 x 6, for service order 1, 816233C1, 99.62 inch rod and, Serial Range: cut-64.56

1шт.

16

ROD ASSY, gate RH, 20 x 6 and 16 x 8, for service order 1, 816239C1, 85.56 inch rod and, Serial Range: cuto-64.56

1шт.

16

ROD ASSY, gate LH, 24 x 6 and 20 x 7, for service order 1, 816233C1, 99.62 inch rod and, Serial Range: cut-74.06

1шт.

16

ROD ASSY, gate RH, 24 x 6 and 20 x 7, for service order 1, 816239C1, 85.56 inch rod and, Serial Range: cut-74.06

1шт.

16

ROD ASSY, gate LH, 24 x 7 and 28 x 6, for service order 1, 816233C1, 99.62 inch rod and, Serial Range: cut-85.56

1шт.

16

816239C1

ROD

ASSY, gate RH, 24 x 7 and 28 x 6

1шт.

16

ROD ASSY, gate LH, 16 x 8, for service order 1, 816233C1, 99.62 inch rod and, Serial Range: cut-65.56

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage, 1 bolt used per gate rod

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing, 1 used per rod

1шт.

20893R1

WASHER

.343 x 1.000 x .105, 1 washer used per bolt

1шт.

17

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

fert gate rod, 1 per gate rod

1шт.

18

816848C1

PLUG

hopper end, 14 x 6, 16 x 6 and 14 x 7, machines built 1972 & since

1шт.

19

607276R2

SUPPORT

BEARING, gate rod, 5 used 14 x 6, 7 used 16 x 6 and 14 x 7, 8 used 20 x 6, 20 x 7, 24 x 7, 24 x 6 and 16 x 8, 10 used 24 x 7 & 28 x 6

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4-20 x 1/2 carriage, 1 bolt used per bearing

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

20

603455R1

LEVER GUIDE

BEARING, gate rod centre, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 carriage

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

GATE, fertilizer feed, for service, order 1, 816736C1, gate, 1, 180018, bolt & 1, 252552C1, nut, 1 used per fertilizer feed

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 sq-hd cup-pt set, 1 used per gate

1шт.

21

816736C1

GATE ASSY

GATE, fertilizer feed, 1 used per fertilizer feed, machines built 1974 & since

1шт.

180018

CONNECTING LINK

1/4-20 x 5/8 hex-hd, 1 bolt used per gate

1шт.

252552C1

NUT

1/4-20 tab weld, not welded, 1 nut used per bolt

1шт.

22

816247C1

PANEL ASSY, back, 14 x 6

1шт.

22

816248C1

PANEL

ASSY, back, 16 x 6

1шт.

22

816249C1

PANEL

ASSY, back LH, 20 x 6

1шт.

22

816250C1

PANEL

ASSY, back RH, 20 x 6

1шт.

22

816251C1

PANEL

ASSY, back LH, 24 x 6

1шт.

22

816252C1

PANEL

ASSY, back RH, 24 x 6

1шт.

22

816253C1

PANEL

ASSY, back LH, 20 x 7

1шт.

22

816254C1

PANEL

ASSY, back RH, 20 x 7

1шт.

22

816255C1

PANEL

ASSY, back LH, 24 x 7

1шт.

22

816256C1

PANEL

ASSY, back RH, 24 x 7

1шт.

22

816605C1

PANEL ASSY, back, 14 x 7

1шт.

22

816905C1

PANEL

ASSY, back LH, 28 x 6

1шт.

22

816906C1

PANEL

ASSY, back RH, 28 x 6

1шт.

22

819095C1

PANEL

ASSY, back LH, 16 x 8

1шт.

22

819096C1

PANEL ASSY, back RH, 16 x 8

1шт.
