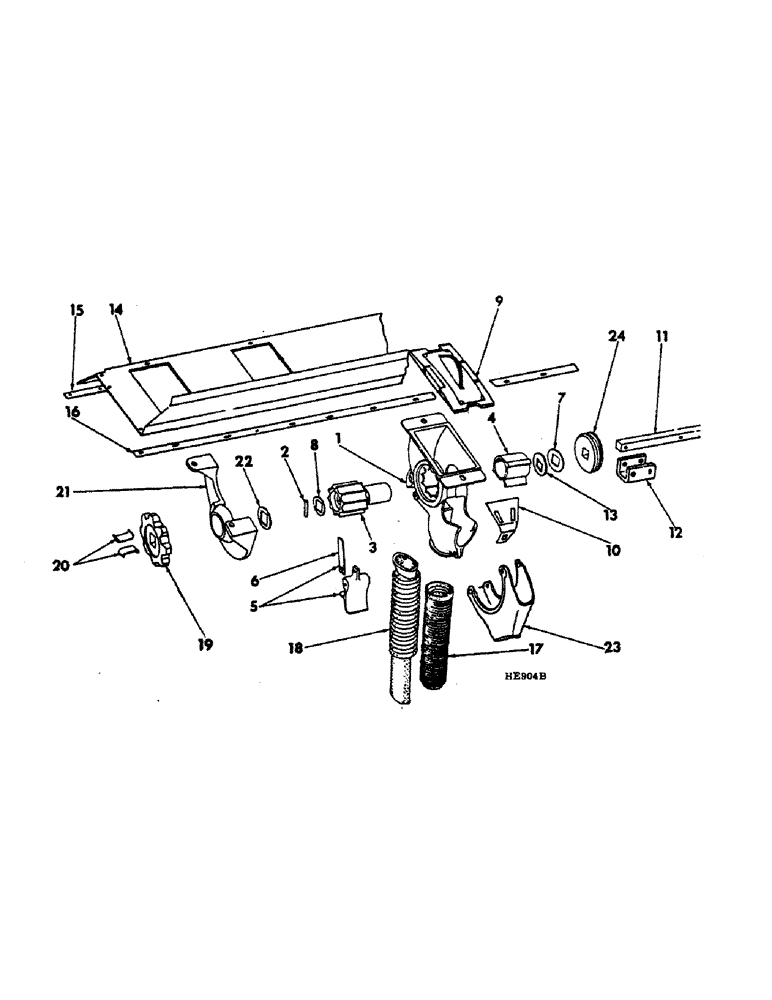

Запчасти Case IH 620 (A-12) - GRAIN FEED SHAFT
№
Артикул
Название
Примечание
Количество
1
603816R92
CUP
ASSY, fluted feed, includes 1, 603295R91, cup assy, 1, 603111R1, roll, 1, 603112R1, block and 3, 602106R1, washer, 1 per feed
1шт.
1
603295R92
CUP
ASSY, fluted feed, less block and roll, 1 used per feed cup assy
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
2 used per feed cup assy Hex, 5/16"-18 x 1 1/4", G5
1шт.
120376
NUT,5/16"-18, G5
1 used per bolt 5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, , 1 used per bolt 5/16"
1шт.
619855R1
WASHER
.344 x .750 x .054
1шт.
2
603134R1
PIN,4.76mm OD x 29.37mm L
feed cup, 1 used per feed cup
1шт.
3
603111R1
ROLLER
ROLL, fluted, 1 used per feed cup
1шт.
4
603112R1
BLOCK
shut-off, 1 used per feed cup
1шт.
5
603108R21
BOTTOM
ASSY, feed cup dump, includes 1, 603178R1, latch and 1, 106883, rivet, 1 used per feed cup assy
1шт.
112007R1
PIN
3/16 x 3 cotter, 1 per bottom
1шт.
6
603178R1
LATCH
feed cup dump bottom, 1 used per feed cup assy
1шт.
106883
RIVET,Truss Hd, 3/16" x 3/8"
1 rivet used per latch Truss Hd, 3/16" x 3/8"
1шт.
7
N11720
WASHER
21/32 sq x 1-1/2 x 12 ga, 1 used per feed cup assy
1шт.
8
603231R1
SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk
fluted feed cup spring, 1 used per feed cup assy
1шт.
9
818335C1
COVER ASSY
PLATE, cover, 1 used per feed cup assy
1шт.
10
606034R1
GUARD
WINDSHIELD, grain feed, 1 per feed cup
1шт.
11
816123C2
BAR
feed shaft, 14 x 6
1шт.
11
816124C2
BAR
feed shaft, 16 x 6
1шт.
11
816125C2
BAR
feed shaft LH, 20 x 6
1шт.
11
813126C2
TUBE
BAR, feed shaft RH, 20 x 6
1шт.
11
816127C3
BAR
feed shaft LH, 24 x 6
1шт.
11
816128C2
BAR
feed shaft RH, 24 x 6
1шт.
11
816896C2
BAR
feed shaft LH, 28 x 6
1шт.
11
816127C3
BAR
feed shaft RH, 28 x 6
1шт.
11
816598C1
BAR, feed shaft, 14 x 7
1шт.
11
816129C2
BAR
feed shaft LH, 20 x 7
1шт.
11
816130C2
BAR
feed shaft RH, 20 x 7
1шт.
11
816131C2
BAR
feed shaft LH, 24 x 7
1шт.
11
816132C2
BAR
feed shaft RH, 24 x 7
1шт.
11
819101C2
BAR
feed shaft LH, 16 x 8
1шт.
11
819102C2
BAR
feed shaft RH, 16 x 8
1шт.
108638
COTTER PIN,3/16" x 1 1/8"
Pin, Split (Cotter), , 1 used per feed cup assy 3/16" x 1 1/8"
1шт.
12
816133C1
CHANNEL
feed shaft coupling, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8
1шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8-16 x 1-1/2 hex-hd
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
13
602106R1
SQ HOLE WASHER
21/32 sq x 1-11/64 x 32 ga
1шт.
14
816134C1
SECTION, grain bottom partition, 14 x 6
1шт.
14
816135C1
SECTION, grain bottom partition, 16 x 6
1шт.
14
816136C1
SECTION, grain bottom partition, 20 x 6
1шт.
14
816137C1
SECTION, grain bottom partition, 24 x 6
1шт.
14
816599C1
SCETION, grain bottom partition, 14 x 7
1шт.
14
816138C1
SECTION, grain bottom partition, 20 x 7
1шт.
14
816139C1
SECTION, grain bottom partition, 24 x 7, machines, Serial Range: prior-1973
1шт.
180116
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
3/8-16 x 1/2 hex-hd, 14 used 14 x 6, 16 x 6 and 14 x 7, 15 used 20 x 6, 17 used 24 x 6 and 24 x 7, 18 used 20 x 7
1шт.
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
3/8-16 x 3/4 hex-hd, 14 used 14 x 6 and 14 x 7, 16 used 14 x 7, 15 used 20 x 6, 18 used 24 x 6, 20 x 7 and 24 x 7
1шт.
120377
NUT,3/8" - 16, Gr 5
1 used per bolt 3/8"-16, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 1 per bolt 3/8"
1шт.
14
816980C1
ASSEMBLY
SECTION, grain bottom partition, 14 x 6
1шт.
14
816981C1
ASSEMBLY
SECTION, grain bottom partition, 16 x 6
1шт.
14
816982C1
ASSEMBLY
SECTION, grain bottom partition, 20 x 6
1шт.
14
816983C1
VALVE BLOCK
SECTION, grain bottom partition, 24 x 6
1шт.
14
816986C1
ASSEMBLY
SECTION, grain bottom partition, 20 x 7
1шт.
14
816987C2
ASSEMBLY
SECTION, grain bottom partition, 24 x 7
1шт.
14
816985C1
SECTION, grain bottom partition, 14 x 7
1шт.
14
816984C2
ASSEMBLY
SECTION, grain bottom partition, 28 x 6
1шт.
14
819103C1
SECTION, grain bottom partition, 16 x 8, machines built 1973 & since
1шт.
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
3/8-16 x 3/4 hex-hd, 11 used 14 x 6, 18 used 14 x 7, 13 used 16 x 6, 15 used 20 x 6, 27 used 24 x 6, 20 x 7, 28, 24 x 7, 28 x 6, 23 used 16 x 8
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8-16 x 3/4 crg 2, 16 x 8
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8-16 x 3/4 crg 2, 20 x 6
1шт.
120377
NUT,3/8" - 16, Gr 5
1 used per bolt 3/8"-16, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 1 per bolt 3/8"
1шт.
15
816872C1
BAR, feed cup guide front, 14 x 6
2шт.
15
816973C1
BAR
feed cup guide front, 16 x 6
2шт.
15
816974C1
BAR
feed cup guide front, 20 x 6
2шт.
15
816975C1
BAR
feed cup guide front, 24 x 6
2шт.
15
816978C1
BAR
feed cup guide front, 20 x 7
2шт.
15
816979C3
BAR
feed cup guide front, 24 x 7
2шт.
15
816977C1
BAR, feed cup guide front, 14 x 7
2шт.
15
816976C1
BAR
feed cup guide front, 28 x 6
2шт.
15
819146C1
BAR
feed cup guide front, 16 x 8
2шт.
16
816140C1
BAR
feed cup guide rear, 14 x 6
2шт.
16
816141C1
BAR
feed cup guide rear, 16 x 6
2шт.
16
815319C1
BAR
feed cup guide rear, 20 x 6
2шт.
16
815320C1
BAR
feed cup guide rear, 24 x 6
2шт.
16
816142C1
BAR
feed cup guide rear, 20 x 7
2шт.
16
816143C3
BAR
feed cup guide rear, 24 x 7
2шт.
16
816600C1
BAR, feed cup guide rear, 14 x 7
2шт.
16
816897C1
BAR
feed cup guide rear, 28 x 6
2шт.
16
819089C1
BAR, feed cup guide rear, 16 x 8
2шт.
17
606146R2
TUBE,1.25" ID, 1.906" OD, 44, 9" Length
1шт.
TUBE, grain seed, for use on machines equipped w/cast boot furrow openers built prior to the 1975 season, for use on machines equipped w/single disk furrow opener, tube required to have 38 convolutions, approximately 6-7/16 inch minimum length and 26-7/16 inch maximum length, 1 used per feed cup assy
1шт.
18
819354C1
TUBE
grain seed, for use on machines equipped w/steel boot furrow openers built 1975 season and since, tube required to have 36 convolutions, approximately 11.40 inch minimum length and 31.40 inch maximum length, 1 per furrow opener
1шт.
19
815324C1
DRIVE SPROCKET
SPROCKET, 10T grass seed drive, on grain feed shaft main hopper, 1 per drive
1шт.
20
815803C1
CLIP
sprocket retaining, 2 per sprocket
1шт.
21
815499C2
HANGER
grass seed drive sprocket, 1 per sprocket
1шт.
180078
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
5/16-18 x 7/8 hex-hd, 2 bolts used per hanger
1шт.
120376
NUT,5/16"-18, G5
1 used per bolt 5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, , 1 used per bolt 5/16"
1шт.
22
N11791
WASHER
grass seed drive sprocket, 1 per sprocket
1шт.
23
815805C91
CUP
PACKAGE, grain seed viewing cup, individual cups not serviced separately, package consists of 24 viewing cups and 48 cotter pins
1шт.
112007R1
PIN
3/16 x 3 pltd cotter, 2 cotter used per cup
1шт.
24
604420R1
GEAR
acreage counter worm, machines, Serial Range: prior-1973
1шт.
Выбрано товаров: 94
