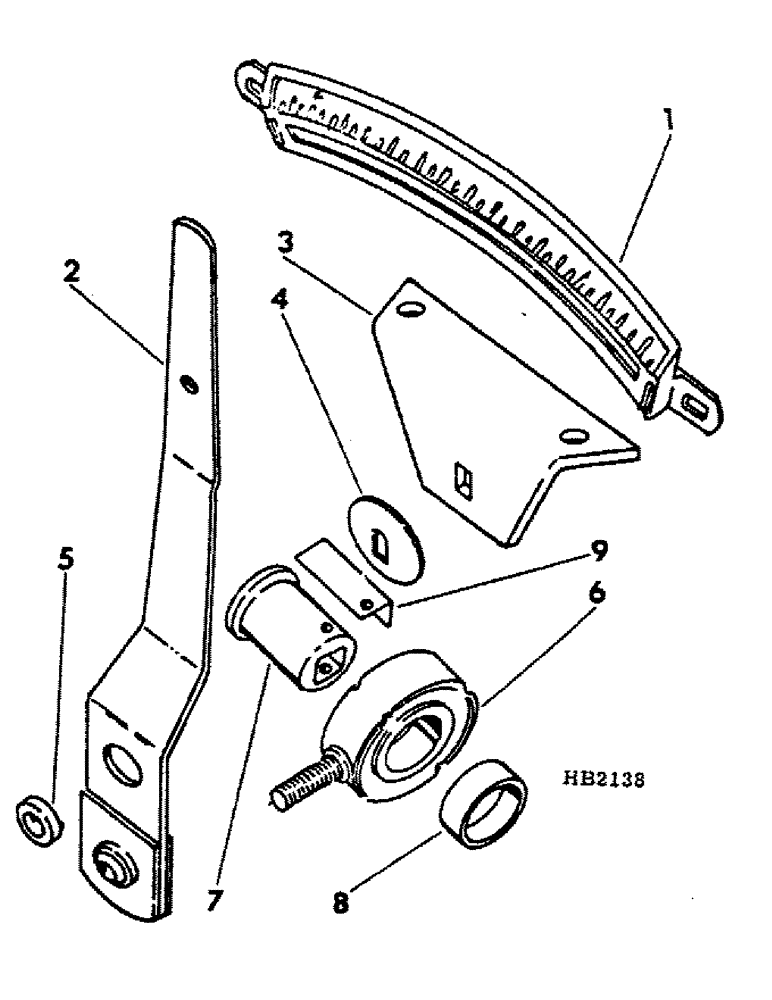

Запчасти Case IH 620 (A-11) - GRAIN FEED INDICATOR AND SHIFTER

1

603127R1

INDICATOR

grain

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

815179C1

LEVER

ASSY, grain feed shifter

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg

1шт.

142745

NUT, WING

NUT, 5/16-18 wing

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

3

BRACKET, shifter lever, prior to 1975 season order 1, 819361C1, bracket, 1, 819263C1, washer & 1, 819264C1, bushing

1шт.

3

819361C1

BRACKET

shifter lever, 1975 season and since

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 type 5 crg

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 type 5 crg

2шт.

NLS

NO LONGER SERVICED

5/16-18 hex jam

2шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

819263C1

WASHER

shifter stop, 1975 season and since

1шт.

5

819264C1

BUSHING

shifter stop, 1975 season and since

1шт.

6

609384R91

THRUST BEARING

ASSY, feed shifter, includes 1, 609388R1, bushing, order bearing assy, 1279927C91 and spacer 609388R1

1шт.

6

1279927C91

BEARING ASSY

feed shifter, w/o spacer

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

7

609388R1

SPACER

BUSHING, bearing

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

8

609389R1

SPACER

nylon bushing

1шт.

9

816573C1

SHIM

lever .005

1шт.
