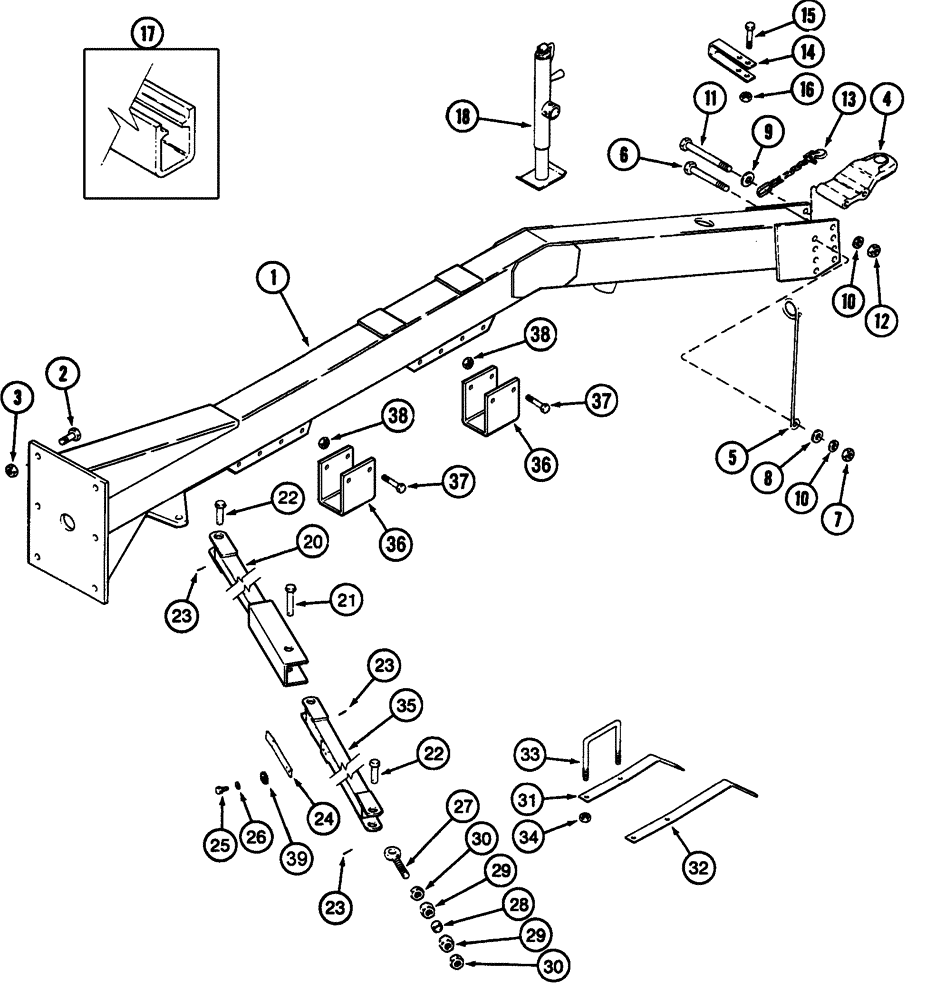

Запчасти Case IH 5500 (9-54) - TONGUE AND TENSION BARS (09) - CHASSIS

1

235877A2

TOW BAR

tongue assembly, cart 5500

1шт.

2

413-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5

8шт.

3

9849633

NUT,1"-8, G5

8шт.

4

1973237C1

TOW BAR

Hitch Tongue

1шт.

5

1279237C1

SUPPORT

hose

1шт.

6

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

1шт.

7

280954

NUT,3/4"-10, G5

1шт.

8

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

9

1969255C1

WASHER

13/16" x 3 1/2" x .375

1шт.

10

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

11

426-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

1шт.

12

280954

NUT,3/4"-10, G5

1шт.

13

63506C3

CHAIN (AG)

20,200 lb safety

1шт.

14

1279163C1

CLEVIS COUPLING

safety chain

1шт.

15

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

16

86639566

NUT,5/8"-11, GB

1шт.

17

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

3шт.

18

121558A1

JACK

assembly 5000 pound topwind

1шт.

18

1973399C1

JACK

7000 LBS

1шт.

20

1973241C1

TUBE

tension

2шт.

21

439-52080

HEADED PIN,1 1/4" x 5"

2шт.

22

439-52064

HEADED PIN,1 1/4" x 4"

4шт.

23

432-2032

COTTER PIN,5/16" x 2"

6шт.

24

1980764C1

SPRING

tension bar

2шт.

25

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

26

80681

LOCK WASHER,5/16"

4шт.

27

1973136C1

EYEBOLT

BOLT, EYE 1.25 UNC X 10.44 YZD 8.94'' LG THREAD, 1.26 EYELET

2шт.

28

1986188C1

SPACER

pipe

2шт.

29

9849649

NUT,1 1/4"-7, G5

4шт.

30

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

4шт.

31

1980796C1

SUPPORT TUBE

tube support

1шт.

32

1344891C1

SUPPORT TUBE,767.74 mm Length

tube support hardened

1шт.

33

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

34

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

35

1973245C1

TUBE

tension

2шт.

36

199931A1

CHANNEL

tire stop

2шт.

37

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

38

86512371

SERRATED NUT,Flg, USR, 1/2"-13

8шт.

39

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.
