Запчасти Case IH 5500 (9-52) - MARKER DISC (09) - CHASSIS

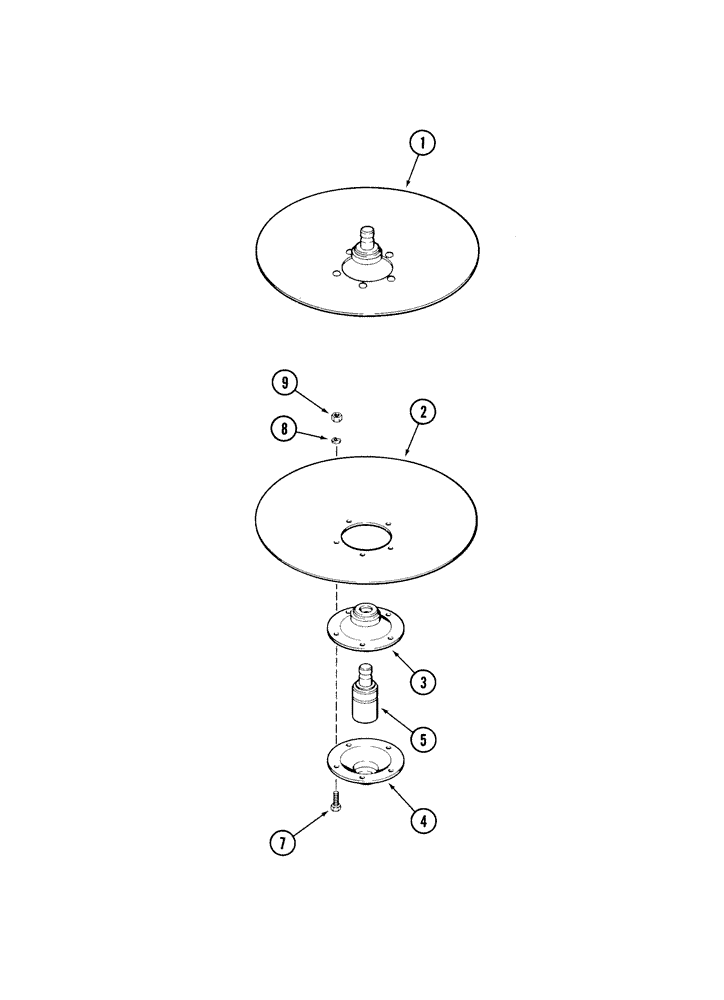

Схема запчастей Case IH 5500 - (9-52) - MARKER DISC (09) - CHASSIS
4
1
7
5
3
8
2
9

Артикул

Название

Примечание

Количество

1

1337981C2

DISC

assembly - marker

2шт.

2

31283R1

DISC,13", FLAT CENTER

Marker and Covering

1шт.

3

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

Inner Disc

1шт.

4

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

Outer Disc

1шт.

5

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

Koyo

1шт.

6

NSS

NOT SOLD SEPARAT

RIVET, Retaining, Order: Ref. 7, 8, and 9 For Service

5шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

10шт.

8

80682

LOCK WASHER,1/4"

10шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

10шт.

Выбрано товаров: 9
