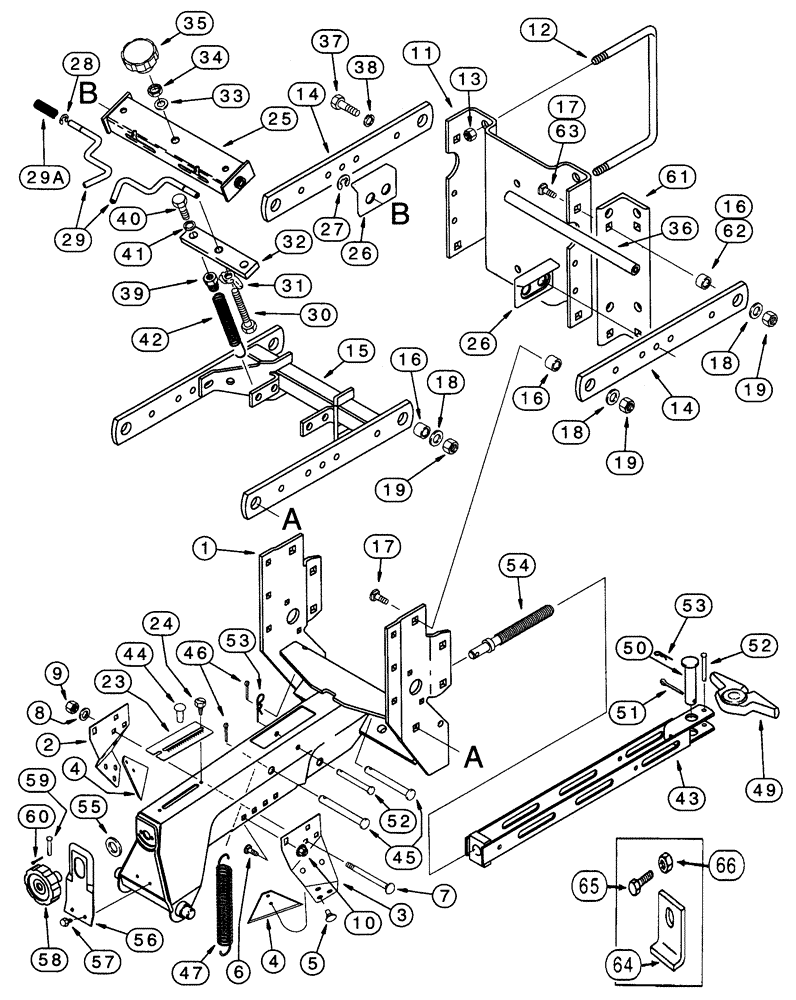

Запчасти Case IH 5500 (9-36) - ROW UNIT FRAME - WITH QUICK ADJUST (09) - CHASSIS

1

1547308C3

FRAME

row unit planter

1шт.

2

147436C94

SCRAPER

blade LH

1шт.

3

1978897C2

SCRAPER

blade RH

1шт.

4

436705A1

BLADE

scraper

1шт.

5

147274C1

RIVET,4.78mm OD x 10mm L

fh 3/16" x 3/8" special

2шт.

6

280647

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

7

280622

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

1шт.

8

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

1шт.

9

280736

NUT,5/16"-18, GC

1шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

11

141728C3

CHANNEL

head bracket

1шт.

12

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

14

436740A1

BAR

link, regular upper

2шт.

14a

436743A1

LINK

extension, upper bar

2шт.

15

436741A1

SUPPORT

linkage lower regular (The distance from mount hole to back of crosstube is 72 mm)

1шт.

15a

123145A2

SUPPORT

lower link

1шт.

16

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

link pivot

8шт.

16

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

8шт.

17

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

8шт.

18

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

19

86992215

LOCK NUT,1/2"-13, GC

8шт.

23

147326C2

GAUGE

depth, Years: -21-MAY-01

1шт.

23

413706A1

GAUGE

depth, Start Year: 22-MAY-01

1шт.

24

86624112

SELF-TAP SCREW,HWH, #10 - 24 x 1/2"

2шт.

25

141145A1

CHANNEL

support spring mount

1шт.

26

436746A1

BRACKET

spring pressure adjuster

2шт.

27

505026

SNAP RING,#75, .574" Dia, E-Type

2шт.

28

86624102

SNAP RING,#37, .300" Dia, E-Type

2шт.

29

141154A1

LEVER

3/8" od bent, quick adjust

2шт.

29a

376768R1

SPRING

C .048" wire x .5" od x 1.52" long

2шт.

30

86624004

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5, Full Thd

1шт.

31

129-400

WING NUT,1/2"-13

1шт.

32

141156A1

PLATE

spring adjustment

1шт.

33

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

34

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

35

H239004

KNOB

plastic, round 1/2"-13 hole

1шт.

36

183502A1

SPACER

shaft 3/4" od x 11.85" long

1шт.

37

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

38

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

39

436747A1

PLUG

spring 1/2"-13

2шт.

40

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

42

436748A1

SPRING

E .244" wire x 1.5" od x 6.64" long

2шт.

43

147276C5

BAR

tension

1шт.

44

1277597C1

STUD

barbed #12 x 3/4" RH

1шт.

45

86624072

HEADED PIN,12.7mm OD x 69.85mm L

2шт.

46

394818

COTTER PIN,M5 x 25

2шт.

47

436715A1

SPRING

E .244" wire x 1.48" od x 9.8" long

1шт.

49

436712A1

BRACKET

wobble

1шт.

50

86624066

CLEVIS PIN,19.05mm OD x 45.62mm L

1шт.

51

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

52

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

pointed, 1/4" x 2 3/4"

2шт.

53

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

54

1279684C1

ROD

depth adjusting

1шт.

55

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

56

436714A1

STRAP

detent

1шт.

57

86624112

SELF-TAP SCREW,HWH, #10 - 24 x 1/2"

2шт.

58

1279740C91

KNOB

detent, depth adjusting

1шт.

59

86624076

HEADED PIN,1/4" x 1 1/4", G5

1шт.

60

87394

COTTER PIN,1/8" x 1/2"

1шт.

61

127475A2

ANGLE

row unit mounting extension

2шт.

62

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

4шт.

63

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

64

234399A1

STOP

ROW UNIT

1шт.

65

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

66

88902

NUT,3/8"-16

1шт.
