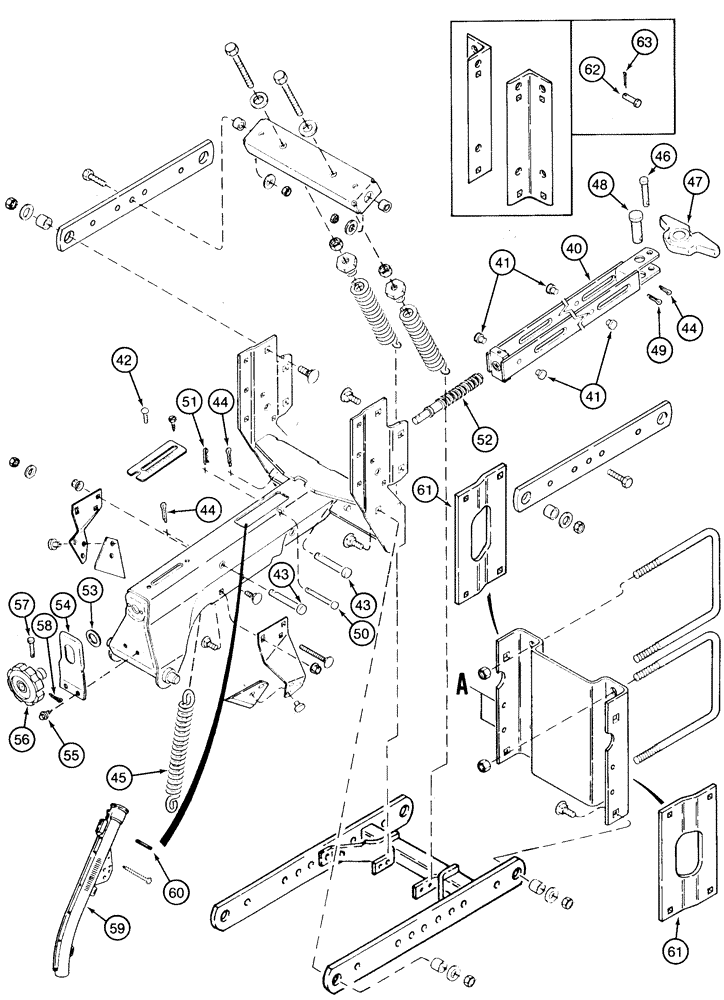

Запчасти Case IH 5500 (9-34) - ROW UNIT FRAME - WITHOUT QUICK ADJUST (09) - CHASSIS

40

147276C5

BAR

tension

1шт.

41

147483C1

PLUG

HOLE

4шт.

42

1277597C1

STUD

barbed #12 x 3/4" RH

1шт.

43

86624072

HEADED PIN,12.7mm OD x 69.85mm L

2шт.

44

394818

COTTER PIN,M5 x 25

3шт.

45

436715A1

SPRING

E .244" wire x 1.48" od x 9.8" long

1шт.

46

86624070

HEADED PIN,12.7mm OD x 38.1mm L

1шт.

47

436712A1

BRACKET

wobble

1шт.

48

86624066

CLEVIS PIN,19.05mm OD x 45.62mm L

1шт.

49

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

50

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

pointed, 1/4" x 2 3/4"

1шт.

51

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

52

1279684C1

ROD

depth adjusting

1шт.

53

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

54

436714A1

STRAP

detent

1шт.

55

86624112

SELF-TAP SCREW,HWH, #10 - 24 x 1/2"

2шт.

56

1279740C91

KNOB

detent, depth adjusting

1шт.

57

86624076

HEADED PIN,1/4" x 1 1/4", G5

1шт.

58

80756

COTTER PIN,1/8" x 3/4"

1шт.

59

1986373C1

TUBE

assembly, air diffuser

1шт.

60

87524

LOCK PIN,6.35mm OD x 34.92mm L, Slotted

1шт.

61

130033A2

EXTENSION

HEAD BRACKET

1шт.

62

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

63

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.
