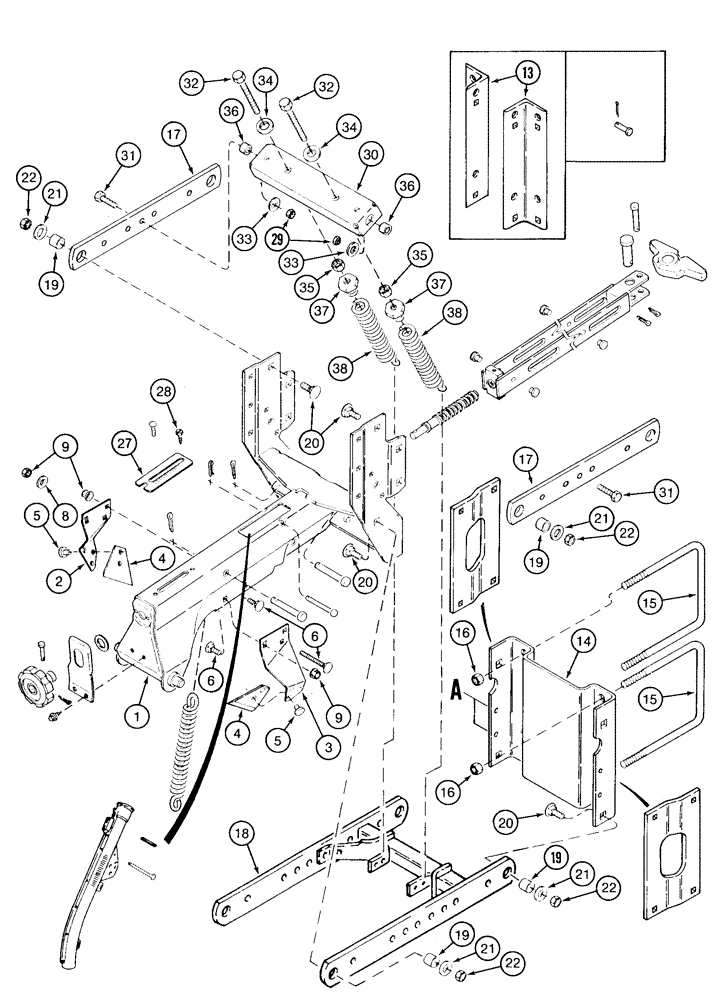

Запчасти Case IH 5500 (9-32) - ROW UNIT FRAME - WITHOUT QUICK ADJUST (09) - CHASSIS

1

1547308C3

FRAME

row unit planter

1шт.

2

147436C94

SCRAPER

blade LH

1шт.

3

1978897C2

SCRAPER

blade RH

1шт.

4

436705A1

BLADE

scraper

1шт.

5

147274C1

RIVET,4.78mm OD x 10mm L

fh 3/16" x 3/8" special

2шт.

6

111-260

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

4шт.

6

280622

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

1шт.

8

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

1шт.

9

280736

NUT,5/16"-18, GC

1шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

13

127475A2

ANGLE

row unit mounting extension

2шт.

14

141728C3

CHANNEL

head bracket

1шт.

15

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

16

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

17

436740A1

BAR

link, regular upper

2шт.

17

436743A1

LINK

extension, upper bar

2шт.

18

436741A1

SUPPORT

linkage lower regular (The distance from mount hole to back of crosstube is 72 mm)

1шт.

18

123145A2

SUPPORT

lower link

1шт.

19

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

link pivot

8шт.

19

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

8шт.

20

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

8шт.

20

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

8шт.

21

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

22

86992215

LOCK NUT,1/2"-13, GC

8шт.

27

147326C2

GAUGE

depth, Years: -21-MAY-01

1шт.

27

413706A1

GAUGE

depth, Start Year: 22-MAY-01

1шт.

28

86624112

SELF-TAP SCREW,HWH, #10 - 24 x 1/2"

2шт.

29

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

30

141729C1

CHANNEL

SPRING MTD

1шт.

31

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

149439C1

SPECIAL BOLT,Spcl, Hex, 1/2" - 13 x 4.25", Gr 5

HEX HD.

2шт.

33

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

2шт.

34

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

2шт.

35

280431

NUT,1/2"-13, G5

2шт.

36

141730C1

SPACER,10.34mm ID x 19.05mm OD x 7mm L

SPRING MTD

2шт.

37

436747A1

PLUG

spring 1/2"-13

2шт.

38

436748A1

SPRING

E .244" wire x 1.5" od x 6.64" long

2шт.
