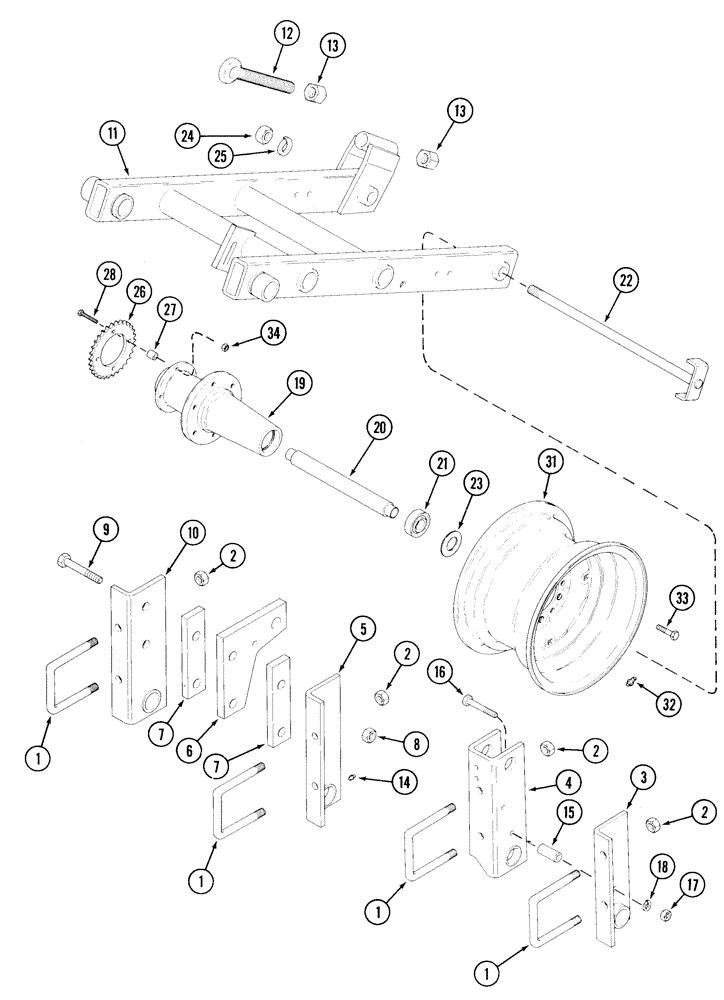

Запчасти Case IH 5500 (9-28) - MAIN DRIVE WHEELS AND MOUNTING (09) - CHASSIS

1

58152C2

U-BOLT,U, 1" - 8 x 231mm

BOLT "U" us 1"-8 x 7" wide x 9" deep, 1 3/4'' thread

8шт.

1

297817A1

U-BOLT

BOLT "U" US 1.125 7.06W 9.25D UNC ZND 2'' THREAD

8шт.

2

86624025

NUT,1 1/8"-7, G5

16шт.

2

9849633

NUT,1"-8, G5

16шт.

3

297929A1

SUPPORT

drive wheel RH

2шт.

4

297930A1

SUPPORT

drive wheel and clutch

2шт.

5

297938A1

SUPPORT

drive wheel

2шт.

6

95735C2

ANCHOR

plate, cylinder

2шт.

7

1973137C1

BAR

Flat Spacer

4шт.

8

86511609

NUT,1"-8, G8

4шт.

9

326-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

4шт.

10

297937A1

SUPPORT

drive wheel LH

2шт.

11

97659C3

FRAME

drive wheel

2шт.

12

1973136C1

EYEBOLT

BOLT, EYE 1.25 UNC X 10.44 YZD 8.94'' LG THREAD, 1.26 EYELET

2шт.

13

9849649

NUT,1 1/4"-7, G5

4шт.

14

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

8шт.

15

657114R1

SPACER,3/4" X-Strng Pipe x 2 3/8"

4шт.

16

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

4шт.

17

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

18

12034871

WASHER

5/8"

4шт.

19

100039C1

HUB

wheel

2шт.

20

100041C1

SPACER

Hub

2шт.

21

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

ball

4шт.

22

1973141C2

CENTER AXLE

1" od hardened drive wheel

2шт.

23

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

4шт.

24

9849633

NUT,1"-8, G5

2шт.

25

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

26

100040C1

DRIVEN SPROCKET

30 tooth 6.32" od

2шт.

27

1960298C1

SPACER

7/16" x 3/4" x 3/4" long

2шт.

28

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

31

1277504C1

RIM

WHEEL 15 x 10 6 hole +1 1/4" offset

2шт.

32

810769C1

VALVE

tire stem VS/936

2шт.

33

277538A1

BOLT,1/2" - 20 x 1.42"

hex conical, 1/2"-20 x 1 5/32"

12шт.

34

88902

NUT,3/8"-16

4шт.
