Запчасти Case IH 5500 (9-18) - SEED FEED (09) - CHASSIS

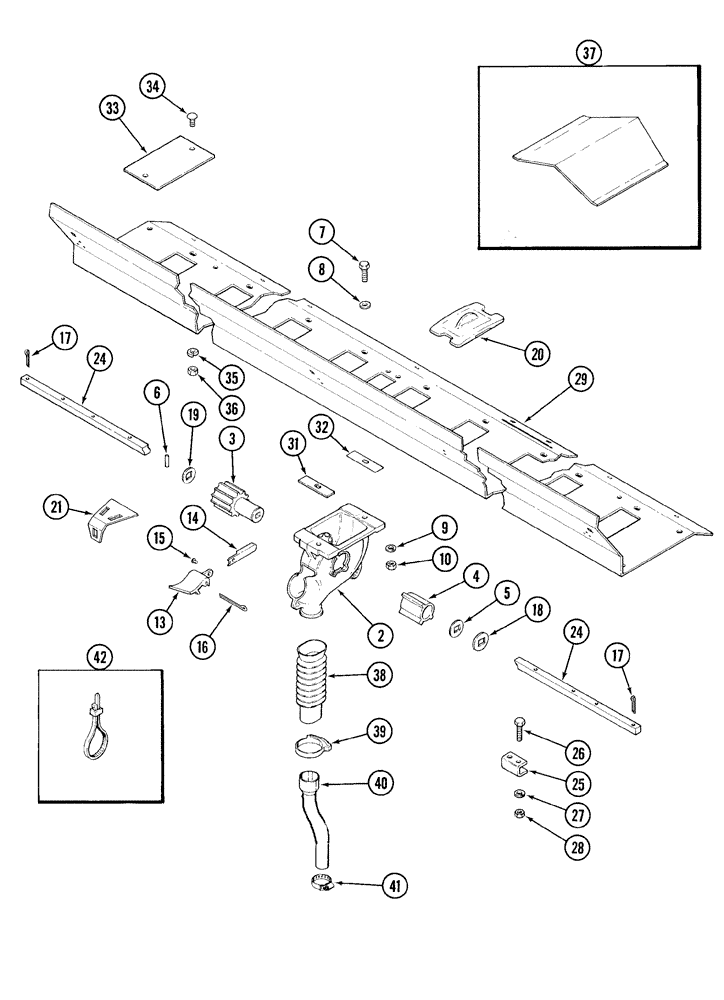

Схема запчастей Case IH 5500 - (9-18) - SEED FEED (09) - CHASSIS
17
34
24
36
4
39
19
41
28
27
17
24
7
32
6
10
40
26
37
42
15
18
3
21
13
38
25
16
31
9
8
14
29
20
33
2
5
35

Артикул

Название

Примечание

Количество

0

603816R93

CUP

fluted feed service

24шт.

0

8-27510

INSTRUCTION

card, fluted feed cup

1шт.

2

NSS

NOT SOLD SEPARAT

CUP, Feed

1шт.

3

603111R1

ROLLER

fluted

1шт.

4

603112R1

BLOCK

shut off plain

1шт.

5

602106R1

SQ HOLE WASHER

.656 sq id 1.17 pln x .0097 tk

4шт.

6

603134R1

PIN,4.76mm OD x 29.37mm L

3/16" x 1 5/32" long

24шт.

7

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

48шт.

8

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

48шт.

9

80681

LOCK WASHER,5/16"

48шт.

10

9635082

NUT,5/16" - 18, Gr 5

48шт.

13

603108R21

BOTTOM

assembly, feed cup dump

24шт.

14

603178R1

LATCH

bracket bottom dump

1шт.

15

49-36

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

16

432-1248

COTTER PIN,3/16" x 3"

24шт.

17

394818

COTTER PIN,M5 x 25

24шт.

18

N11720

WASHER

square 21/32" id x 1 1/2" od x 3/32" thick

24шт.

18

602106R1

SQ HOLE WASHER

.656 sq id 1.17 pln x .0097 tk

72шт.

19

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

spring 21/32" sq id

24шт.

20

818335C1

COVER ASSY

GRAIN FEED SHUT OFF

24шт.

21

606034R1

GUARD

WINDSHIELD, GRAIN FEED CUP

24шт.

24

91007C1

BAR

FEED SHAFT RH, Serial Range: -CKB0030000

1шт.

Ref. 24, 91007C1 replaced by 281271A1.

1шт.

24

352913A1

BAR

shaft square 5/8" x 81.7" with holes

1шт.

24

90932C1

BAR

FEED SHAFT LH, Serial Range: -CKB0030000

1шт.

Ref. 24A, 90932C1 replaced by 281270A1.

1шт.

24

352911A1

BAR

shaft square 5/8" x 85.3" with holes

1шт.

25

816133C1

CHANNEL

feed shaft coupler

2шт.

26

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

24шт.

28

9628503

NUT,3/8"-16, G5

24шт.

29

90935C3

BOTTOM

grain partition, 26 x 7

1шт.

29

349468A2

BOTTOM

SECTION, GRAIN 12X15, Start Serial: CKB0030001

2шт.

31

90987C1

BAR

FEED CUP SPACER FRT

1шт.

32

90988C1

BAR

FEED CUP SPACER RR

1шт.

33

1986019C1

COVER

HOLE

14шт.

34

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

28шт.

35

80681

LOCK WASHER,5/16"

28шт.

36

9635082

NUT,5/16" - 18, Gr 5

28шт.

37

134822A1

BOTTOM

V

11шт.

38

101458A2

PLASTIC-RUBBER TUBE,20.6,38 mm Length

grain rubber

1шт.

39

106781A1

CLAMP,35.7mm - 41.3mm

hose, nylon 1.41-1.63" id

1шт.

40

351118A1

HYD TUBE,25.4 mm OD, 280, 41 mm Length

soybean extended row unit

1шт.

41

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

42

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

Выбрано товаров: 45
