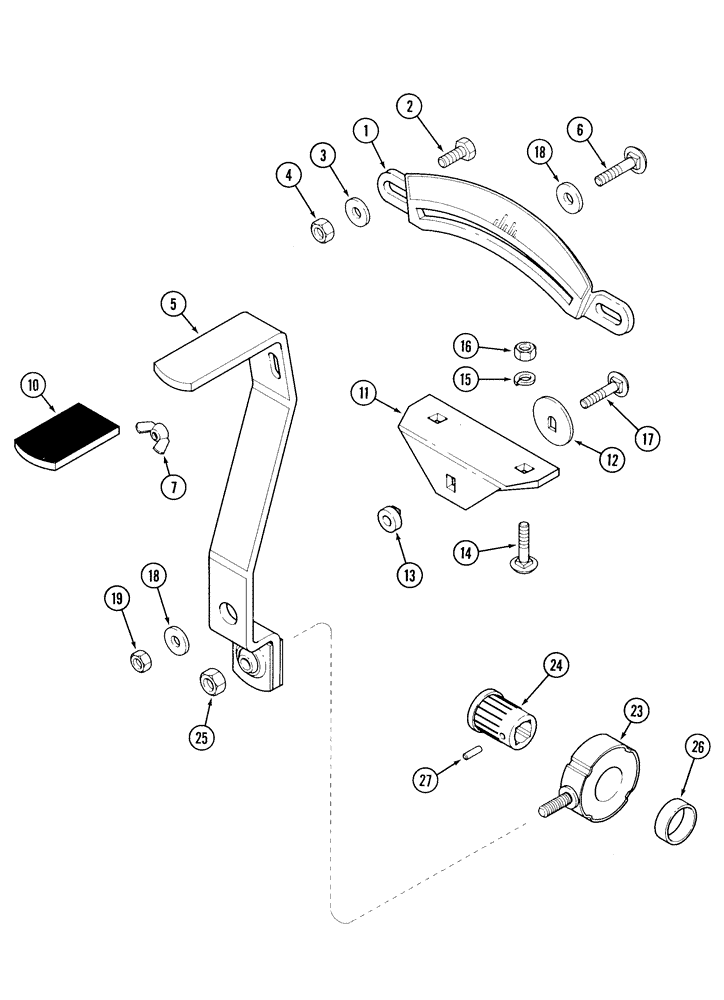

Запчасти Case IH 5500 (9-14) - SEED FEED SHIFTER AND INDICATOR (BSN CKB0030000) (09) - CHASSIS

1

596907R1

INDICATOR

GRAIN FEED

2шт.

2

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

3

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

1263998C1

LEVER ASSY.

GRAIN FEED SHIFTER

2шт.

6

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

7

80801

WING NUT

5/16"-18

2шт.

10

842315C1

GRIP

KNOB, LEVER

2шт.

11

1279934C1

SUPPORT

SHIFTER LEVER -BRACKET

2шт.

12

819263C1

WASHER

1 5/8" od x .134" thick

2шт.

13

95889C1

BUSHING

SHIFTER STOP

2шт.

14

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

16

9628503

NUT,3/8"-16, G5

4шт.

17

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

18

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

4шт.

19

86637931

JAM NUT,Jam, 5/16"-18, G5

4шт.

23

1279109C91

BEARING ASSY

assy square bore pln feed shifter

2шт.

23

NSS

NOT SOLD SEPARAT

BEARING, Feed Shifter, Order 1279109C91 Bearing Assembly

2шт.

24

1279145C1

SPACER

feed shifter bearing

2шт.

25

88902

NUT,3/8"-16

2шт.

26

609389R1

SPACER

1 3/8"od 1 3/16"id

2шт.

27

438-31220

PIN,3/16" x 1 1/4", Coiled

2шт.
