Запчасти Case IH 5500 (9-12) - HOPPER (09) - CHASSIS

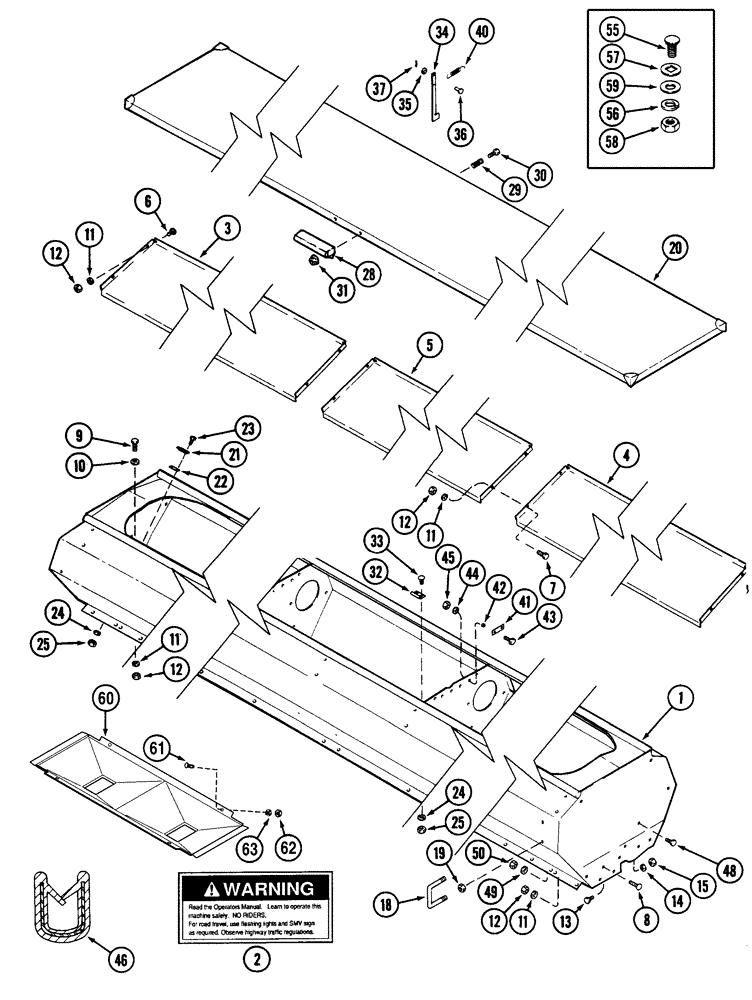

Схема запчастей Case IH 5500 - (9-12) - HOPPER (09) - CHASSIS
14
60
12
37
12
44
20
8
6
43
1
23
11
57
61
22
42
4
58
32
25
31
11
12
46
36
9
55
7
18
19
11
12
3
29
50
48
56
13
28
35
2
10
59
24
25
21
40
34
49
5
15
63
30
11
41
45
24
62
33

Артикул

Название

Примечание

Количество

1

97766C2

HOPPER

W/PRODUCT GRAPHIC, No Longer Available, Order: 97766C5 Hopper Assembly Below, Serial Range: -CKB0030000

2шт.

1

97766C5

HOPPER

W/DECAL, Serial Range: CKB0030001-CBJ0012318

2шт.

1

97766C6

HOPPER

with decal, Start Serial: CBJ0012319

2шт.

2

220321A1

WARNING DECAL

Non-Power Implement

1шт.

3

90948C1

PANEL

outer LH

2шт.

4

90949C1

PANEL

outer RH

2шт.

5

815832C1

PANEL

center partition

2шт.

6

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

7

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

8

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

10

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

16шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

12

9628503

NUT,3/8"-16, G5

1шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

12шт.

14

80682

LOCK WASHER,1/4"

12шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

12шт.

18

811627C2

U-BOLT

us 5/8" 5"w 3 1/2"d

4шт.

19

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

20

90931C1

COVER

hopper 15', Years: -01-JAN-10

2шт.

20

84286041

LID

Hopper 15', Start Year: 01-JAN-10

1шт.

21

815173C1

HINGE

bracket grain lid

14шт.

22

97620C1

SHIM

hinge

14шт.

23

470-12516

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

28шт.

24

80682

LOCK WASHER,1/4"

1шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

28

815174C1

LATCH

grain box lid black

2шт.

29

N32176

SPRING

C .072" wire x .594" od x 3/4" long

4шт.

30

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

31

281010

LOCK NUT,7/8"-14, GC

4шт.

32

815175C1

CLIP

bracket lid latch

4шт.

33

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

34

815176C1

ARM

brace lid prop

4шт.

35

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

12шт.

36

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

4шт.

37

88788

COTTER PIN,3/32" x 1/2"

4шт.

40

398304R1

SPRING

E .051 wire .313 OD 2.14

4шт.

41

815178C1

SPACER

hold lid

4шт.

42

594536R1

BUSHING

3/8"id x 1/2"od x 5/16"lg

8шт.

43

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

44

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

45

9628503

NUT,3/8"-16, G5

8шт.

46

NSS

NOT SOLD SEPARAT

MOULDING, Protective Guard (Order 1330108CX, Serial Range: Cut-Length)

1шт.

48

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

49

80681

LOCK WASHER,5/16"

8шт.

50

9635082

NUT,5/16" - 18, Gr 5

8шт.

55

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

57

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

4шт.

58

280431

NUT,1/2"-13, G5

4шт.

59

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

60

355384A2

FUNNEL

hopper 15" spacing 10'

4шт.

Drills serial number CKB0030001and after

1шт.

60

351150A1

BAFFLE

funnel hopper 15" spacing 15'

8шт.

Drills serial number CKB0030001and after

1шт.

61

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

48шт.

62

7770

NUT,Hex, 1/4 - 20, Cl 5

48шт.

63

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

48шт.

Выбрано товаров: 58
