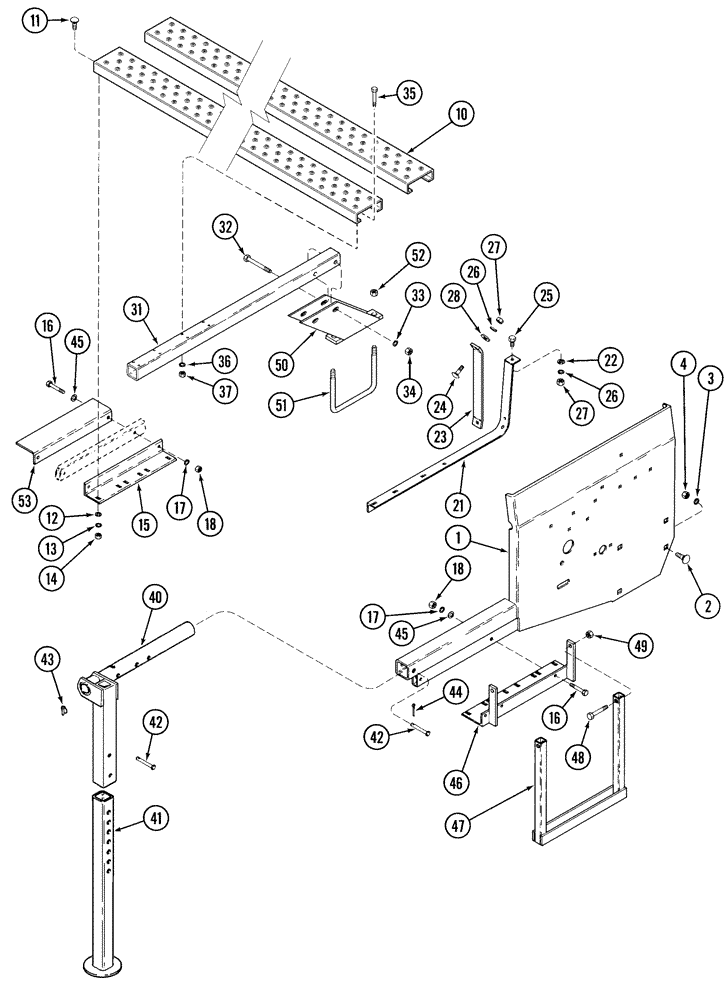

Запчасти Case IH 5500 (9-10) - HOPPER SUPPORTS AND FOOTBOARDS (ASN CKB0030001) (09) - CHASSIS

1

90818C3

BRACKET

end assembly LH

2шт.

1

90819C3

BRACKET

end assembly RH

2шт.

2

280832

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

16шт.

3

12034871

WASHER

5/8"

16шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

10

365617A2

FOOT REST

section footboard 7'

8шт.

11

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

24шт.

11

280827

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

8шт.

12

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

28шт.

13

80681

LOCK WASHER,5/16"

32шт.

14

9635082

NUT,5/16" - 18, Gr 5

32шт.

15

365621A2

ANGLE

footboard

2шт.

16

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

12шт.

17

80681

LOCK WASHER,5/16"

12шт.

18

9635082

NUT,5/16" - 18, Gr 5

12шт.

21

365619A2

SUPPORT

footboard

4шт.

22

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

4шт.

23

1279899C1

BRACKET

Brace flat

4шт.

24

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

27

9628503

NUT,3/8"-16, G5

12шт.

28

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

4шт.

31

365625A2

TUBE,970.6 mm Length

tube center front special

2шт.

32

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

34

280431

NUT,1/2"-13, G5

4шт.

35

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

8шт.

36

80681

LOCK WASHER,5/16"

8шт.

37

9635082

NUT,5/16" - 18, Gr 5

8шт.

40

355428A1

SUPPORT

upper offset RH

1шт.

40

355426A1

SUPPORT

upper offset LH

1шт.

41

1279976C2

SUPPORT

lower stand

1шт.

42

86979987

HEADED PIN,1/2" x 3", G5

4шт.

43

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

44

394818

COTTER PIN,M5 x 25

2шт.

45

495-81122

WASHER,.344" x 1 1/2" x .120"

12шт.

46

365623A2

ANGLE

assy

2шт.

47

127729A1

STEP

ASSY, Years: -01-DEC-99

2шт.

48

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

4шт.

47

351147A1

STEP

, Start Year: 01-JAN-00

2шт.

49

86992215

LOCK NUT,1/2"-13, GC

4шт.

50

177731A1

SUPPORT

Center Footboard

2шт.

51

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

52

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

53

178826A2

PLATE

center footboard

2шт.
