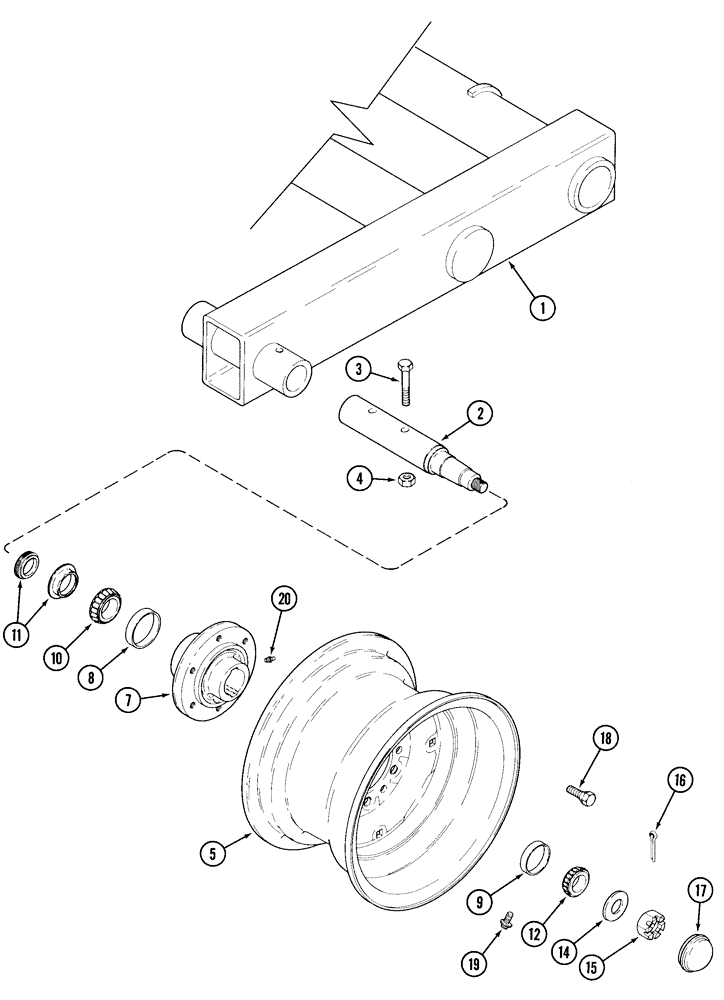

Запчасти Case IH 5500 (9-04) - WHEEL ASSEMBLY, CART (09) - CHASSIS

1

REF

INSTRUCTION

Frame, Cart

1шт.

2

1337412C1

SPINDLE

2-1/8" x 13" long with nut

4шт.

3

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

4

86992215

LOCK NUT,1/2"-13, GC

4шт.

5

1277504C1

RIM

WHEEL 15 x 10 6 hole +1 1/4" offset

4шт.

7

606468R21

HUB

6 bolt c/w cups only

4шт.

7

NSS

NOT SOLD SEPARAT

HUB, Wheel

1шт.

8

663558R1

BEARING CUP

#LM501310

1шт.

Included in repair kit 123096A2

1шт.

9

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

Included in repair kit 123096A2

1шт.

10

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

4шт.

Included in repair kit 123096A2

1шт.

11

606556R91

OIL SEAL

W/SLEEVE, OIL No Longer Available, Order 594702R91 and 594703R1 Below

4шт.

11

594702R91

SEAL

2" x 2 13/16"od

4шт.

Included in repair kit 123096A2

1шт.

11

594703R1

SLEEVE

wear 3 1/4" flange od

4шт.

Included in repair kit 123096A2

1шт.

12

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

4шт.

Included in repair kit 123096A2

1шт.

14

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

4шт.

15

70120D

SLOTTED NUT,7/8"-14

4шт.

16

432-832

COTTER PIN,1/8" x 2"

4шт.

17

224066C1

HUB CAP

dust 2 21/64" od

4шт.

18

277538A1

BOLT,1/2" - 20 x 1.42"

hex conical, 1/2"-20 x 1 5/32"

24шт.

19

810769C1

VALVE

tire stem VS/936

4шт.

20

87414

LUBE NIPPLE,1/4" - 28

4шт.

100

123096A2

WHEEL BEARING KIT

PACKAGE, FRONT HEAVY DUTY

4шт.
