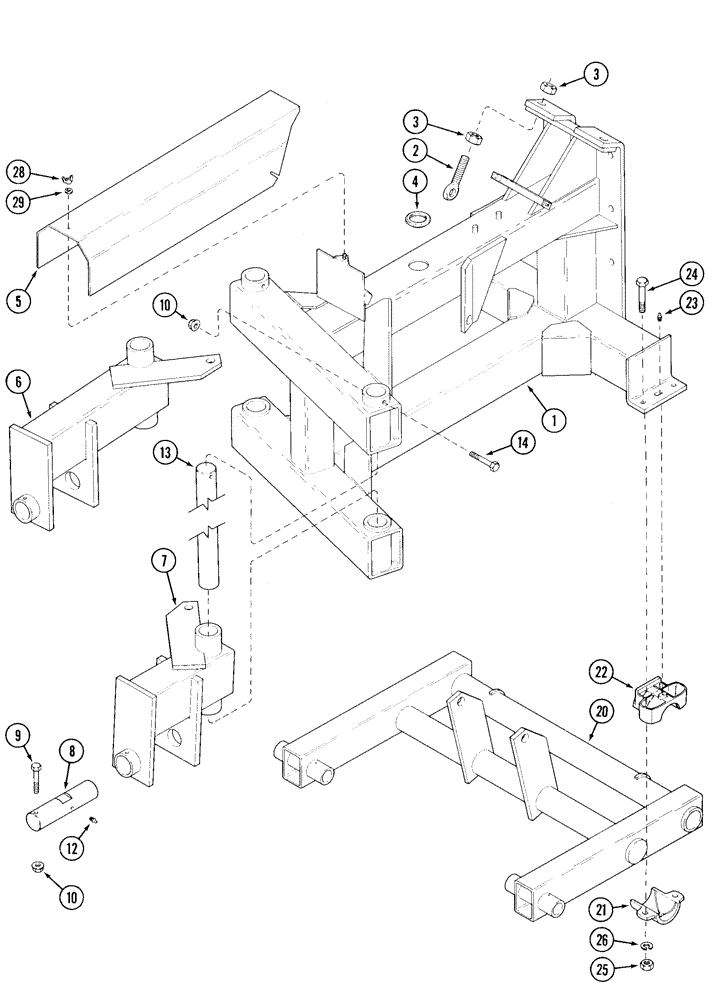

Запчасти Case IH 5500 (9-02) - MAIN FRAME, CART (09) - CHASSIS

1

254246A2

FRAME

Cart

1шт.

2

1973136C1

EYEBOLT

BOLT, EYE 1.25 UNC X 10.44 YZD 8.94'' LG THREAD, 1.26 EYELET

2шт.

3

9849649

NUT,1 1/4"-7, G5

4шт.

4

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

3шт.

5

1980772C1

SHIELD

Valve

1шт.

5

192849A2

DECAL

case ih - 8mm logo

1шт.

6

1973191C2

PIVOT

LH

1шт.

Ref. 6 has zerk fitting one each end. The size of the zerk is .374" (9.50mm). bj 4-1-96 Note: Ref. #6, some units may have had this pivot made wrong, see service letter NSE SL 00 2-96 for pin numbers effected.

1шт.

7

1973190C3

PIVOT

RH

1шт.

8

1973224C3

PIN

3" x 12 3/8"

2шт.

9

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

10

85700693

NUT,5/8" - 11, Gr C

4шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

6шт.

13

1973357C2

PIN,76.2mm OD x 856mm L

3 OD X 33.7LG ZETEC CTG

2шт.

14

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

20

1973158C2

FRAME

wheel 5500

1шт.

21

251153A1

BEARING CAP,73 mm

wheel shaft bearing

2шт.

22

251151A1

BEARING CAP

bearing wheel shaft

2шт.

23

87414

LUBE NIPPLE,1/4" - 28

4шт.

24

413-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 5

4шт.

25

9849647

NUT,7/8"-9, G5

4шт.

26

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

28

80801

WING NUT

5/16"-18

3шт.

29

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.
