(8-32) - MARKER CONTROL VALVE (ASN CBJ025392)

Запчасти Case IH 5500 (8-32) - MARKER CONTROL VALVE (ASN CBJ025392) (08) - HYDRAULICS

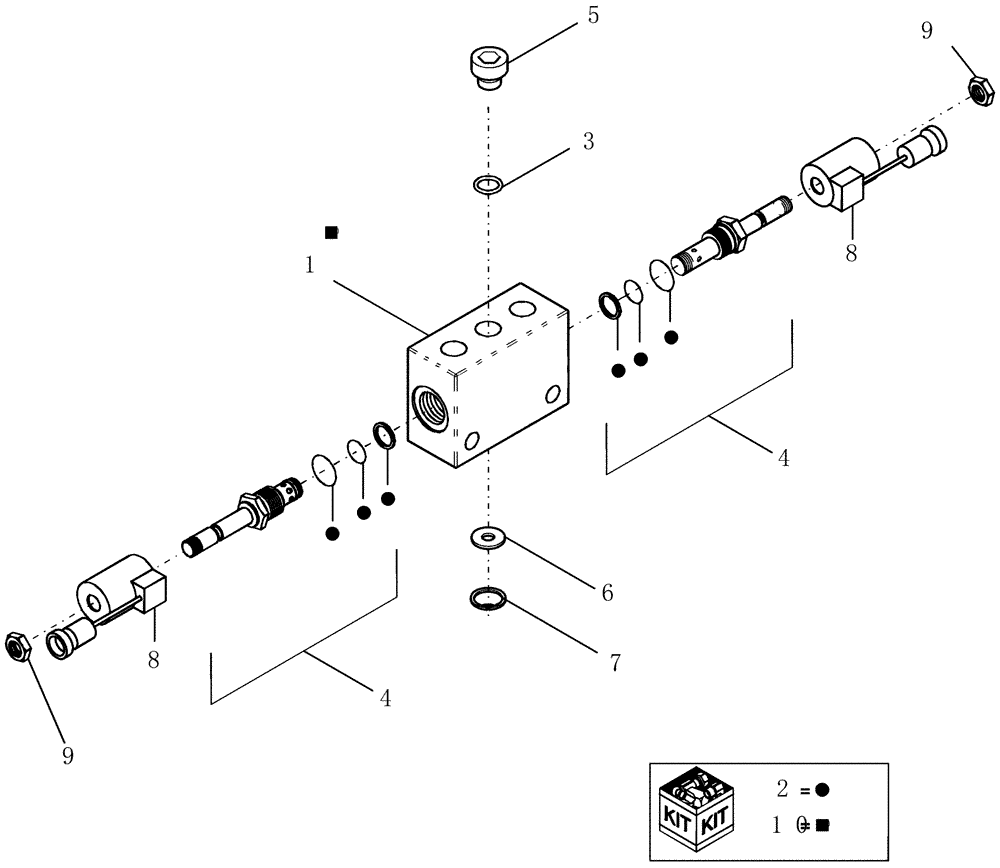

Схема запчастей Case IH 5500 - (8-32) - MARKER CONTROL VALVE (ASN CBJ025392) (08) - HYDRAULICS
5
8
10
4
7
10
2
10
6
2
4
2
9
2
2
9
2
3
1
8
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

149988C92

VALVE

assembly

1шт.

1

145317C2

VALVE BODY

assembly

1шт.

2

126054A1

SEAL PACKAGE

flow control

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

93210C1

VALVE

cartridge

2шт.

5

NSS

NOT SOLD SEPARAT

Plug, Includes O-ring, 9/16-18 inch, Boss

1шт.

6

126158A1

ORIFICE

disk .110" & .042"

1шт.

7

100-2175

SNAP RING,0.75", Int, #75

1шт.

8

87436628

SOLENOID

coil, with cannon connector

2шт.

9

73113425

NUT

1/2"-20, Thin

2шт.

10

145316C1

REPAIR KIT

seal, valve assembly

1шт.
