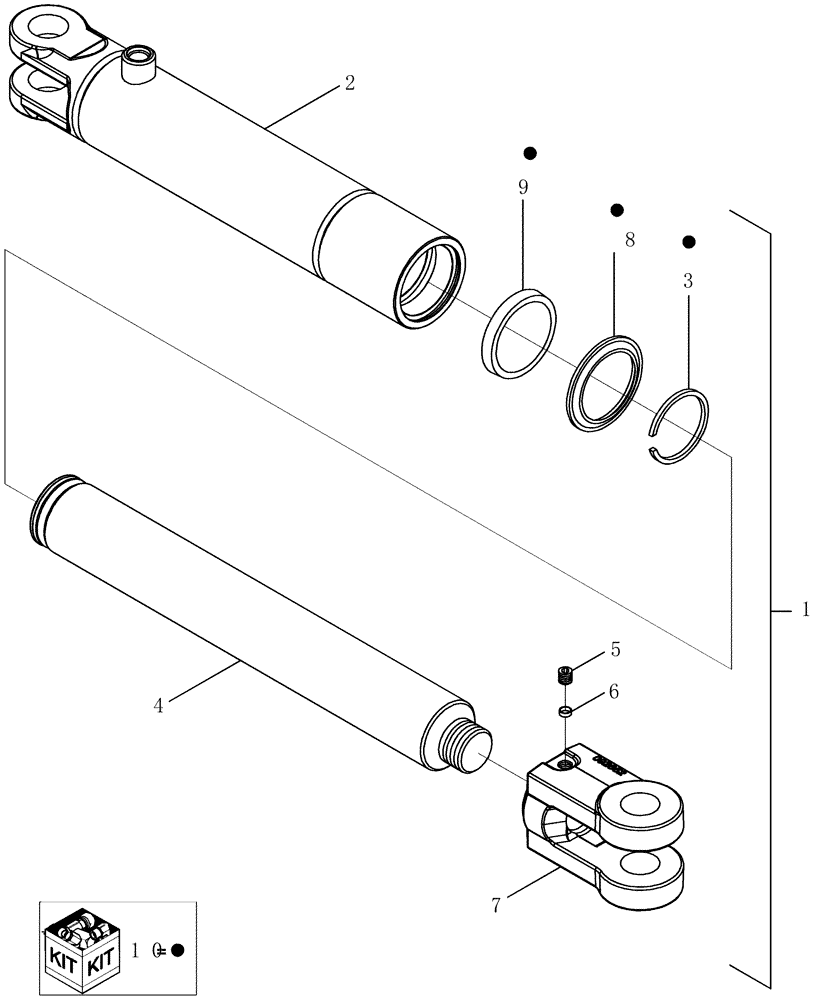

Запчасти Case IH 5500 (8-26) - MARKER LIFT CYLINDER - 86991778 (4TH DATE RANGE) (08) - HYDRAULICS

1

86991778

HYDRAULIC CYLINDER

2" x 8", 3000 psi, no pins, single acting, Years: 11-MAR-03-31-JUL-03, Start Serial: CBJ0001935

1шт.

2

87409501

BARREL,2.25" ID

cylinder with clevis 2 1/4" bore

1шт.

3

87409509

RING

retaining, hyd cylinder

1шт.

Included in repair kit 87405837

1шт.

4

87409505

PISTON ROD

2" Nitrosteel

1шт.

5

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

7

87409500

CLEVIS

cylinder rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL WIPER ROD

1шт.

Included in repair kit 87405837

1шт.

9

NSS

NOT SOLD SEPARAT

HALLITE ROD SEAL

1шт.

Included in repair kit 87405837

1шт.

10

87405837

SEAL KIT

hyd cylinder 2 1/4" Monarch with 2" rod

1шт.

Includes Refs. 3, 8 & 9

1шт.
