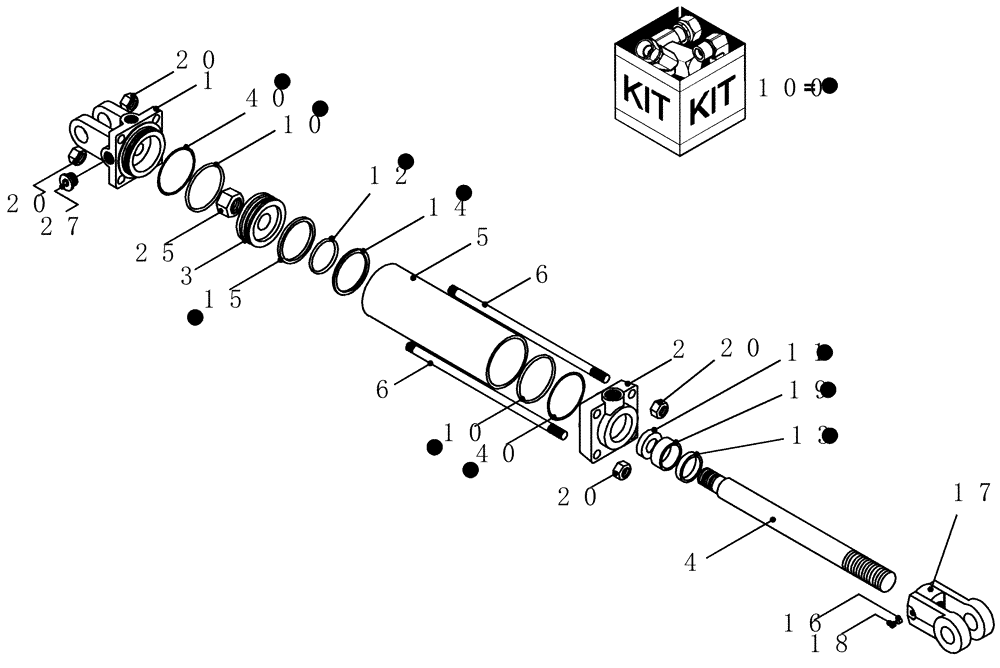

Запчасти Case IH 5500 (8-18) - HYDRAULIC CYLINDER, 86991623, DRIVE/GAUGE WHEEL LIFT AND CART WHEEL LIFT (2ND DATE RANGE) (08) - HYDRAULICS

0

86991623

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 1/2" x 16" 3000 psi, no pins, Start Year: 01-JAN-04

1шт.

1

87409446

HEAD

cylinder base 3 1/2" bore

1шт.

2

87409417

HEAD

cylinder front 3 1/2" bore x 1 1/2" rod

1шт.

3

87409469

PISTON

cylinder 3 1/2" bore

1шт.

4

87409464

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409492

THREADED TIE-ROD

hyd cylinder

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87409039

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87409039

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87409039

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87409039

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87409039

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87409039

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409390

CLEVIS,1 -1/2" - 12

cylinder rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87409039

1шт.

100

87409039

SEAL KIT

hydraulic cylinder 3 1/2" Monarch 1 1/2" rod

1шт.

Includes Refs. 10 - 15 & 40

1шт.
