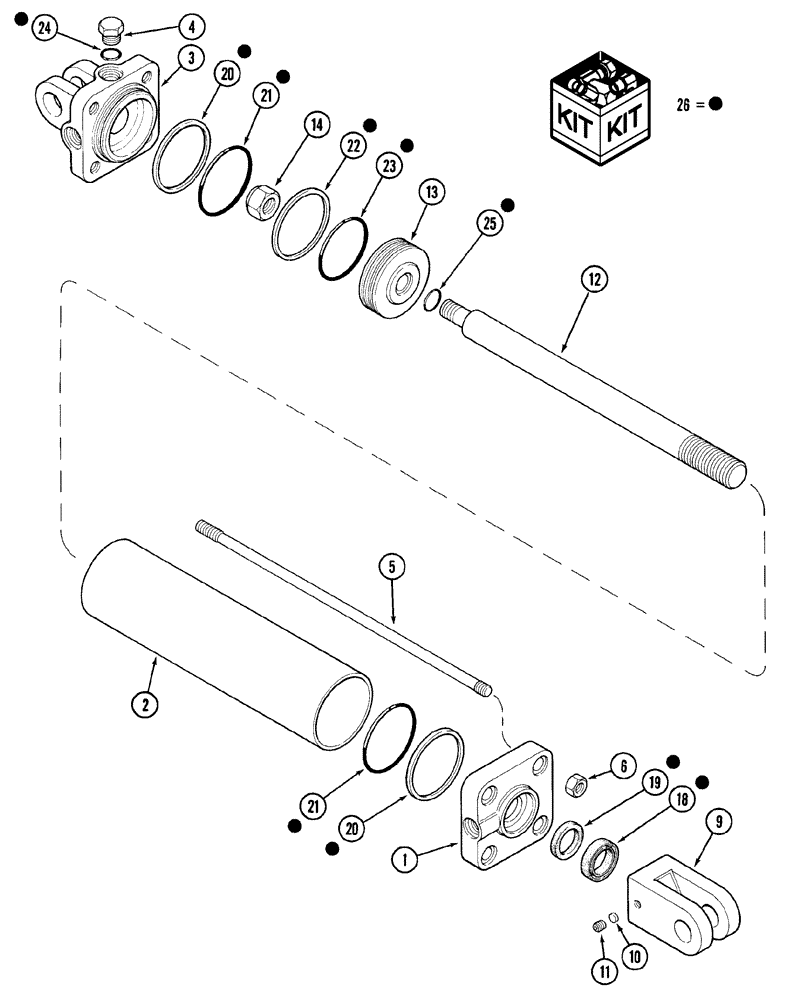

Запчасти Case IH 5500 (8-10) - HYDRAULIC CYLINDER, 1282329C91, CART WING FOLD (1ST DATE RANGE) (08) - HYDRAULICS

0

1282329C91

HYDRAULIC CYLINDER

4" x 16", Years: -06-JUL-01

1шт.

1

1282337C1

GLAND

4" Iowa

1шт.

2

NSS

NOT SOLD SEPARAT

BODY Cylinder

1шт.

3

1282336C1

HEAD

cylinder clevis cap 4" Iowa

1шт.

4

214389

PLUG,3/4" - 16 ORB

1шт.

5

145251C1

THREADED ROD,5/8" - 11 x 539mm

bolt hyd cylinder tie

4шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

9

145240C1

CLEVIS,1 -1/2" - 12

end, rod

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

11

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

12

1263346C1

ROD ASSY.

1шт.

13

149930C2

PISTON

cylinder, 4" bore, Iowa

1шт.

14

281010

LOCK NUT,7/8"-14, GC

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL U-Cup, Rod

1шт.

Included in repair kit 79979C3

1шт.

19

NSS

NOT SOLD SEPARAT

WIPER, Rod

1шт.

Included in repair kit 79979C3

1шт.

20

NSS

NOT SOLD SEPARAT

RING Backup

2шт.

Included in repair kit 79979C3

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, Cylinder Head

2шт.

Included in repair kit 79979C3

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL Piston

1шт.

Included in repair kit 79979C3

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING Piston

1шт.

Included in repair kit 79979C3

1шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Included in repair kit 79979C3

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING, Piston Rod

1шт.

Included in repair kit 79979C3

1шт.

26

79979C3

SEAL KIT

cylinder repair

1шт.
