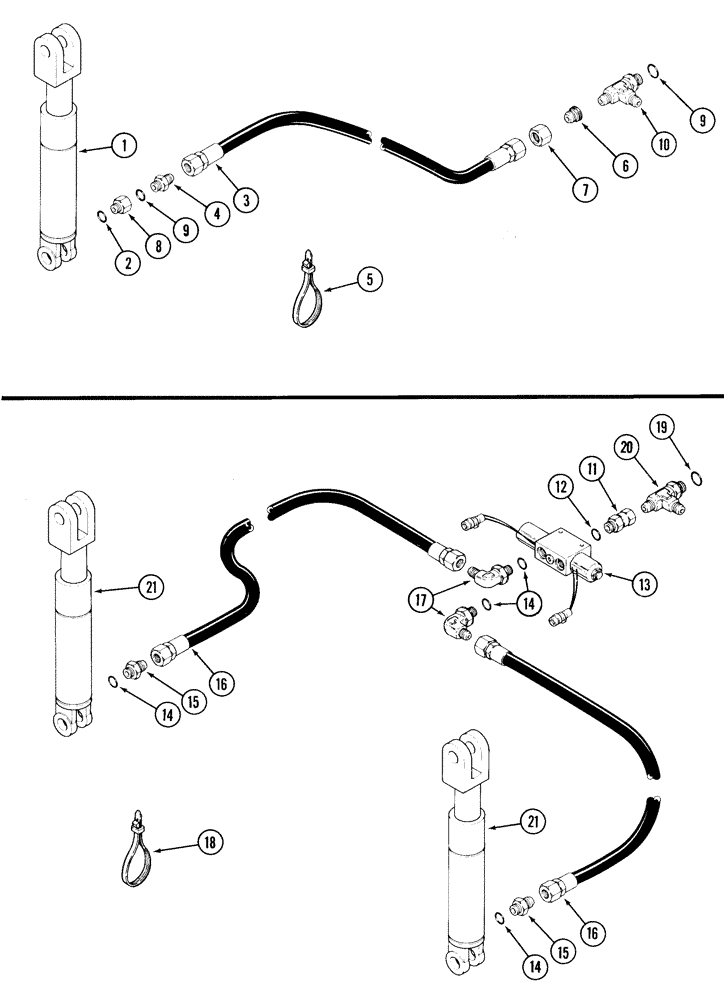

Запчасти Case IH 5500 (8-08) - MARKER HYDRAULICS, SINGLE MARKER - LEFT, MARKER HYDRAULICS, ELECTRONIC SELECTOR (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSY., Marker Lift

1шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

1284316C1

HYDRAULIC HOSE,6.35 mm ID x 6475.00 mm

1шт.

4

1263477C3

HYD CONNECTOR

union restrictor

1шт.

5

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

4шт.

6

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

1шт.

7

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

1шт.

8

1958260C1

ADAPTER

expander

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

11

1263944C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 JIC

5/8" MJ 1/2" FJX

1шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

149988C92

VALVE

assembly

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

15

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

16

1284316C1

HYDRAULIC HOSE,6.35 mm ID x 6475.00 mm

2шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

18

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

8шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

21

REF

INSTRUCTION

CYLINDER ASSY., Marker Lift

2шт.
