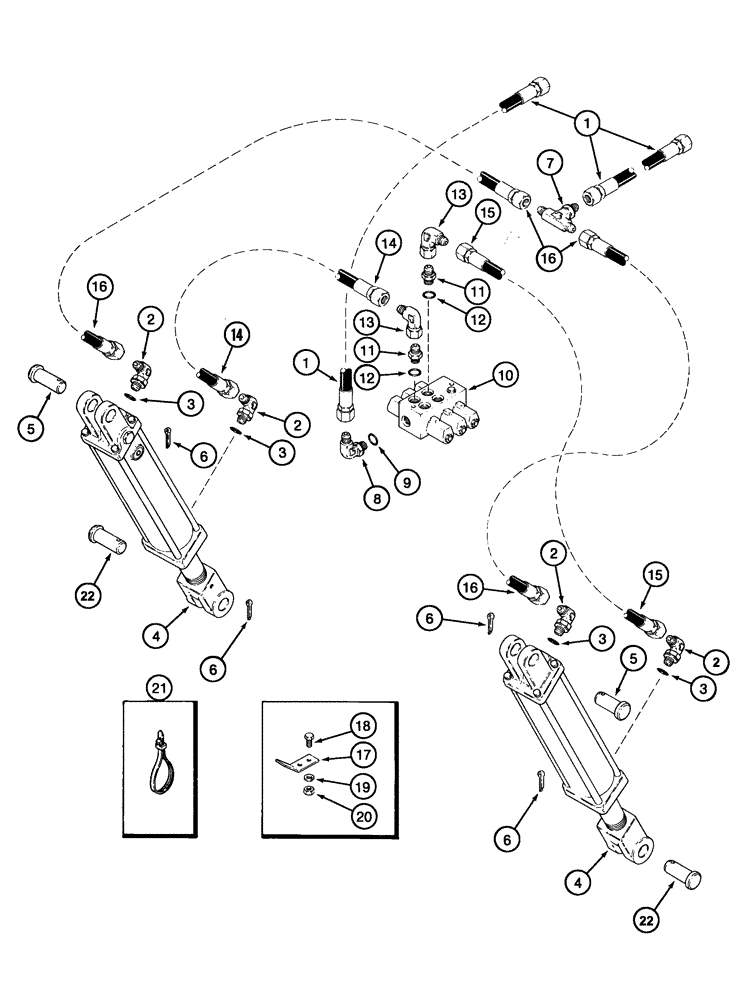

Запчасти Case IH 5500 (8-06) - HYDRAULIC LIFT SYSTEM, DRIVE/GAUGE WHEEL CIRCUIT (08) - HYDRAULICS

1

1337374C1

HYDRAULIC HOSE

1/2" x 270" fl

2шт.

2

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

4шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

1282326C92

HYDRAULIC CYLINDER

3 1/2" x 16" 3000 psi, no pins, Years: -31-DEC-03

2шт.

4

86991623

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 1/2" x 16" 3000 psi, no pins, Start Year: 01-JAN-04

2шт.

5

145282C1

CLEVIS PIN

hardened 31.52mm x 84mm long

2шт.

6

88182

COTTER PIN,1/4" OD x 2" L

4шт.

7

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

1шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

93188C1

VALVE

hyd 2 way solenoid

1шт.

10

86508168

SEAL KIT

Relief Valve

1шт.

10

93209C1

KIT

solenoid

1шт.

10

87436627

VALVE

assembly 2 way cartridge

1шт.

11

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

14

129764C2

HYDRAULIC HOSE

3/8" x 215" fl

1шт.

15

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" x 185" fl

1шт.

16

129765C2

HYDRAULIC HOSE

3/8" x 200" fl

2шт.

17

1985955C1

SUPPORT

bracket hose bent

10шт.

18

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

19

80681

LOCK WASHER,5/16"

10шт.

20

9635082

NUT,5/16" - 18, Gr 5

10шт.

21

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

22

87501610

HEADED PIN

31.5 mm x 80.13 mm ul

2шт.
