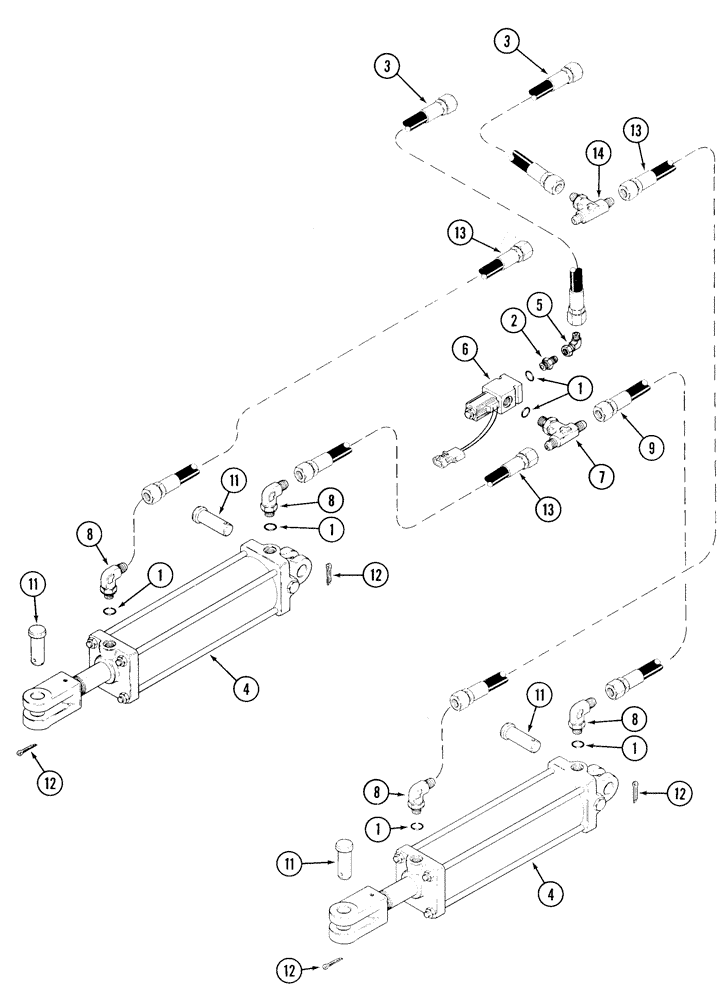

Запчасти Case IH 5500 (8-02) - HYDRAULIC SYSTEM, FOLD CIRCUIT (08) - HYDRAULICS

1

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

2

95750C1

HYD CONNECTOR

1/2" mb x 3/8" mj .053 orifice

1шт.

3

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

2шт.

4

1282329C91

HYDRAULIC CYLINDER

4" x 16", Years: -06-JUL-01

2шт.

4

414702A1

HYDRAULIC CYLINDER

4" x 16" 3000 psi without pins, Years: 07-JUL-01-31-DEC-03

2шт.

4

86989789

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

4" x 16", 3000 psi, no pins, Start Year: 01-JAN-04

2шт.

5

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

6

1954190C1

SOLENOID VALVE

two way normally closed

1шт.

6

1272308C1

SEAL KIT

SEAL

1шт.

6

93209C1

KIT

solenoid

1шт.

6

93210C1

VALVE

cartridge

1шт.

7

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

4шт.

9

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

1шт.

11

145282C1

CLEVIS PIN

hardened 31.52mm x 84mm long

4шт.

12

88182

COTTER PIN,1/4" OD x 2" L

4шт.

13

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

3шт.

14

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.
