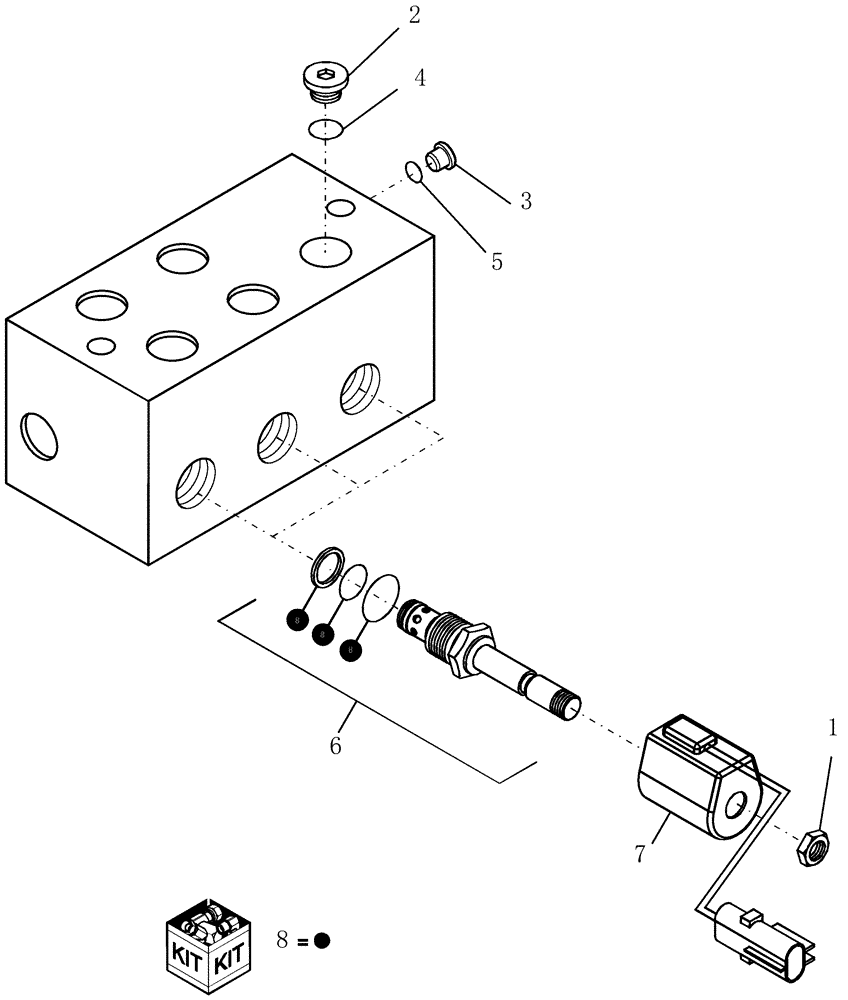

Запчасти Case IH 5500 (4-26) - SOLENOID VALVE 93188C1 DETAILS (04) - ELECTRICAL SYSTEMS

0

93188C1

VALVE

hyd 2 way solenoid

1шт.

1

73113425

NUT

1/2"-20, Thin

6шт.

2

87035062

PLUG,Hex, 1/2"-20 ORB

3шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

4

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

3шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

87436627

VALVE

assembly 2 way cartridge

6шт.

7

93209C1

KIT

solenoid

6шт.

8

86508168

SEAL KIT

Relief Valve

6шт.
