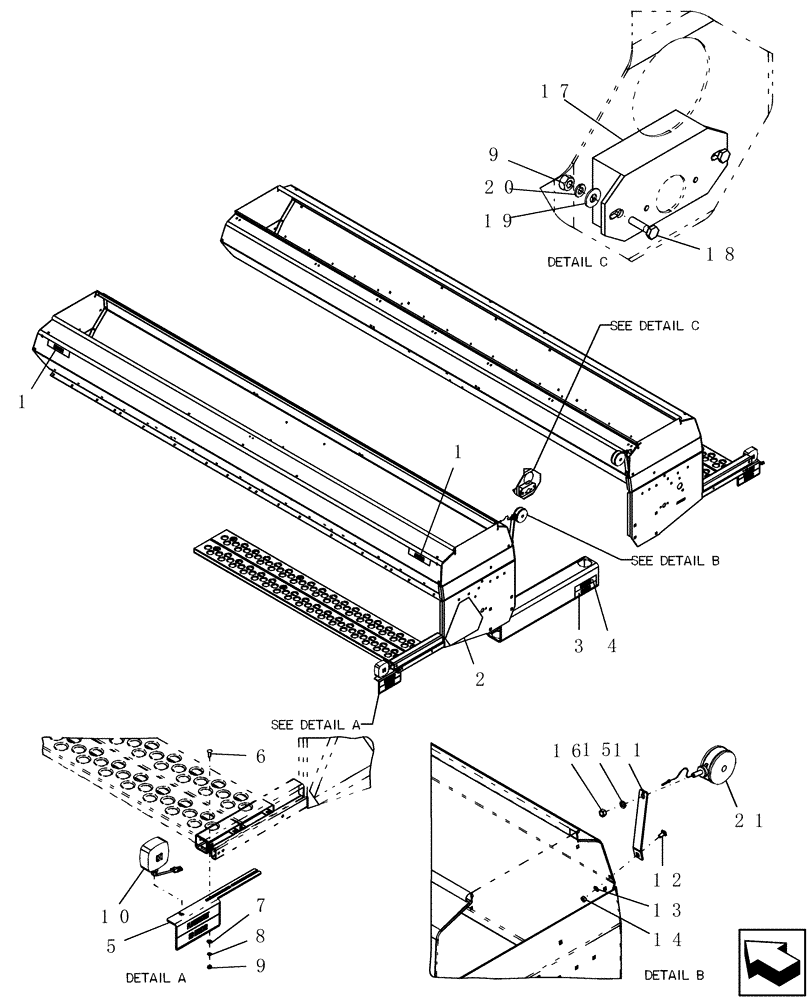

Запчасти Case IH 5500 (4-22) - SAFETY LIGHT SYSTEM (04) - ELECTRICAL SYSTEMS

1

22903

DECAL

retroreflective amber 2" x 9"

6шт.

2

311858A1

DECAL

SMV Emblem

1шт.

3

22902

DECAL

retroreflective red 2" x 9"

3шт.

4

51200094

DECAL

fluorescent red orange

3шт.

5

87416668

BRACKET

warning light, long LH

1шт.

5

87416654

BRACKET

warning light, long RH

1шт.

6

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

7

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

8

80681

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

8шт.

10

192052A1

REPAIR KIT

warning light (2 wire), Years: -01-SEP-05

2шт.

Shown

1шт.

10

87564157

WARNING LIGHT

assembly amber, Start Year: 01-OCT-05

2шт.

Not Shown

1шт.

11

87415972

BRACKET

warning light

2шт.

12

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

14

9628503

NUT,3/8"-16, G5

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

16

280431

NUT,1/2"-13, G5

2шт.

17

86561136

MODULE

implement lighting control

1шт.

18

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

19

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

20

80682

LOCK WASHER,1/4"

2шт.

21

51200040

LIGHT

assy. stop tail/signal red

1шт.

Includes 6815 and 86537133

1шт.

21

6815

LENS

red

1шт.

21

86537133

BULB,C6, #1157, 12.8V

1шт.

21

84129422

BULB

Double Contact, 1156DC

1шт.

100

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

100

370383R1

CLIP

j 1/2" cable 90°

2шт.

100

87430584

HARNESS

safety lighting fold 5500

1шт.

100

87430583

HARNESS

safety lighting hitch 5500

1шт.
