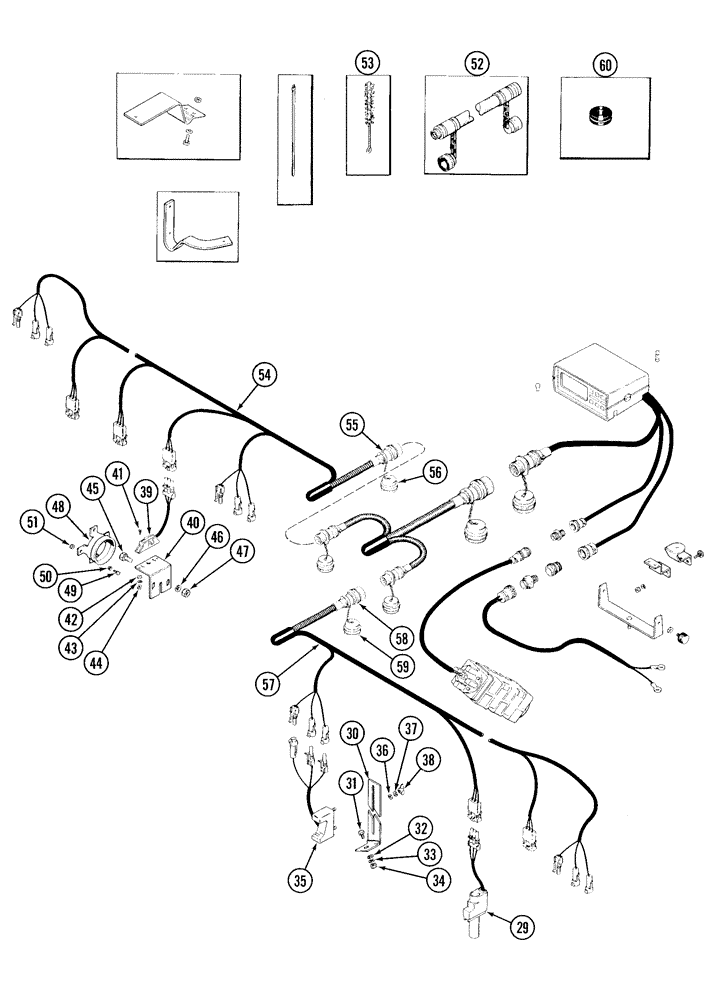

Запчасти Case IH 5500 (4-20) - PLANTING MONITOR, EARLY RISER - CONTINUED (04) - ELECTRICAL SYSTEMS

29

1978894C1

SENSOR

HI RATE

24шт.

29

147237C1

PLASTIC-RUBBER TUBE

sensor dummy black - packaged

1шт.

30

134175A1

BRACKET

HOPPER LEVEL SENSOR

1шт.

31

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

32

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

33

80681

LOCK WASHER,5/16"

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

1336023C2

SENSOR

hopper level

1шт.

36

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

37

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

38

129-900

WING NUT,Locking, #10-32

1шт.

39

1336025C2

SENSOR

DISTANCE

1шт.

40

1264112C2

BRACKET

MOUNTING

1шт.

41

281007

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"

2шт.

42

495-31016

WASHER,#6

4шт.

43

493-11014

LOCK WASHER,Ext-Int Tooth, #6

2шт.

44

88458

NUT,#6 - 32, Gr 5

2шт.

45

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

47

280431

NUT,1/2"-13, G5

1шт.

48

1264113C1

MAGNET

1шт.

49

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

50

1264197C1

WASHER

STEP

4шт.

51

9635082

NUT,5/16" - 18, Gr 5

4шт.

52

1336017C4

HARNESS

15 FT EXTENSION CABLE

1шт.

53

128817C1

BRUSH, COMMUTATOR

BRUSH SENSOR CLEANING

1шт.

54

144679A1

HARNESS

ASSY, L.H. DRILL

1шт.

55

ZJI1400004

TOOL KIT

ELECTRICAL

1шт.

55

225336C1

ELEC CONNECTOR,Male, 35 Pin

TYPE LU DEUTSCH HDB3

1шт.

56

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

57

144687A1

HARNESS

ASSY, R.H. DRILL

1шт.

58

225336C1

ELEC CONNECTOR,Male, 35 Pin

TYPE LU DEUTSCH HDB3

1шт.

59

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

60

1279331C1

GROMMET

1шт.
