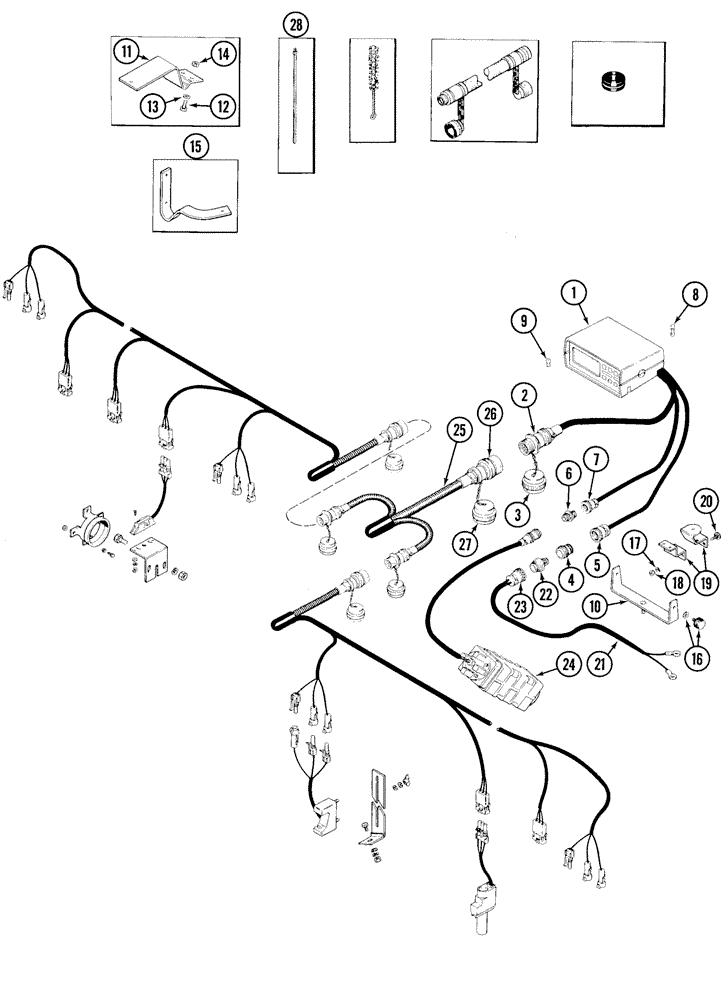

Запчасти Case IH 5500 (4-18) - PLANTING MONITOR, EARLY RISER (04) - ELECTRICAL SYSTEMS

1

1336000C2

CONTROL

CONSOLE EARLY RISER MONITOR

1шт.

1

1935062C2

REMAN-ELECT GAUGE

CONSOLE, REMANUFACTURED

1шт.

1

1935063C2

CORE-MONITOR

CONSOLE

1шт.

2

ZJI1400004

TOOL KIT

ELECTRICAL

1шт.

2

225337C1

ELEC CONNECTOR,20 - 22

TYPE LV DEUTSCH HD34

1шт.

Part of Harness Repair Tool Kit P/N ZJI1400004

1шт.

3

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

Part of Harness Repair Tool Kit P/N ZJI1400004

1шт.

4

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

plastic 3c plug

1шт.

Part of Harness Repair Tool Kit P/N ZJI1400004

1шт.

5

225141C1

MULTIPOLE CONNECTOR

TYPE GK AMP# 206322-

1шт.

Part of Harness Repair Tool Kit P/N ZJI1400004

1шт.

6

1994740C1

ELEC CONNECTOR,Female, 4 Pin

TYPE MD AMP# 206430-

1шт.

Part of Harness Repair Tool Kit P/N ZJI1400004

1шт.

7

1994741C1

CONTACT HOUSING

TYPE MC AMP# 206358-

1шт.

Part of Harness Repair Tool Kit P/N ZJI1400004

1шт.

8

86705048

FUSE,5 Amp, Type 3AG

2шт.

9

D71346

TAIL LAMP,12V

#168-14V-3CP

2шт.

10

1261523C91

BRACKET

MOUNTING

1шт.

11

90905C2

BRACKET, SUPPORTING

MOUNTING - CASE

1шт.

12

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

13

28588R1

WASHER

.344 X .688 X .05 PLN

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

1960456C1

BRACKET

MOUNTING - 7100

1шт.

15

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

15

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

15

232-4114

LOCK NUT,1/4"-20, GC

2шт.

16

1336002C1

KNOB

PACKAGE, W/WASHERS - 2 PER BAG

1шт.

17

392-11031

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

1261522C91

BRACKET, SUPPORTING

MOUNTING - IH

1шт.

20

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

21

1336001C2

CABLE

BATTERY

1шт.

22

225362C1

TERMINAL CONNECTOR

TYPE ME ITT# 192991-

1шт.

Part of Harness Repair Tool Kit P/N ZJI1400004

1шт.

23

225141C1

MULTIPOLE CONNECTOR

TYPE GK AMP# 206322-

1шт.

24

NSS

NOT SOLD SEPARAT

SENSOR, True Ground Speed (Order From Machinery Price Book, Part Number 97576C1)

1шт.

25

144423A1

HARNESS

ASSY, EARLY RISER

1шт.

26

225336C1

ELEC CONNECTOR,Male, 35 Pin

TYPE LU DEUTSCH HDB3

1шт.

Part of Harness Repair Tool Kit P/N ZJI1400004

1шт.

27

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

28

217285C1

STRAP

WRAP 4 IN.

1шт.

28

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

28

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
